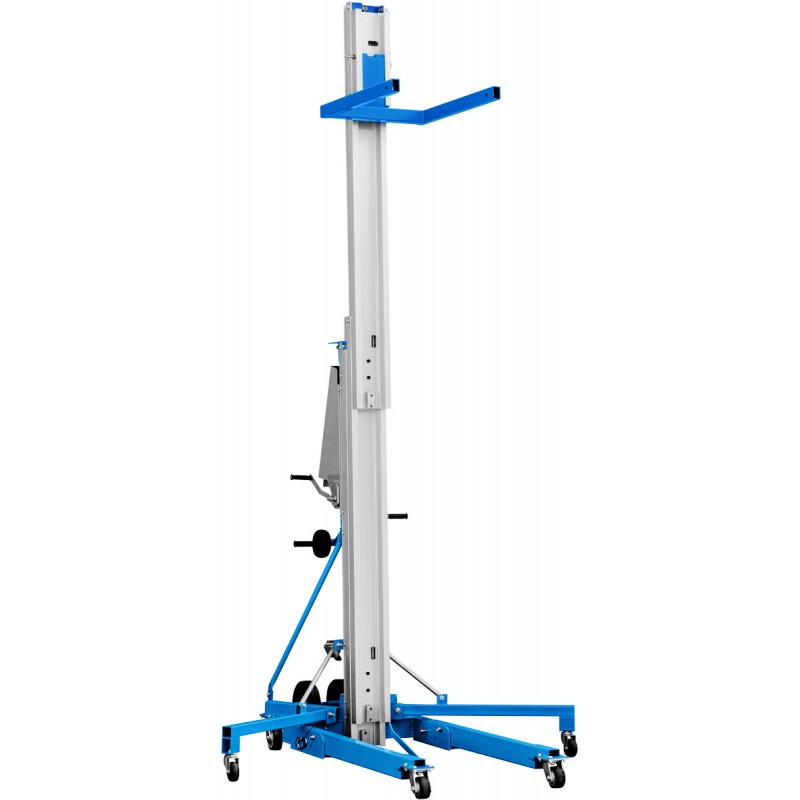

A compact material lift with large wheels, a stable base and durable forks allows easy manoeuvring and safe handling of heavy loads. The three-section mast with locking mechanism and a winch unit with self-locking brake ensure safety and stability during operation. It is used in warehousing, industry, construction, retail and logistics. This is a reliable solution for efficient and safe lifting of goods to heights of up to five metres, improving productivity across a wide range of applications.
Compact material lift is an indispensable tool for lifting and handling heavy loads in warehouses, on construction sites, in distribution centres and during industrial installations. With a load capacity of 300 kg and the ability to lift loads to a height
The device has been designed for intensive use and ergonomic operation. The three-section telescopic mast provides compact transport dimensions while still allowing a full working height of up to 5 m. The mast sections operate smoothly and safely together, while the locking system ensures full control of the load at every stage of operation.

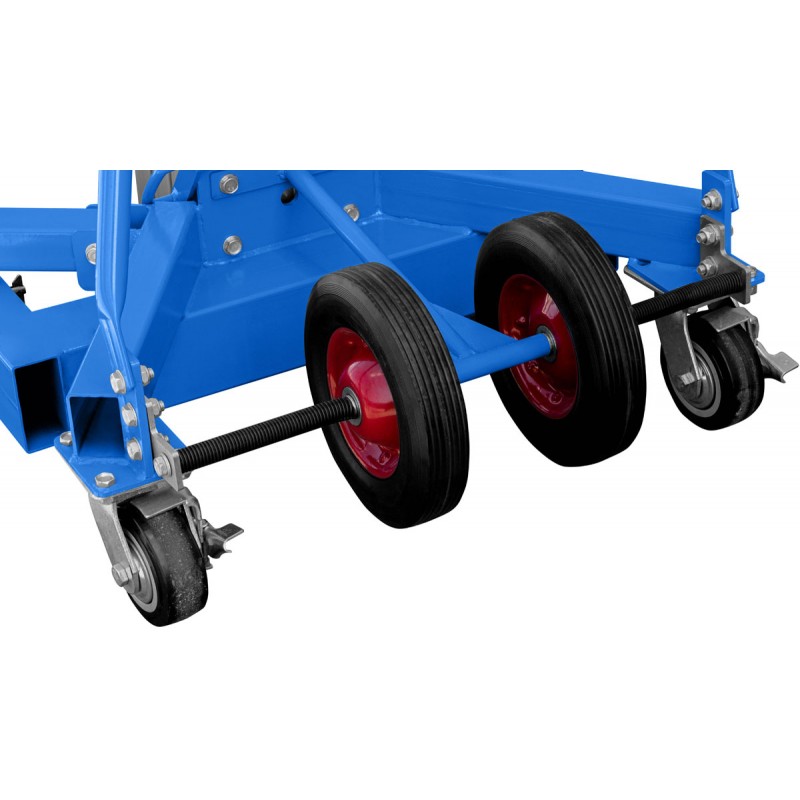

Robust forks provide secure support for a wide range of loads, allowing even load distribution. This is particularly important when handling installation equipment or construction materials. Large-diameter wheels and self-deploying running gear enable efficient movement of the lift, even on uneven ground and in confined working areas.
The lift is equipped with a comprehensive set of safety systems, including:
The device is designed for single-operator use, making it suitable for locations without dedicated installation teams or additional support. Precise mast movement and ergonomic controls allow safe operation even without specialist training.
The compact material lift is a versatile tool suitable for many industries:
This compact material lift is a proven and safe solution for daily lifting, handling and installation tasks. Thanks to its advanced design, high-quality materials and carefully engineered ergonomics, the device delivers reliability, efficiency and maximum safety in both warehouse environments and on construction sites. It is an investment that improves operational efficiency and optimises working time.
Contact us or order online to provide your business with professional support for handling and installation tasks.
| Lifting height | 5,000 mm |
| Fork length | 690 mm |
| Height of folded lift | 2,000 mm |
| Length in folded / extended position | 740 / 1,880 mm |
| Width / with stabilisers extended | 800 / 1,850 mm |
| Ground clearance | 50 mm |
| Minimum fork height | 150 mm |
| Weight | 145 kg |
| Maximum load capacity | 300 kg |
| Load capacity depending on load centre distance: | |
| up to 60 cm | 300 kg |
| up to 80 cm | 250 kg |
| up to 100 cm | 150 kg |
