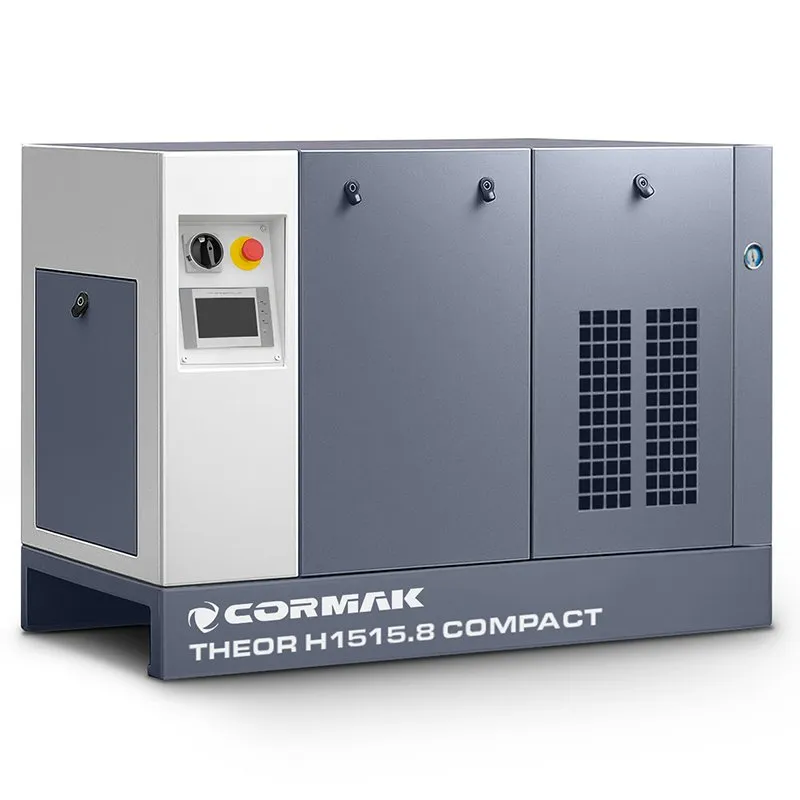

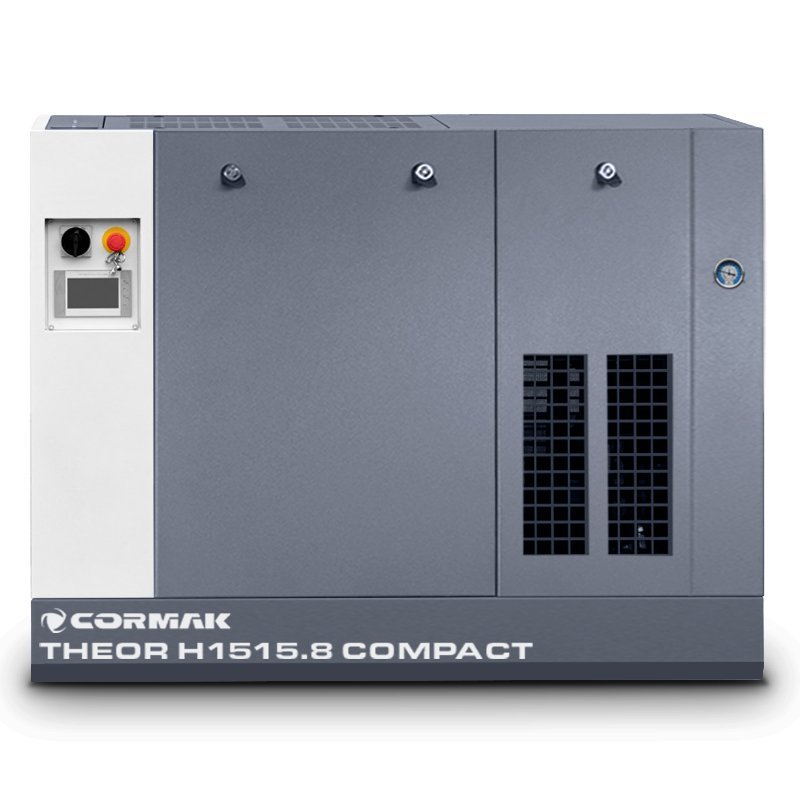

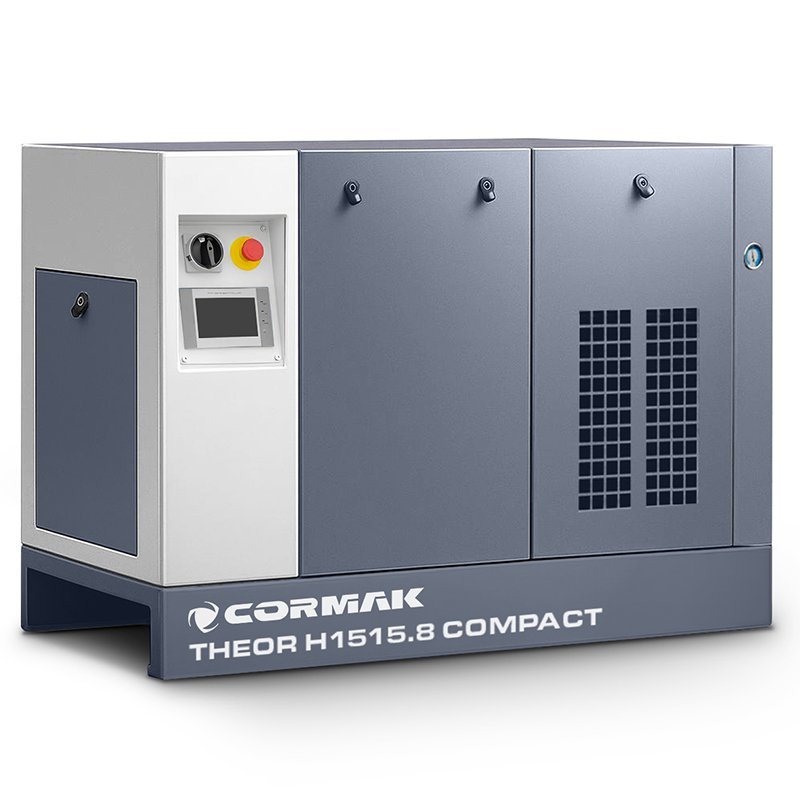

The CORMAK THEOR H1515.8 COMPACT series screw compressor with integrated dryer combines the latest pneumatic technology with high-quality materials and components. Low operating costs, ease of use, ergonomic and robust design, and high performance ensure efficient and trouble-free operation.
Looking for a professional and compact solution to power your FIBER laser cutter? The CORMAK THEOR H1515.8 Compact screw compressor is an excellent choice, designed for precise laser cutting. With a power of 15 kW and an actual capacity of up to 1,700 l/min, it ensures stable and reliable compressed air supply – essential for efficient laser system operation.
The THEOR H1515.8 Compact screw compressor achieves a maximum working pressure of 14 bar, enabling effective cutting of various materials. The intuitive MAM electronic control panel allows full control of the machine’s operation, enabling easy monitoring and adjustment of settings.
✅ Pressure: up to 14 bar | ✅ Capacity: up to 1,700 l/min | ✅ Power: 15 kW
Need solutions that exceed market standards? CORMAK compressors are synonymous with innovation and reliability, designed for demanding applications such as precision laser cutting.
Advanced engineering, European precision manufacturing, and a modern, durable housing ensure longevity and reliability in all conditions.
The COMPACT version with integrated dryer saves space and offers a comprehensive solution in one device.
Extremely low noise levels thanks to sound and vibration reduction systems ensure comfortable working conditions.

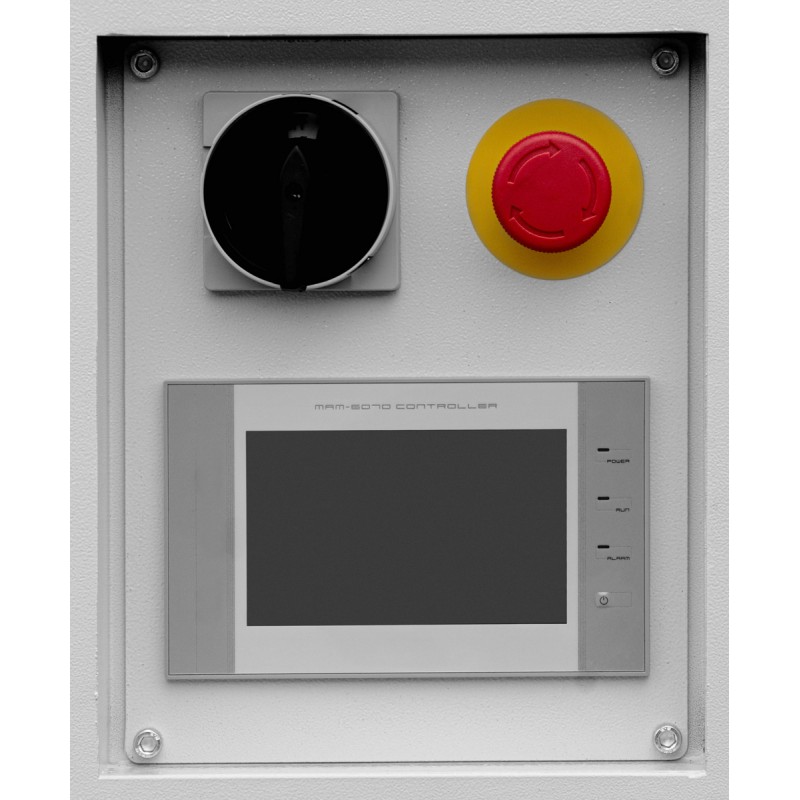

The MAM electronic panel provides advanced parameter monitoring, service scheduling, and diagnostics with remote access capability.
CORMAK screw modules provide high performance, durability, and precision – essential in the laser industry.
The two-stage drying system effectively removes moisture and protects the pneumatic installation. The variable-speed fan automatically adjusts cooling performance to working conditions, allowing energy savings.
Additionally, the dryer features a double filtration system: a pre-filter with 3.0 µm accuracy that removes larger solid contaminants and a fine filter with 0.1 µm accuracy that captures fine oil particles (aerosols) and other impurities, ensuring the highest purity of compressed air.
The set includes full registration documentation:
Buying from us means choosing a manufacturer with many years of experience!
| Parameter | Value |
|---|---|
| Motor power | 15 kW |
| Voltage | 400 V / 50 Hz |
| Output 0–6 bar | 1,700 l/min |
| Output at 6 bar | 1,650 l/min |
| Output at 8 bar | 1,500 l/min |
| Output at 10 bar | 1,500 l/min |
| Output at 12 bar | 1,350 l/min |
| Output at 14 bar | 1,350 l/min |
| Outlet | 3/4" |
| Dimensions | 1,550 × 750 × 1,200 mm |
| Weight | 500 kg |
▶
