The electric scissor pallet truck is a versatile device designed for transporting heavy palletised goods. It is used in a variety of environments such as service centres, workshops, construction sites, and warehouses where there is a need to handle heavy loads. The operation of this pallet truck is simple yet highly effective, allowing smooth lifting and lowering of loads. Thanks to the electric lifting system, the scissor truck is not only efficient but also environmentally friendly.

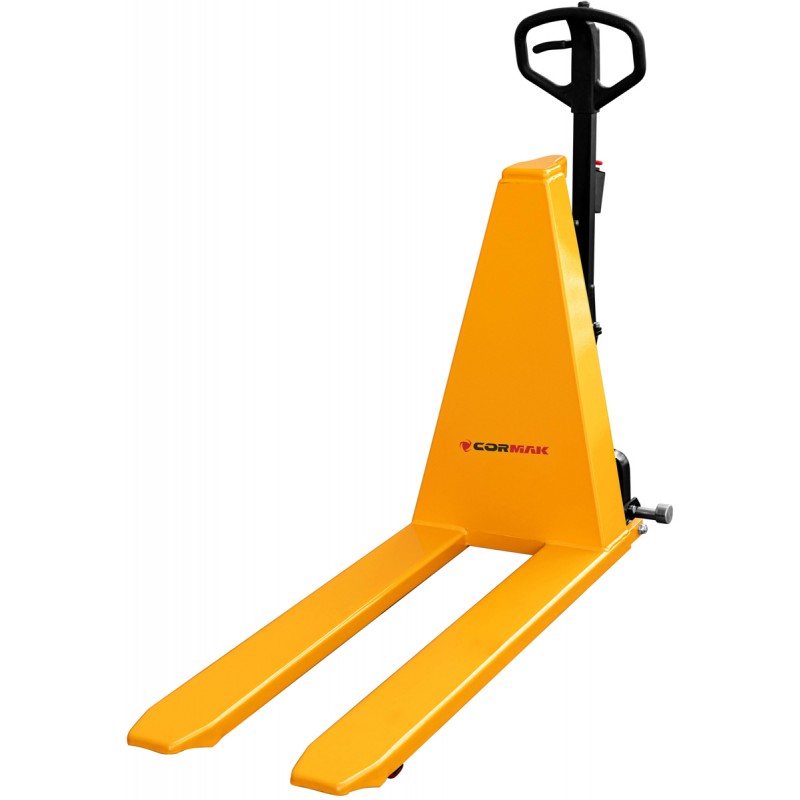

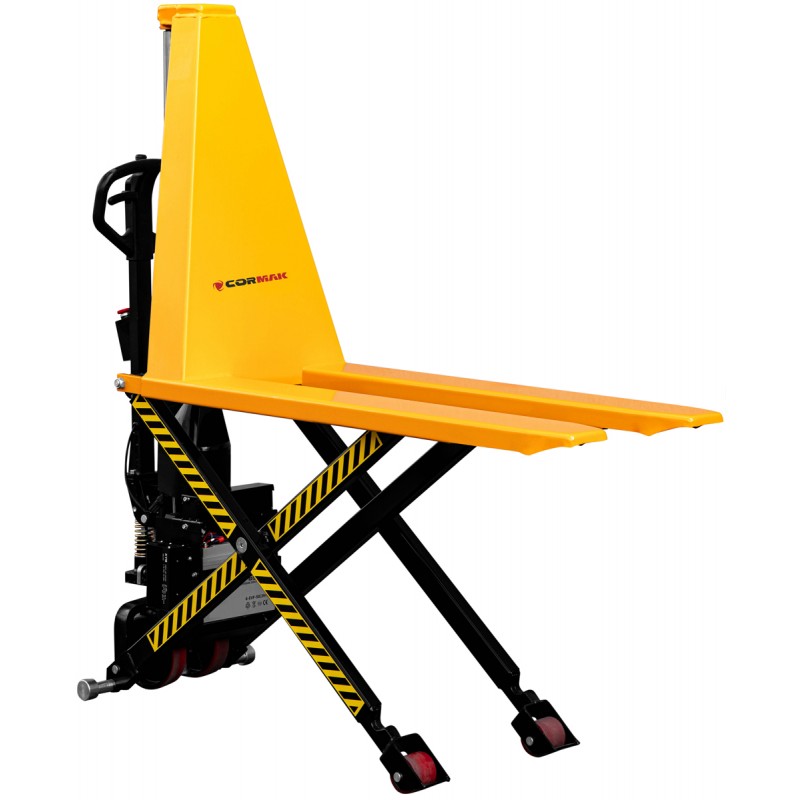

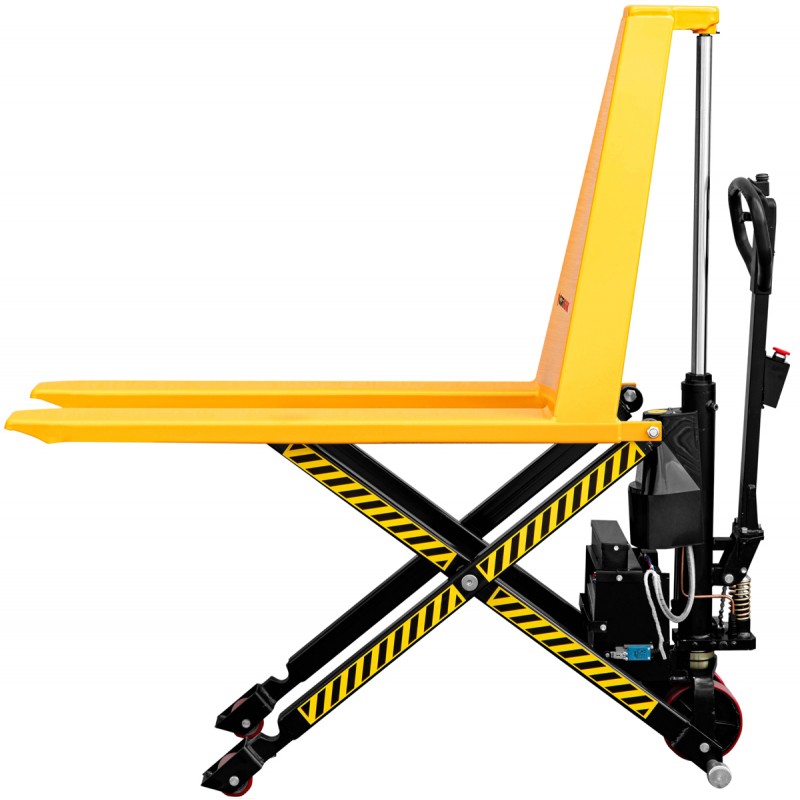

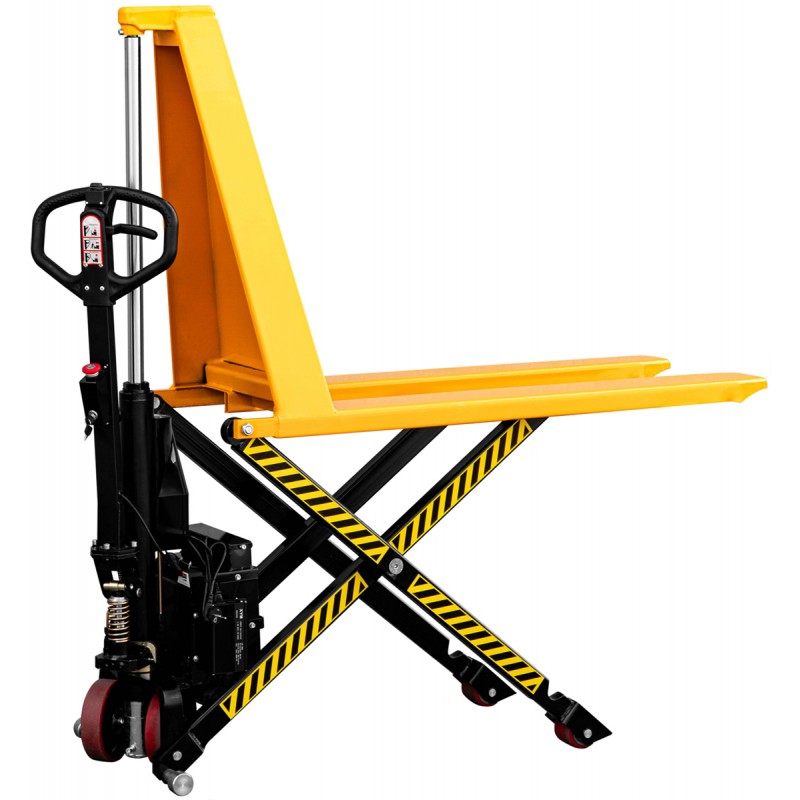

The HT1E Electric Scissor Pallet Truck is an advanced, high-performance device designed for intensive industrial use. Intended for lifting and transporting palletised loads of up to 1000kg, it performs perfectly in warehouses, production halls, workshops, logistics centres, and construction sites. The truck combines the benefits of a classic pallet jack with the functionality of a scissor lift, offering both manual and electric lifting options. Its solid design, reliability, and compliance with CE safety requirements make it an essential tool for daily operations.
The HT1E structure is based on a reinforced, powder-coated steel frame, ensuring high resistance to mechanical damage and external factors. A key element is the telescopic hydraulic cylinder, which, combined with a powerful 0.8kW electric motor, allows efficient and reliable load lifting. Power is supplied by a 12V / 65Ah battery, providing full mobility. When the forks exceed a height of 300mm, an automatic drive lock activates – based on side steel rollers – increasing stability and preventing unintentional movement.

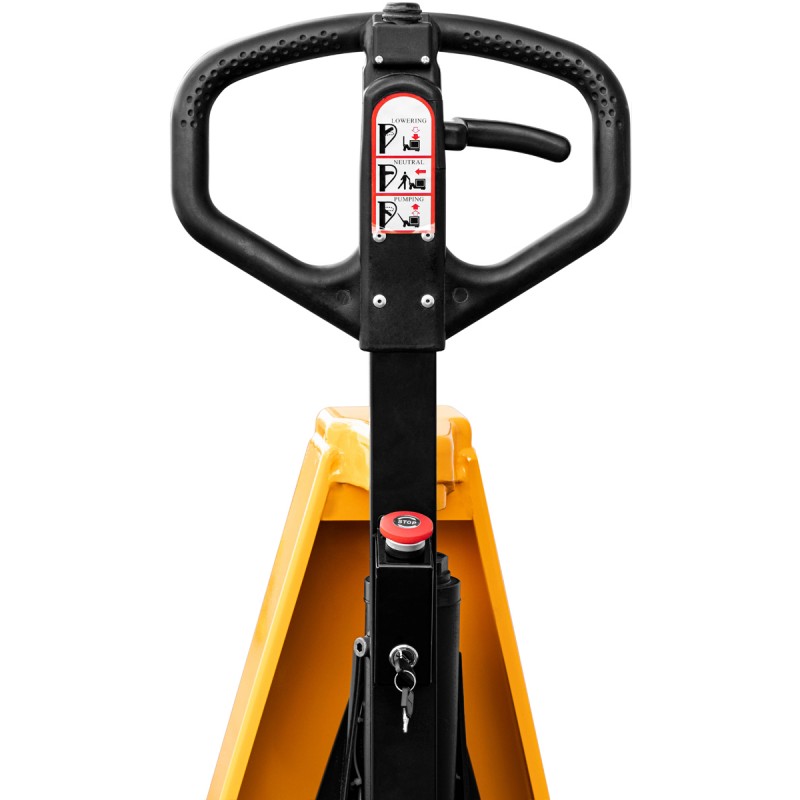

The HT1E ensures precise handling thanks to its ergonomic tiller handle with a rubberised grip and wide steering angle. The electric lifting system operates smoothly and quietly, while the automatic lift speed reduction mechanism protects the load from damage. Additionally, the overload valve safeguards the hydraulic system, significantly extending the unit’s service life. Its compact size allows the truck to operate in confined areas such as containers and delivery vehicles.
The HT1E scissor pallet truck is ideal wherever ergonomic lifting and short-distance load transport are required. It is suitable for logistics, production, maintenance services, wholesale and workshop operations. The dual electric and manual operation offers flexibility, and its versatility makes it useful for a wide range of processes—from order picking to machine loading.
Technical parameters HT1E | |
|---|---|
| LIFTING HEIGHT | 800mm |
| LOAD CAPACITY | 1000kg |
| FORK LENGTH | 1150mm |
| FORK SPACING | 540mm |
| MINIMUM FORK HEIGHT | 85mm |
| WEIGHT | 168kg |
| STEERING WHEEL | 180×50mm |
| LOAD WHEEL DIAMETER | 78×70mm |
| OVERALL DIMENSIONS | 1600×540×1210mm |
| LIFTING MOTOR POWER | 0.8kW |
| BATTERY VOLTAGE / CAPACITY | 12V / 65Ah |
Choose safety, comfort and durability – select the HT1E electric scissor pallet truck and optimise your transport operations today.
