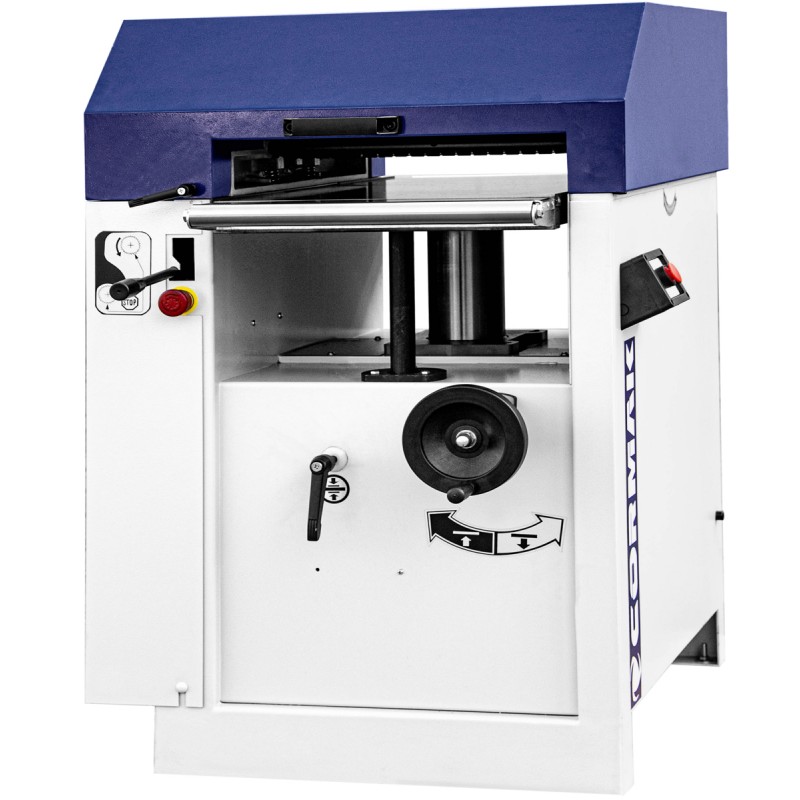

Wood Thicknesser CORMAK TH410S Spiral Cutterhead

The CORMAK TH410S wood thicknesser with spiral cutterhead is an advanced industrial thickness planer designed for professional users seeking maximum precision, durability and comfort of operation. The spiral shaft with 72 replaceable carbide inserts ensures exceptional surface quality, quieter operation and reduced wear of consumable parts compared to traditional straight-knife cutterheads.

Main advantages of the CORMAK TH410S wood thicknesser with spiral cutterhead

• Spiral cutterhead with 72 inserts – provides even cutting, vibration reduction and up to 50% lower noise level, offering much higher durability than conventional straight knives.
• Replaceable carbide inserts – each insert can be rotated or replaced individually when worn or damaged, reducing operating costs.
• Ground cast iron table – ensures optimal glide and stability of the workpiece feed.
• Three feed speeds – allows matching cutting speed to the wood type and production requirements.

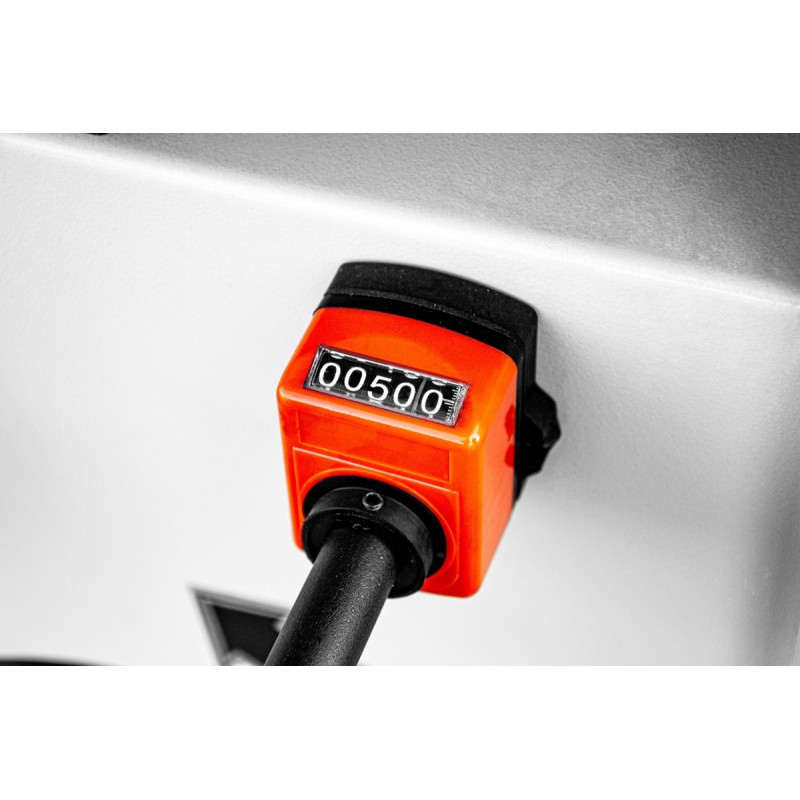

• Digital height indicator – adjustment accuracy up to 0.1 mm thanks to a precise handwheel scale.
• Chain drive feed system – smooth and accurate material transport through the cutting zone.
• Enhanced safety features – compliant with CE certification standards, ensuring operator safety.

Construction and technology

The CORMAK TH410S wood thicknesser is based on a rigid steel and cast iron frame, ensuring excellent stiffness and vibration resistance. The 95 mm spiral cutterhead fitted with 72 carbide inserts positioned in a helical pattern guarantees continuous cutting and prevents fibre tear-out even when processing hard or resinous wood types. The soundproof extraction hood allows quick access to the cutterhead for easy maintenance.

Precision and performance

With a planing range from 5 to 230 mm and a working width of 410 mm, the machine enables machining of both thin boards and large structural components. The 4,050 rpm cutterhead speed and the powerful 3.0kW (S1) motor provide high performance even under heavy loads. The spiral cutterhead produces a smooth surface, often eliminating the need for sanding and significantly reducing preparation time for further processing.

Applications

The CORMAK TH410S wood thicknesser is intended for:

• professional joinery and furniture workshops,
• manufacturers of laminated panels, worktops, stairs, doors and furniture,
• industrial workshops processing large volumes of timber,
• users demanding maximum precision and operating comfort.

This is a reliable and modern industrial thickness planer that meets the highest standards of finish quality thanks to its spiral cutterhead system.

Standard equipment:

• spiral cutterhead with 72 carbide inserts,
• digital thickness indicator,
• chain-driven feed system,
• extended table with supporting rollers,
• soundproof extraction cover,
• full safety system compliant with CE certification.

Optional accessories*

• chip and dust extraction system,
• transport trolley,
• tools for calibration and insert maintenance.

*The price quoted applies to the machine only, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical data

Choose quiet, precise and durable machining – select the CORMAK TH410S wood thicknesser with spiral cutterhead. Contact our technical advisor or order online with professional support and fast delivery!
