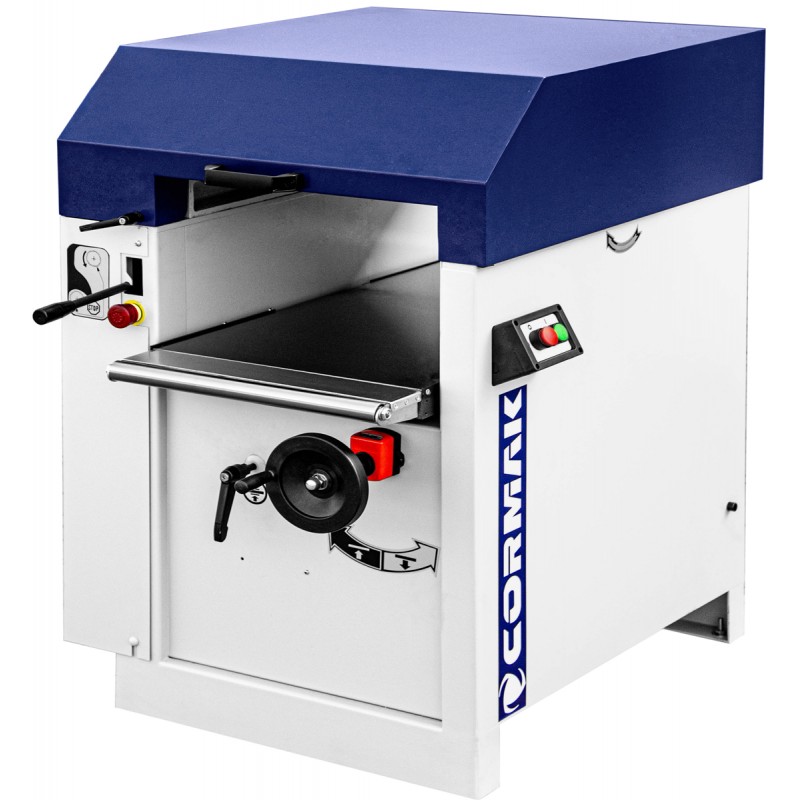

Wood Thicknesser 4-Knife CORMAK TH410

The CORMAK TH410 Wood Thicknesser is a professional industrial-class woodworking machine designed for precise planing of wood with repeatability and maximum accuracy. Equipped with a four-knife cutterhead, it guarantees high surface quality in a single pass. Thanks to its robust construction, stable worktable and adjustable feed speed, the CORMAK TH410 Wood Thicknesser is ideal for intensive production of solid wood and laminated components.

Main advantages of the CORMAK TH410 Wood Thicknesser

• Precision 4-knife cutterhead – ensures excellent surface finish and machining efficiency in one pass.
• Cast iron table – ground and polished surface guarantees smooth feed and high precision.
• Planing range 5–230 mm – enables machining of both thin boards and large structural elements.
• Feed speed selection – allows adjustment of working parameters to wood type and production requirements.
• Digital height adjustment system – precision setting up to 0.1 mm with a clear handwheel indicator.
• Stable column guide support – central table support eliminates vibrations and improves repeatability.

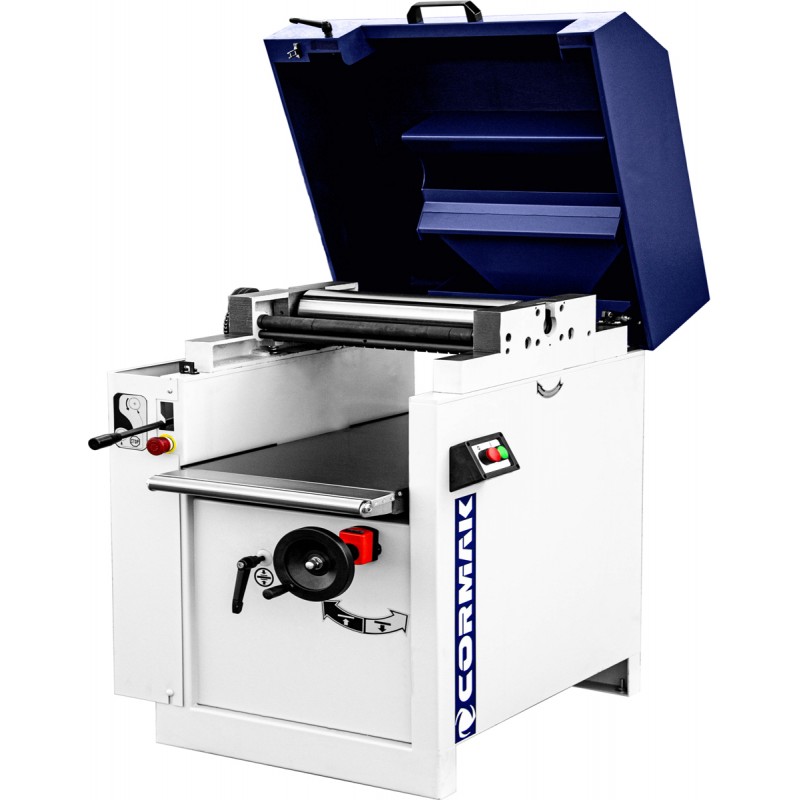

• Safe and convenient operation – hinged extraction cover provides easy access for knife replacement.

Construction and technology

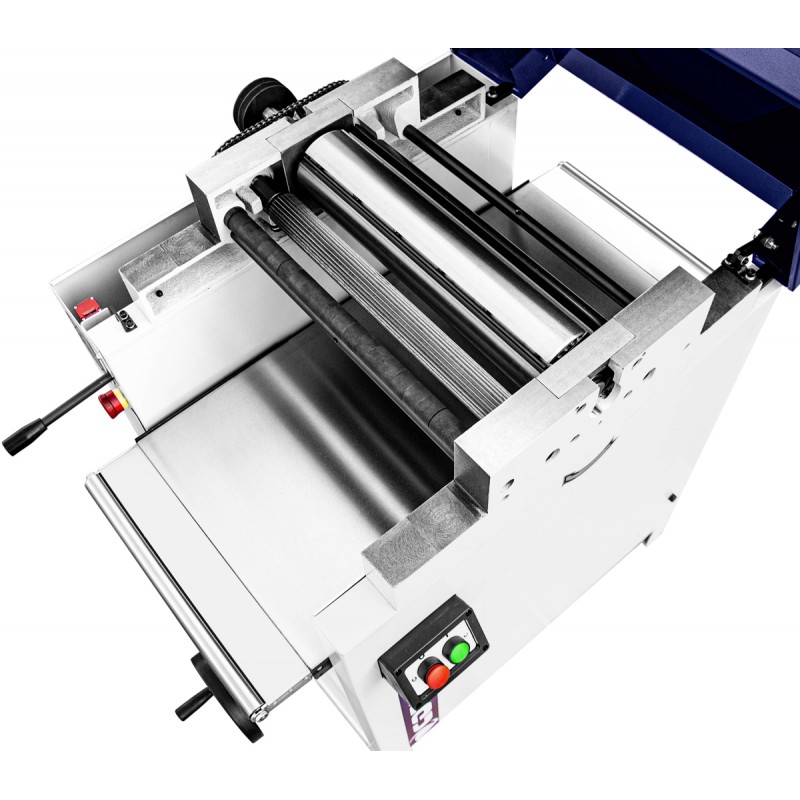

The CORMAK TH410 thickness planer is built on a stable steel and cast iron body, ensuring durability and resistance to dynamic loads. The cutterhead with a diameter of 95 mm is fitted with four replaceable knives rotating at 4,050 rpm. This design guarantees high efficiency and a smooth surface finish, regardless of the wood type.

The worktable, 930 mm long and 410 mm wide, provides comfortable support for large elements. A powerful chain-driven feed system ensures smooth and stable material transport without operator intervention. A standard extension table with built-in rollers is also included.

Precision and performance

The machine achieves a feed rate of 6 m/min, which, combined with a maximum cutting depth of 4 mm, enables fast material removal without loss of accuracy. The 3.0kW (S1) motor delivers continuous performance, with a total installed power of 4.2kW. As a result, the CORMAK TH410 Wood Thicknesser offers high productivity with smooth operation and low vibration.

Applications

The TH410 planer has been designed for:

• carpentry and furniture workshops,
• manufacturers of doors, worktops, stairs and flooring,
• craft workshops processing solid wood,
• companies engaged in serial or custom wood production.

A solution for users who value reliability, precision and productivity while maintaining full control over the planing process.

Standard equipment:

• four-knife cutterhead,
• polished cast iron table,
• extraction and soundproofing cover,
• roller extension table,
• digital height indicator,
• complete safety system compliant with CE certification.

Optional accessories*

• chip and dust extraction system,
• transport trolley,
• knife setting jig.

*The price quoted applies to the machine only, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
