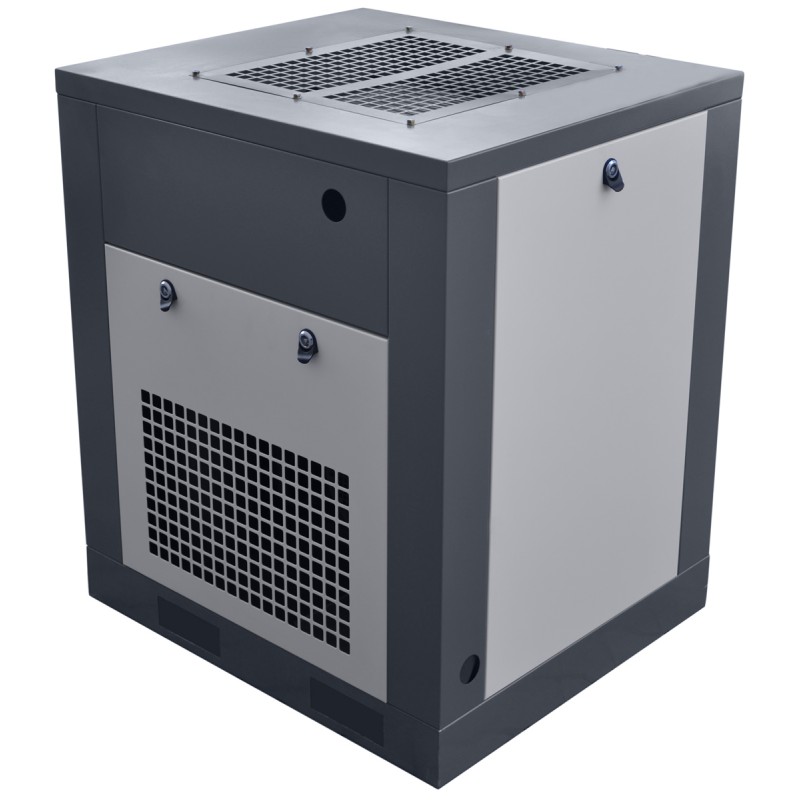

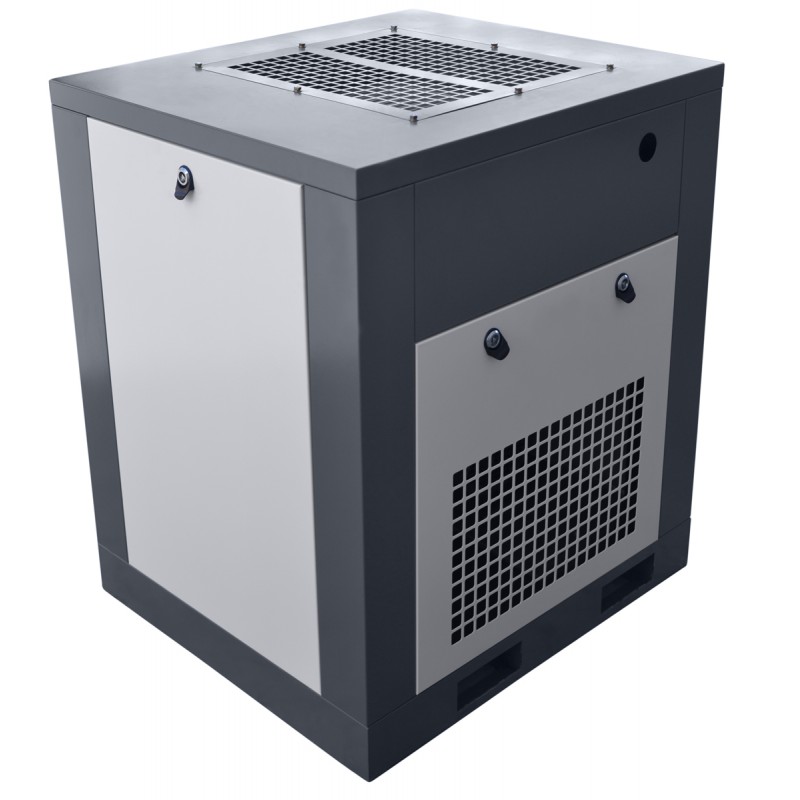

Screw Compressor CORMAK THEOR 10 - 7.5kW - 750L/min with Inverter 10bar

CORMAK THEOR 10 INVERTER screw compressor – power and precision for your business

Are you looking for a professional solution for powering pneumatic tools in a workshop, paint shop or production line? The CORMAK THEOR 10 INVERTER screw compressor is an ideal choice. With a power output of 7.5kW and an impressive actual capacity of up to 990L/min, it provides a constant supply of compressed air required for efficient operation of impact wrenches, blow guns and painting tools. This model is designed for continuous operation, making it well suited to demanding applications such as tyre service workshops, large automotive workshops and production facilities. Investing in a CORMAK screw compressor is a step towards significantly improving working comfort – replace noisy piston compressors and benefit from quieter and more stable operation.

The THEOR 10 INVERTER features direct drive, which provides significantly better efficiency and lower power losses compared with belt-driven models. This innovative solution ensures optimum use of motor power and therefore higher performance with lower energy consumption. The maximum pressure generated by this screw compressor is 10bar. Full control over the operating parameters of the unit is provided by an intuitive MAM-series electronic control panel, giving you access to key compressor information and increasing flexibility and control over processes.

✅ Pressure: up to 10bar | ✅ Capacity: up to 990L/min | ✅ Power: 7.5kW

CORMAK screw compressors: When you expect the highest quality and performance!

Are you looking for solutions that exceed market standards? CORMAK screw compressors are synonymous with innovation and reliability, designed for the most demanding applications.

• Innovative design: Our compressors are based on advanced engineering and European manufacturing precision. Robust construction, enhanced with modern components, ensures long-lasting and trouble-free operation in all conditions.
• Quiet operation and comfort: Designed with attention to detail, our compressors feature an exceptionally low noise level. Effective sound-damping and vibration-reduction systems provide a comfortable working environment, contributing to better operator concentration and well-being.
• Intelligent control: The intuitive MAM-series electronic control panel is the command centre of your compressor. It enables precise parameter monitoring, service planning and rapid diagnostics, ensuring stability and protection of key components.
• Adaptation to requirements: We understand that every application is unique. CORMAK compressors can be configured with additional air-treatment systems, allowing precise adaptation to the specific requirements of your industry.
• Dynamic operating pressure: Automatic pressure regulation ensures that the compressor supplies exactly as much compressed air as required at any given moment, maximising energy efficiency and minimising losses.
• Sustainability: We focus on environmentally responsible solutions. Energy-efficient technologies used in our compressors not only reduce your energy costs but also limit environmental impact, while the heat-recovery option* allows maximum use of energy.

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

CORMAK: Technology that drives your success!

Main advantages of the 7.5kW induction motor with inverter

• Significant electricity savings: The inverter enables smooth and precise regulation of the induction motor speed. The compressor adjusts its capacity exactly to the current compressed-air demand. This means no idling operation, when the motor runs without producing air, no frequent start/stop cycles and no energy losses associated with releasing excess air. Depending on the air-consumption profile of a given facility, electricity savings may range from 25% to as much as 50%. The more variable the air demand, the greater the potential savings.
• Stable system pressure: Thanks to continuous speed regulation, the inverter maintains almost perfectly constant pressure in the compressed-air network regardless of fluctuations in demand. This is essential for correct operation of pneumatic tools and machines, prevents pressure fluctuations and increases process precision.
• Reduced starting currents and electrical network loads: An induction motor started by an inverter starts smoothly and gradually, eliminating high starting currents that could place a load on the electrical network and cause voltage drops. This protects the electrical infrastructure and reduces the risk of disturbances.
• Extended component service life: Smooth operation without sudden starts and stops significantly reduces mechanical loads on the screw air end, bearings, coupling and the motor itself. This contributes to longer compressor service life and lower servicing and spare-parts costs.
• Quieter operation: When the compressor operates at a lower rotational speed under reduced demand, it generates less noise. This improves acoustic comfort in the workplace, which is important for operators and the surrounding environment.
• Greater flexibility and adaptation to requirements: A compressor with an inverter can efficiently handle a wide range of compressed-air demand. It is an ideal solution for companies where air consumption varies throughout the day, week or month.
• Advanced control and diagnostics: The inverter integrates with modern control panels, offering extensive functions for monitoring operating parameters, fault diagnostics, remote control and maintenance scheduling. This gives the user full control and enables optimisation of the compressed-air system.

The combination of the proven reliability of an induction motor with intelligent inverter control makes the screw compressor an exceptionally efficient, economical and flexible source of compressed air, ideally suited to the dynamic requirements of modern industry.

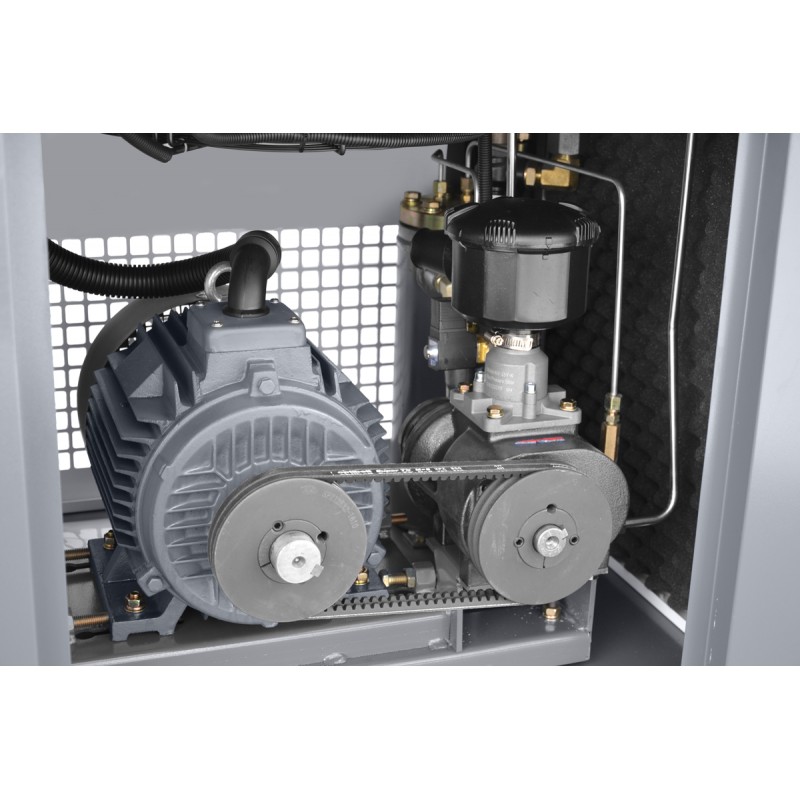

Screw air end – the heart of your compressor

High-quality Cormak screw compressors, such as the THEOR 10 model, are based on technologically advanced screw air ends that determine their performance and reliability. By relying on proven solutions and innovation, Cormak ensures that every air end is refined down to the smallest detail to meet the requirements of even the most intensive operation.

Key features of screw air ends in CORMAK compressors:

• Modern technology and efficiency: Screw air ends ensure excellent performance and exceptional operating efficiency. Their design focuses on maximum performance with minimum energy consumption.
• Precision and control: Thanks to advanced technical solutions, screw air ends enable precise control of the compressed-air generation process. This results in stable pressure and optimum operation of the entire pneumatic system.
• Durability and reliability: Screw air ends used in CORMAK compressors are designed for long service life. Their robust construction and use of high-quality materials ensure reliability even in demanding industrial operating conditions, minimising the risk of downtime and the need for frequent repairs.

By choosing a Cormak compressor, you invest in technology that is the result of many years of industry experience and continuous pursuit of innovation, contributing to increased efficiency and productivity in your business.

Integrated inverter – the foundation of efficiency and savings

In Cormak screw compressors such as the THEOR 10 model, the built-in inverter is a key component that transforms the way compressed air is supplied. It is responsible for intelligent motor management and generates significant benefits for the user.

How does it work and what do you gain?

The inverter enables smooth regulation of rotational speed of the motor, providing precise control of compressor capacity. In practice, this means that the compressor supplies exactly as much air as is required at any given moment. This is a fundamental difference compared with traditional solutions, where the compressor operates at full speed or switches to idle mode.

Key advantages of the built-in inverter:

• Smooth start and quiet operation: Thanks to the inverter, motor start-up is exceptionally smooth. This eliminates sudden starting-current peaks that place a load on the electrical network and also ensures quieter and more stable operation of the entire unit from the moment it starts.
• Maximum energy savings: This is the greatest benefit. The variable-speed drive, or inverter, dynamically adjusts energy consumption to the current air demand. This means that energy is not wasted producing excess compressed air. Depending on the specific consumption profile in your business, you can achieve electricity savings of up to 50%. Combined with the efficient motor used in Cormak compressors, energy efficiency can be even higher, optimising your operating budget.
• Longer component service life: Smooth operation without sudden starts and stops reduces mechanical loads on the motor, screw air end and other components, which extends the service life of the entire compressor and reduces maintenance costs.

The built-in inverter in Cormak compressors is an investment that quickly pays for itself, offering not only savings but also outstanding precision and reliability in compressed-air delivery.

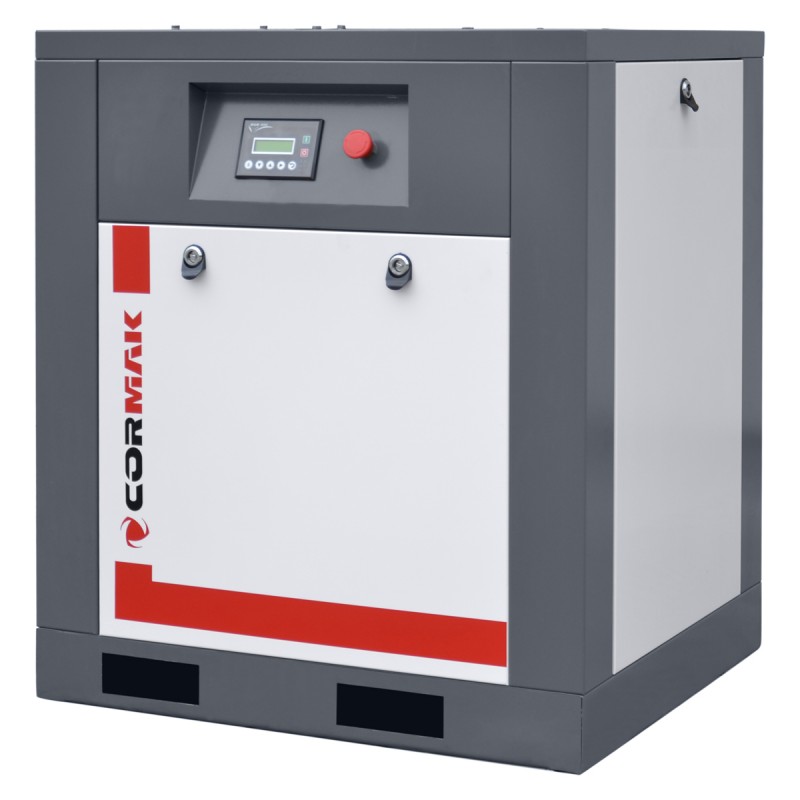

Intuitive CORMAK control panel – full control at your fingertips

In Cormak screw compressors such as the THEOR 10 with inverter, a key component ensuring reliability and optimised operation is the advanced MAM-series control panel. Designed for efficient management of the compressed-air system, this controller enables continuous monitoring and rapid response to operating parameters.

What does the Cormak control panel offer?

• Comprehensive monitoring: The panel enables continuous monitoring of all key compressor operating parameters, such as pressure, temperature and operating status.
• Easy adjustment of settings: Thanks to the intuitive interface, the user can easily modify settings and operating parameters, adapting them to the current requirements of the system.
• Immediate notifications: The controller is programmed to respond quickly to operational events. If an irregularity occurs, such as a fault or a required inspection, the relevant notification is shown on the display.

The Cormak control panel provides reliable and efficient operation, enabling precise management of the compressed-air system.
