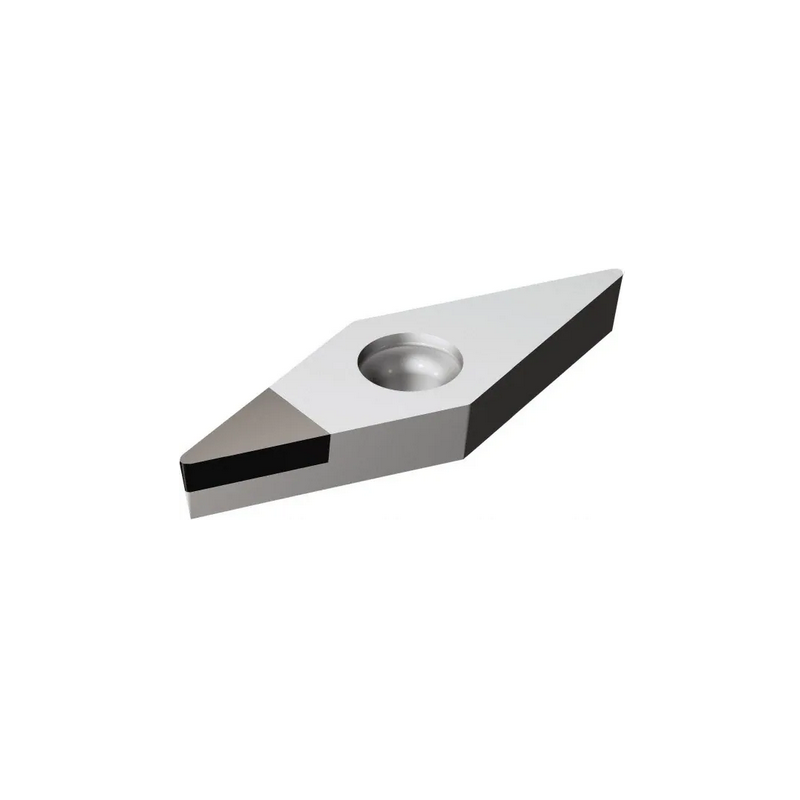

Polycrystalline Diamond Turning Insert CORMAK VCGW160412
Manufacturer:
CORMAK

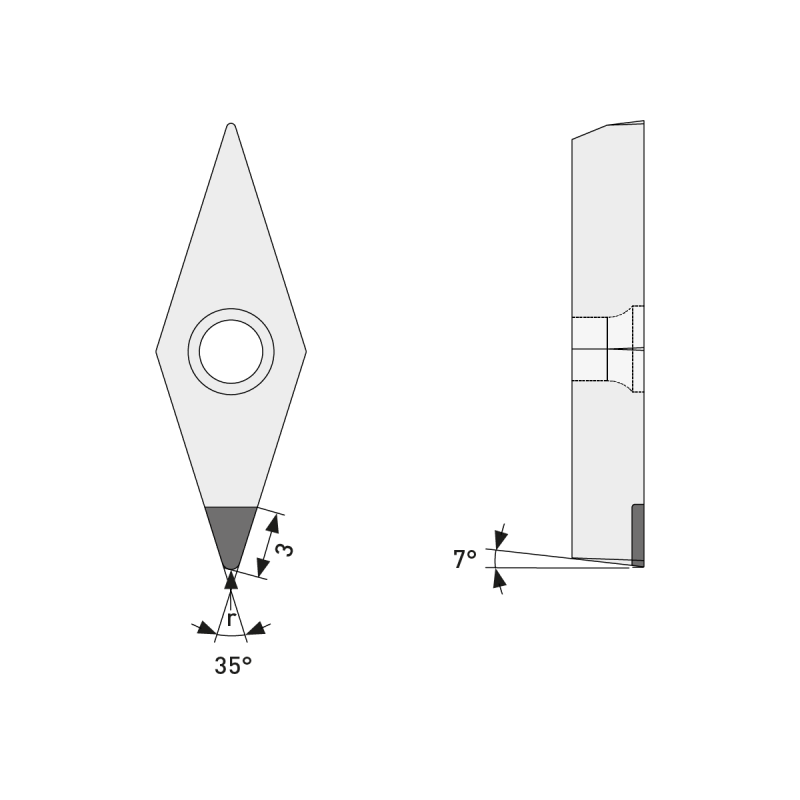

The VCGW160412 insert with polycrystalline diamond (PKD / PCD) is a cutting tool designed for turning non-ferrous materials and composites such as aluminium (below and above 12% Si), copper, ceramics before sintering, graphite, rubber or fibre-reinforced plastics. Geometry: basic shape V (35°), clearance angle C (7°), radius tolerance ±0.015 mm, edge radius r = 1.2 mm, cutting edge length 3.0 mm. The insert is brazed on a substrate, features a W-type chipbreaker and G-type tolerance mounting, ensuring stable and precise cutting performance.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Polycrystalline Diamond Insert – Application Area:
- aluminium <12% Si
- aluminium >12% Si
- ceramics before sintering
- graphite
- rubber
- magnesium
- copper
- brass
- lead-free brass
- platinum
- silver
- plastics
- glass fibre reinforced plastic (GFRP)
- carbon fibre reinforced plastic (CFRP)
- titanium
- gold
Polycrystalline Diamond Insert – Technical Specifications:
| Radius tolerance | ±0.015 |
| Cutting material | PCD |
| Cutting edge design | brazed insert |
| Basic shape | V (35°) |
| Clearance angle | C (7°) |
| Tolerance | G |
| Mounting and chipbreaker | W |
| Insert size | 16 |
| Thickness | 04 (4.76 mm) |
| Edge | 12 r=1.2 |
| Cutting edge length | 3.0 mm |
| Application range | turning |
