Ideal for engraving, marking and cutting. The working area of the laser plotter measures 700x500 mm.
Included with the laser plotter: red dot pointer, honeycomb table, fume extraction system, waste drawer, integrated compressor activated during operation, fan and cooling unit.
The advantage of this engraving machine is the “through table”, which allows processing of materials of any length, 700 mm width and 100 mm height, or any width and length of 500 mm.
The latest series of high-speed lasers for cutting and engraving. Save your time and increase your competitiveness.
The fast Ultrafast laser series is your guarantee of success!
LASER CUTTING PROCESS
Laser cutting is a modern and widely used material processing technique. The cutting tool in this technique is a laser beam with high energy density that cuts through the material.
Course of the laser cutting process
The process is based on the interaction of the laser beam at its focal point, where its power is at its highest, causing rapid melting, vaporisation, ablation and heating of the material up to ignition temperature. The point of impact of the beam on the material is blown by a fast-flowing gas that removes the molten material along the axis of the beam.
| LASER POWER | 80 W (RECI W1 tube) (option*: 90W, 130W, 160W, 180W) |
| WORKING AREA | 700 x any / any x 500 mm |
| DIMENSIONS | 1320x950x750 mm |
| WEIGHT | 205 kg |
| POSITIONING ACCURACY | ± 0.05 mm |
| VOLTAGE | 230V |
| POWER | 800W |
| OPERATING TEMPERATURE | 0–45 ℃ |
| OPERATING SYSTEM | Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit) |
| INPUT FILE FORMATS | PLT, AI, DST, DXF, BMP |
| COMPATIBLE SOFTWARE | CorelDraw, AutoCAD, Photoshop |
| DRIVE TYPE | Stepper motors |

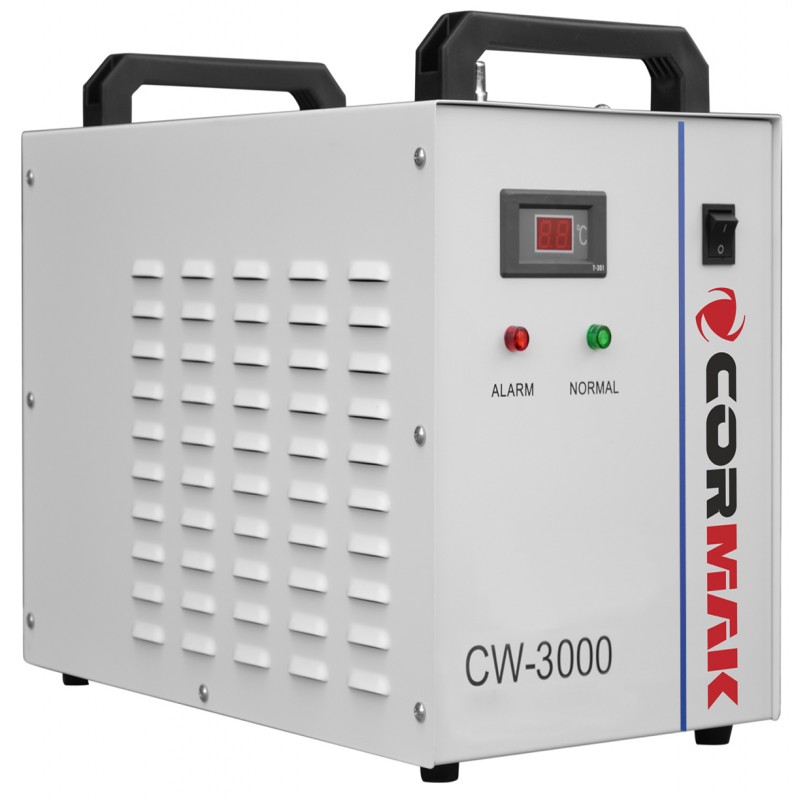

| TUBE COOLING | Chiller CW3000 |
| MATERIAL COOLING | Air |
Equipped with a cooling medium which, when the liquid reaches the alarm temperature, rapidly cools the laser tube system using the integrated compressor unit.

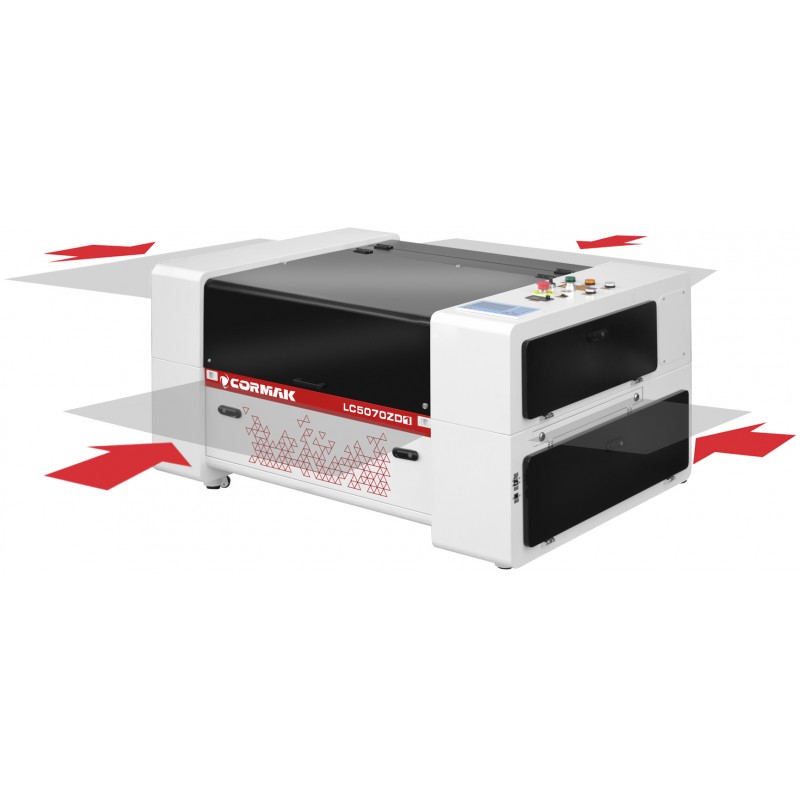

Four-side material feeding allows you to cut and engrave material on a large scale.

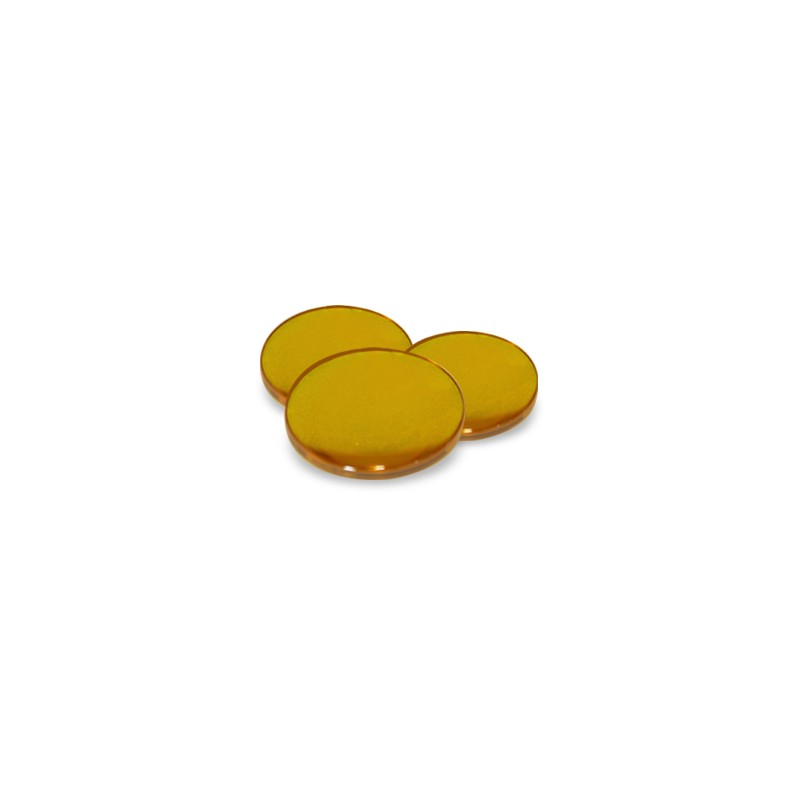

American optics from American Photonics. Proven 14% better transmission compared to other optical systems. High-durability mirrors and aspheric focusing lenses manufactured by II-VI, USA.
High sharpness and transmission rate. The lenses not only ensure machine quality but also allow the optical system to operate for a long time with high efficiency and low cost.
Includes both a knife table and a honeycomb table.
Wood, acrylic, plastics, textiles, paper, leather, rubber and other non-metallic materials.
