Metal bandsaw with an optimal cutting range, widely used in locksmith, manufacturing and craft workshops for cutting a variety of metals.

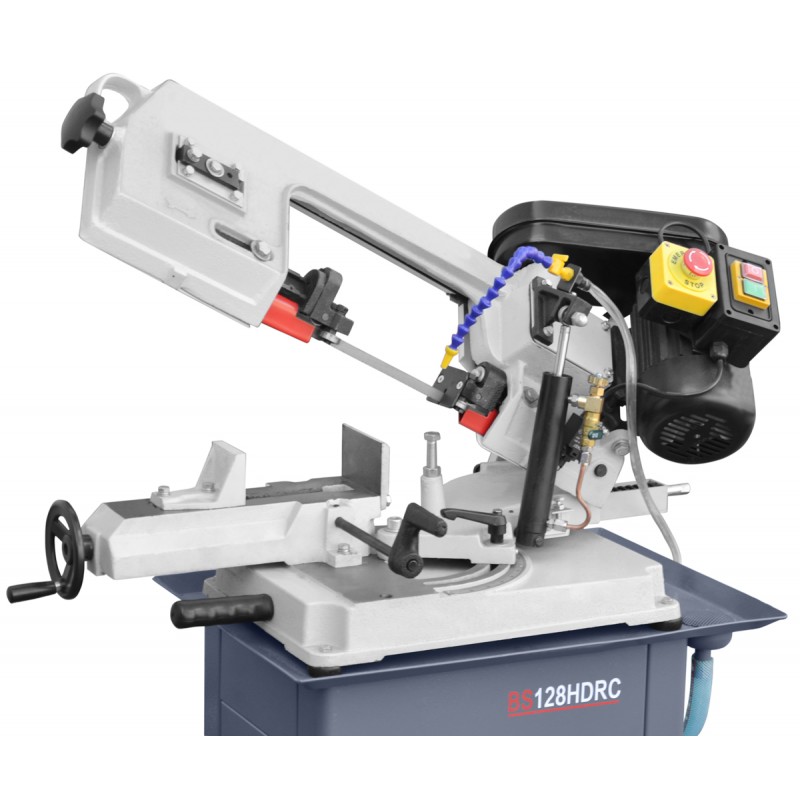

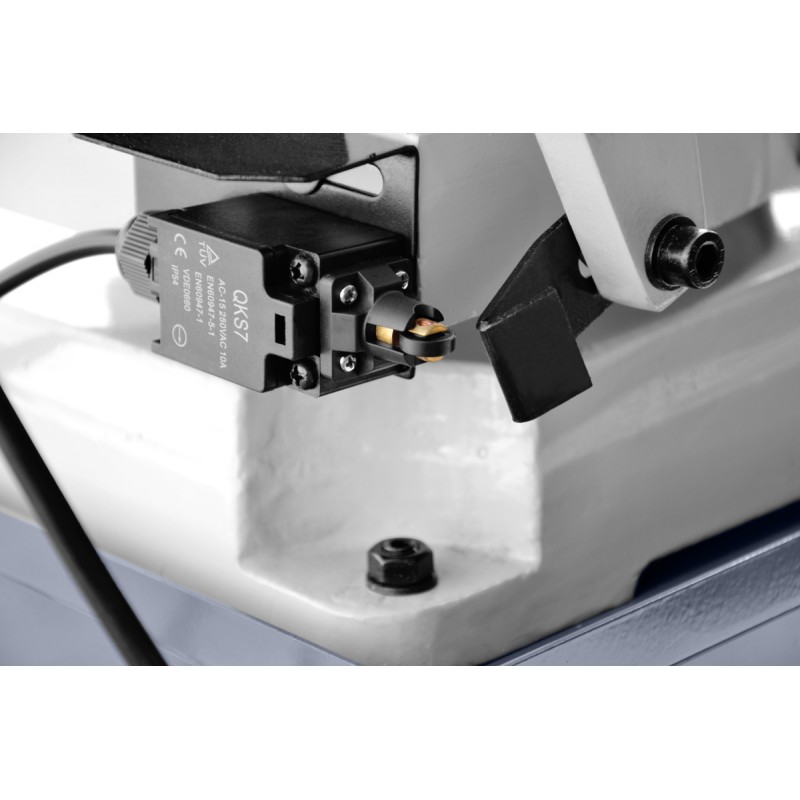

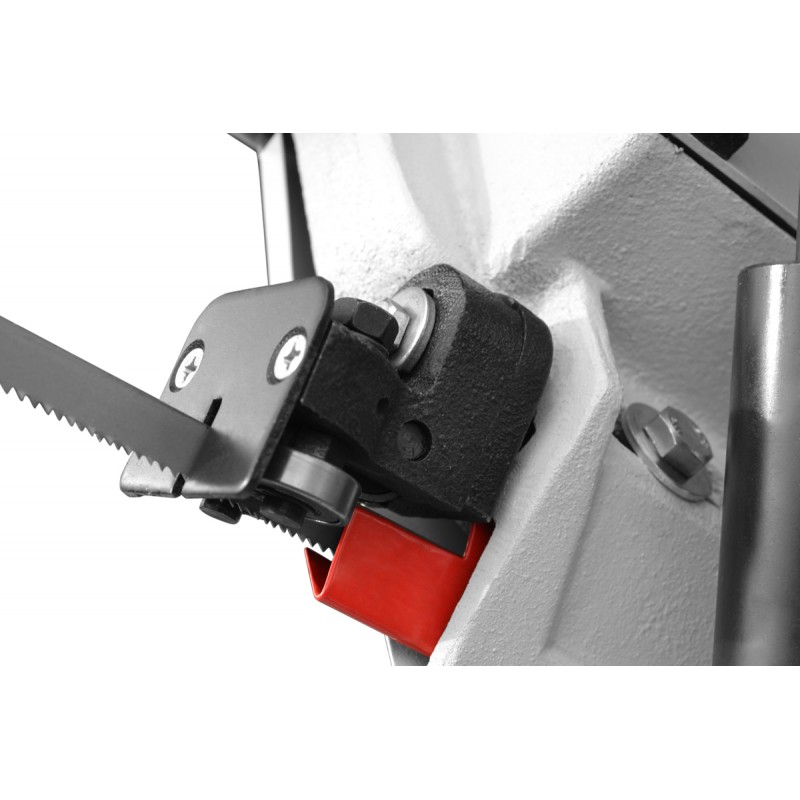

The CORMAK BS128HDRC metal bandsaw, designed for professional craftsmen, offers optimal cutting range, performance, and ease of use. The arm swivels in both directions, which is a major advantage when cutting materials at angles. Despite its compact size, the machine’s high weight (90kg) ensures excellent stability and minimises vibrations during cutting – unlike lighter machines. The material can be fed manually or by any feeding device. The feed during cutting operates by gravity, based on the oil flow within a dual-chamber hydraulic cylinder. The desired arm lowering speed is achieved by adjusting the valve that regulates the oil flow between the chambers. Cutting accuracy is ensured by a set of bearing guides. The machine is equipped as standard with an automatic limit switch and an ON/OFF switch compliant with IP54. The saw frame swivels for double mitre cutting within the range from -45° to +60°.
|
Blade length |
1640 × 13 × 0.65mm |
|
Blade tension |
mechanical (manual) |
|
Cutting speed |
20 / 29 / 50m/min |
|
Motor power |
0.55kW / 230V |
|
Arm lowering adjustment |
stepless by hydraulic cylinder |
|
Cutting range |
-45° to +60° |
|
Dimensions |
1000 × 550 × 1100mm |
|
Weight |
90kg |
| Max. cutting capacity [mm] | |||
|---|---|---|---|
|
Angle |
|
|
|
|
0° |
Ø125 |
150 × 100 |
120 × 120 |
|
45° |
Ø90 |
90 × 90 |
90 × 90 |
|
60° |
Ø55 |
55 × 55 |
55 × 55 |
|
-45° (L) |
Ø75 |
75 × 75 |
75 × 75 |
