Multi-spindle drilling machine is a tool with numerous advantages that simplify and improve the drilling process. Its key feature is the ability to drill holes at equal intervals and their multiples, allowing full adjustment to different projects while maintaining even hole spacing. Each spindle reaches a speed of 2,840 rpm.

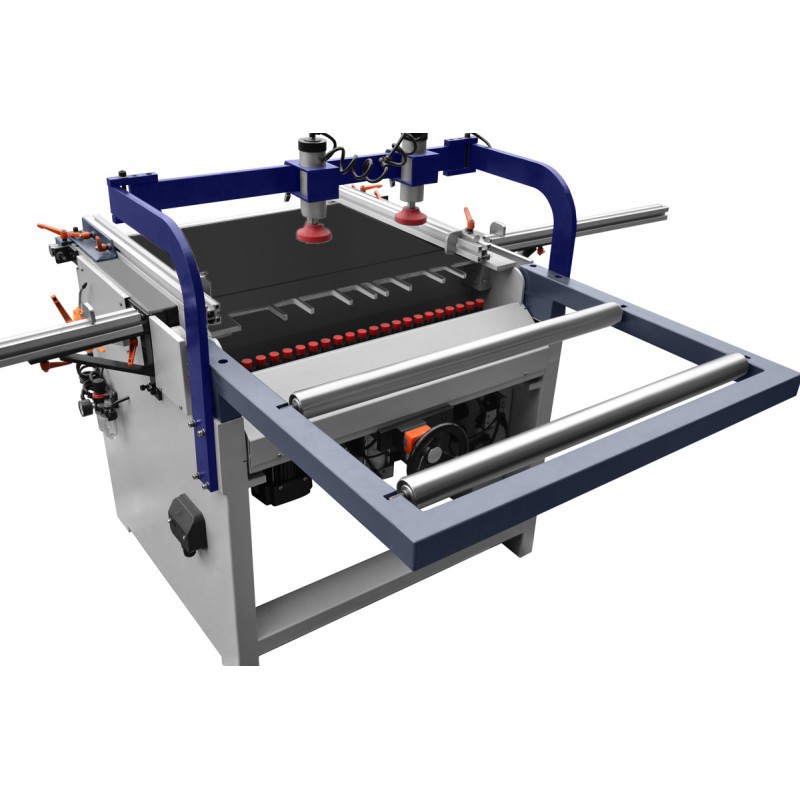

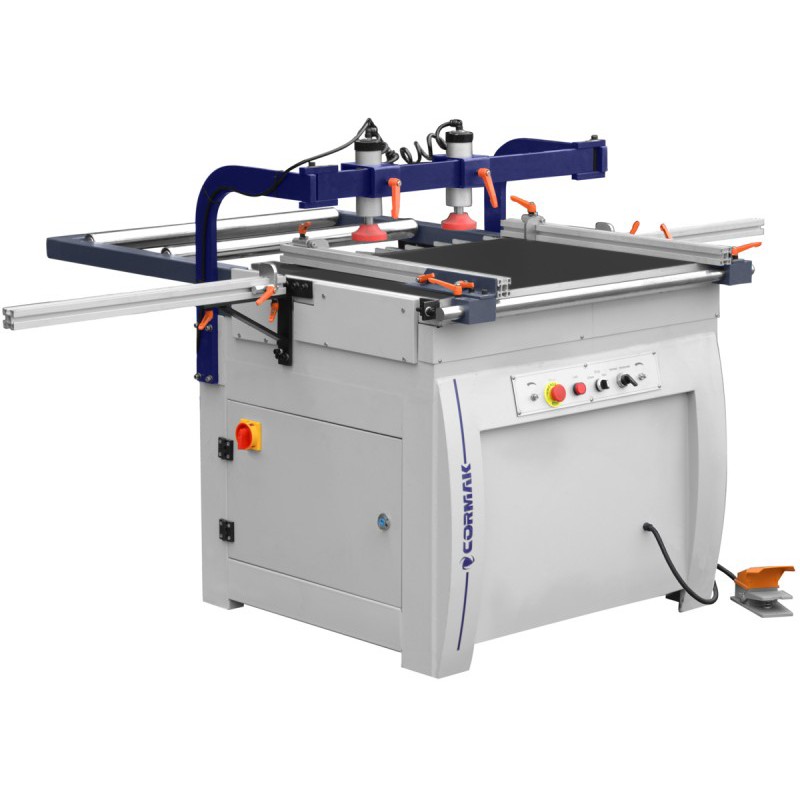

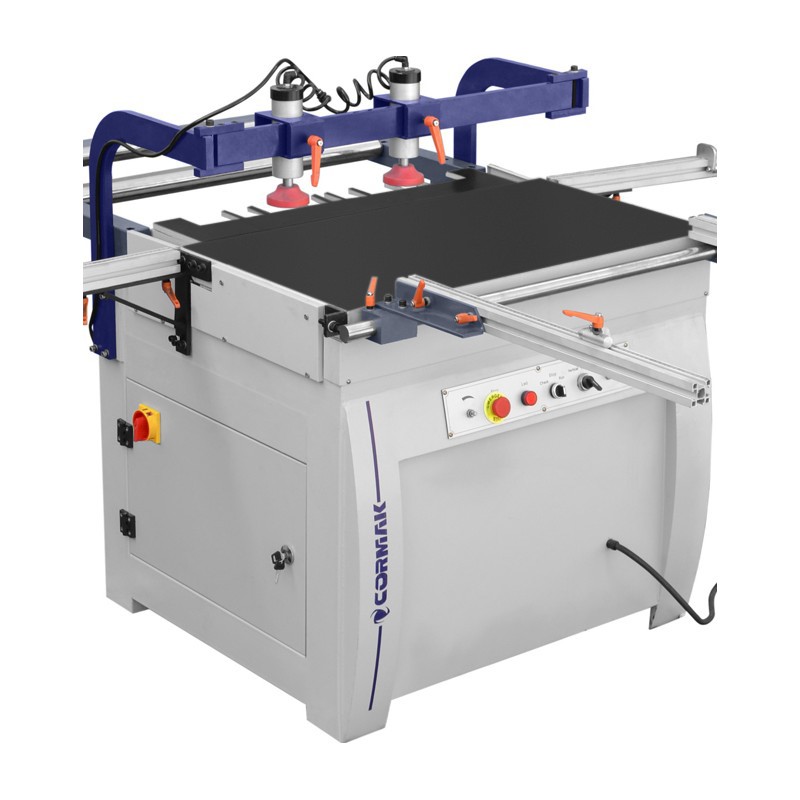

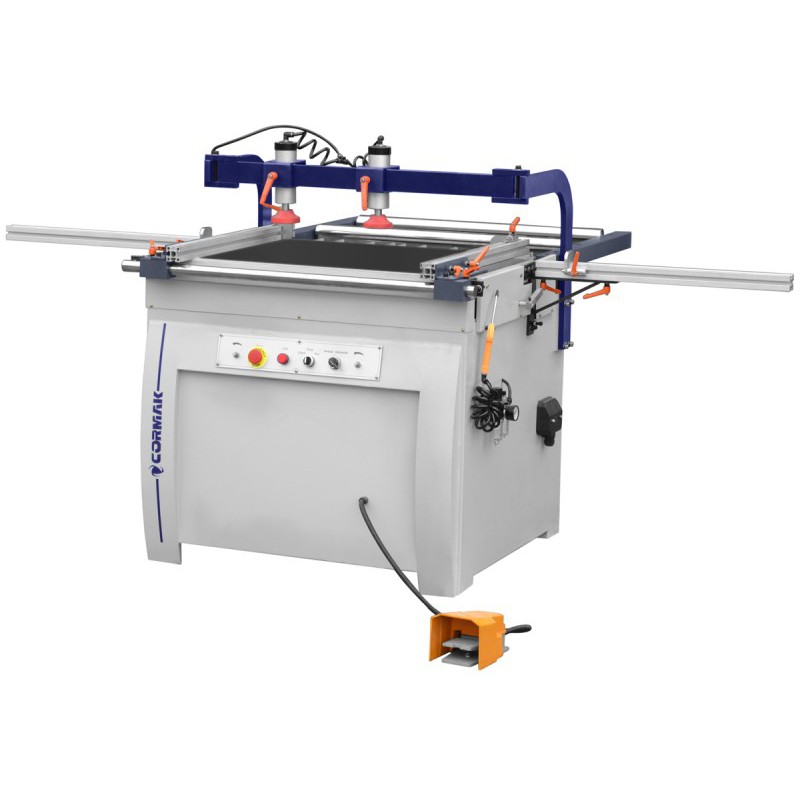

The Multi-Spindle Drilling Machine CORMAK MZS21X1 is a professional solution for woodworking shops and furniture manufacturers who demand the highest precision, efficiency and reliability in serial wood and furniture fitting machining. The machine has been designed for accurate hole drilling in materials such as solid wood, MDF and plywood, offering full control of the process and high repeatability of the drilled holes.
Main advantages of the machine
- Pneumatic drilling head adjustable from 0° to 90°, with an intermediate lock and a 45° reference point.

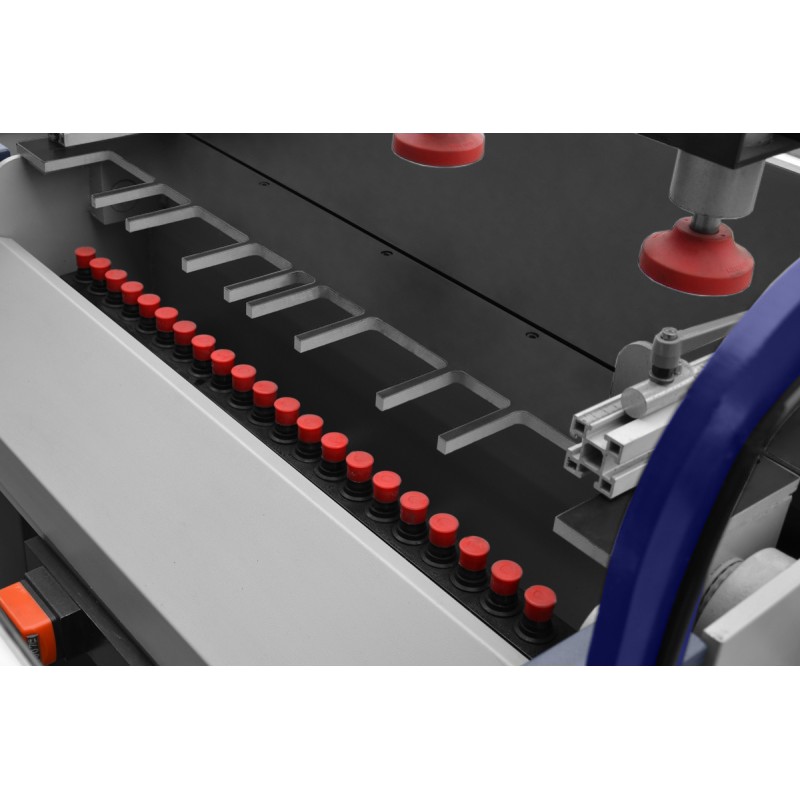

- 21 working spindles enabling simultaneous drilling of multiple holes – ideal for cabinet and carcass furniture production.
- Mechanical digital indicator facilitating precise drilling height adjustment.
- 1.5 kW motor providing stable drive and high operational efficiency.

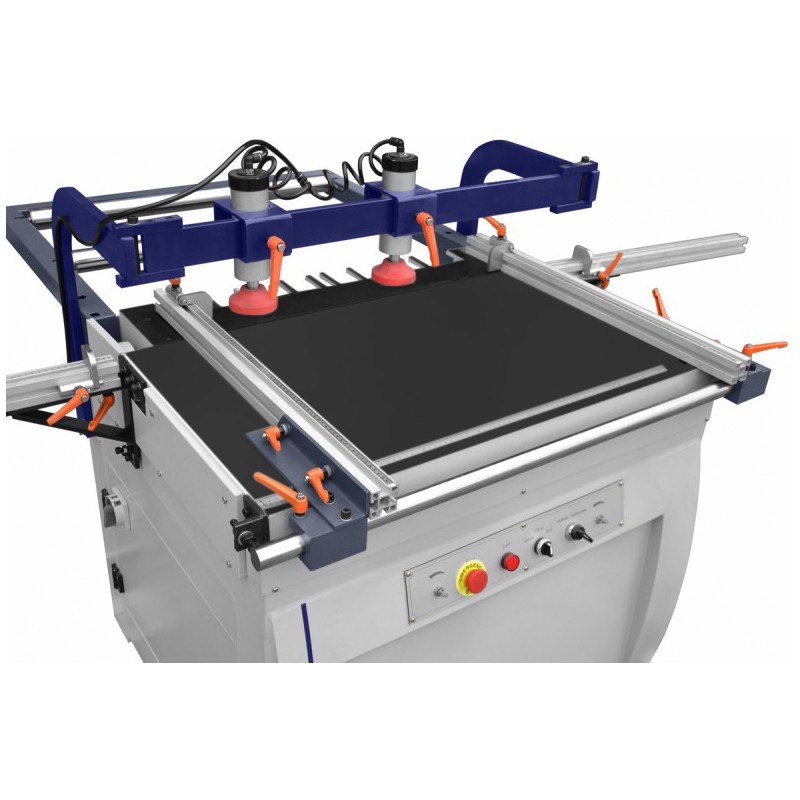

- Pneumatic clamping and pressing system – guarantees repeatability and stability of the workpiece.
- Automatic return of the drilling unit once the set drilling depth is reached.
- Adjustable feed speed ensures optimal settings for different materials.
- Support rollers and aluminium fence extendable up to 3 m of working length.
- Efficient and quiet operation thanks to precision-engineered components and optimised structure.
Design and technology

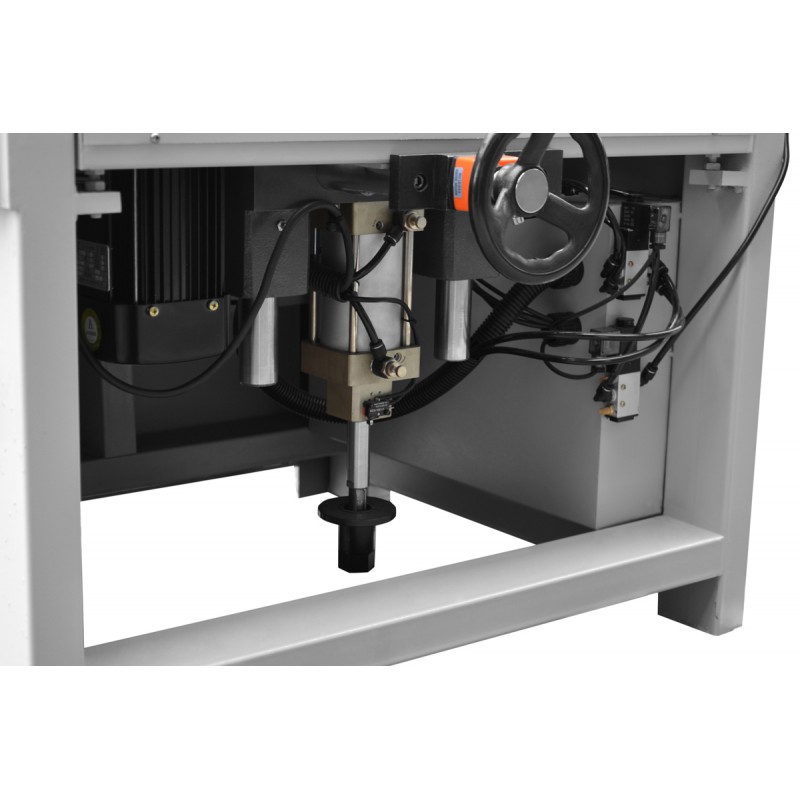

The structure of the CORMAK MZS21X1 drilling machine is based on a rigid steel frame, minimising vibrations and ensuring high accuracy of drilling. The drilling head allows for fast angle adjustment and convenient tool changes. All spindle drive components are solidly mounted, significantly increasing the machine’s durability under intensive use. The pneumatic system is compatible with standard workshop installations operating at 6–8 bar.
Precision and performance
The machine enables accurate drilling of dowel, hinge and fitting holes in a single operation. Thanks to the large number of spindles and the possibility of adjusting the drilling position and angle, the operator gains full flexibility when performing complex production tasks. The mechanical position indicator and digital readout allow fast retooling and reduced setup time between production batches.
Applications
The Multi-Spindle Drilling Machine CORMAK MZS21X1 is used in facilities specialising in furniture production, joinery, interior fittings and wooden component manufacturing. Thanks to its design, precision and performance, it is perfectly suited for both small workshops and medium-sized production lines, where drilling speed and repeatability of furniture fitting holes are essential.
Standard equipment
- 21-spindle drilling head
- Pneumatic material clamps
- Aluminium fence with rollers
- Digital height indicator
- Foot pedal for drilling control
- Set of tool holders and drill mounts
Optional equipment
- Spiral and hinge drill bits
- Additional fence stops
- Pneumatic connection kits
- Chip extraction systems
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
Technical data
| NUMBER OF SPINDLES | 21 pcs |
| SPINDLE PITCH | 32 mm |
| MAX DRILL DIAMETER | 10 mm |
| MAX DRILLING DEPTH | 60 mm |
| MAX DRILLING DIAMETER | 35 mm |
| POWER SUPPLY | 400 V |

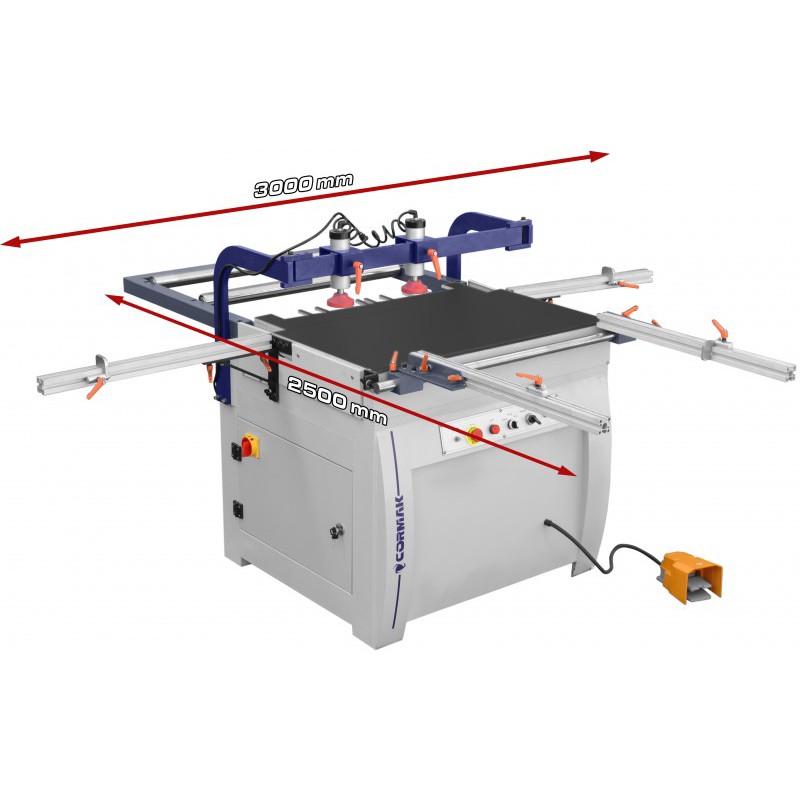

| MAX WORKING AREA | 3,000 x 2,500 mm |
| SPINDLE SPEED | 2,840 rpm |
| WORKING PRESSURE | 0.6 – 0.8 MPa |
| MOTOR POWER | 1.5 kW |
| MACHINE DIMENSIONS (without table extensions) | 1,400 x 1,300 x 1,400 mm |
| WEIGHT | 350 kg |
