Perfect for engraving, marking and cutting. The working area of the laser plotter is 700x500 mm.
Included with the plotter: red dot pointer, honeycomb table, fume extraction system, integrated work-activated compressor, fan and cooling unit.
The advantage of this engraving machine is the “through table”, which allows processing materials of any length, 700 mm width and 100 mm height, or of any width and length of 500 mm.
The latest series of high-speed lasers for cutting and engraving. Save your time and increase your competitiveness.
The fast Ultrafast laser series is your guarantee of success!
LASER CUTTING PROCESS
Laser cutting is a modern and widely used material processing technique. The cutting tool in this technique is a laser beam with a high energy density that cuts the material.
Course of the laser cutting process
The process is based on the interaction of the laser beam at its focal point, where the power is at its highest, causing rapid melting, vaporisation, ablation and heating of the material to the ignition temperature. The point where the beam hits the material is blown by a fast-flowing gas that removes the molten material along the axis of the beam.
| LASER POWER | 100 W (RECI W2 tube) |
| WORKING AREA | 700 x any / any x 500 mm |
| DIMENSIONS | 1250x870x900 mm |
| WEIGHT | 205 kg |
| POSITIONING ACCURACY | ± 0.05 mm |
| VOLTAGE | 230V |
| POWER | 800W |
| OPERATING TEMPERATURE | 0–45 ℃ |
| OPERATING SYSTEM | Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit) |
| INPUT FILE FORMATS | PLT, AI, DST, DXF, BMP |
| COMPATIBLE SOFTWARE | CorelDraw, AutoCAD, Photoshop |
| DRIVE TYPE | Stepper motors |

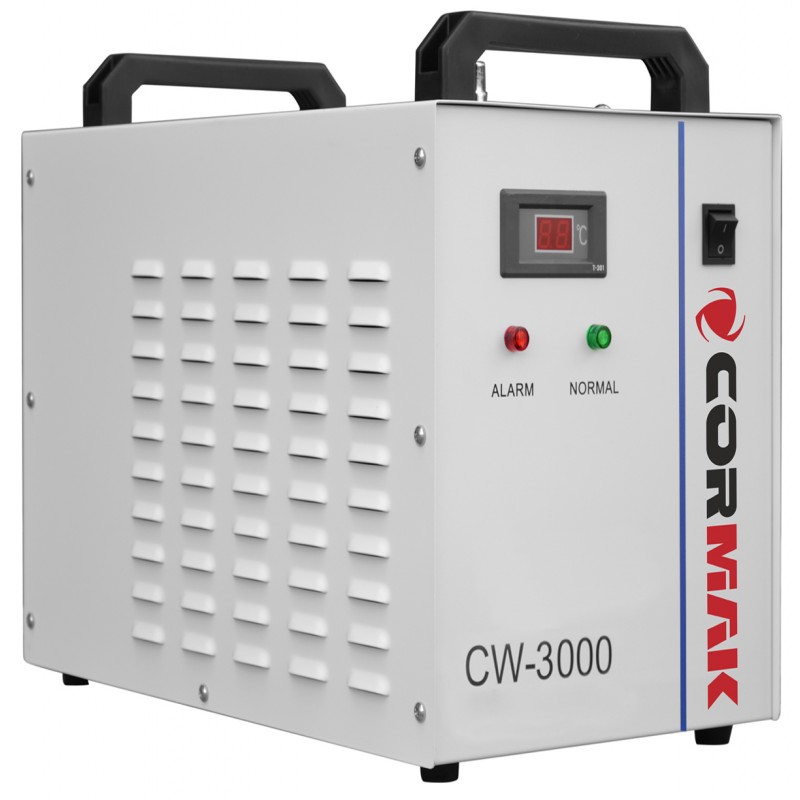

| TUBE COOLING | Chiller CW3000 |
| MATERIAL COOLING | Air |
Equipped with a cooling medium which, once the fluid reaches the alarm temperature, rapidly cools the laser tube system via the built-in compressor unit.
Four-side material feeding allows you to cut and engrave large-format workpieces.
American optics from American Photonics. Proven 14% higher transmission compared to other optical systems. High-durability mirrors and aspheric focusing lenses made by II-VI, USA.
High sharpness and high transmission rate. These lenses not only ensure top device quality but also maintain long-term optical system performance with high efficiency and low cost.
Includes both a knife table and a honeycomb table.
Wood, acrylic, plastics, textiles, paper, leather, rubber, and other non-metallic materials.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
▶
