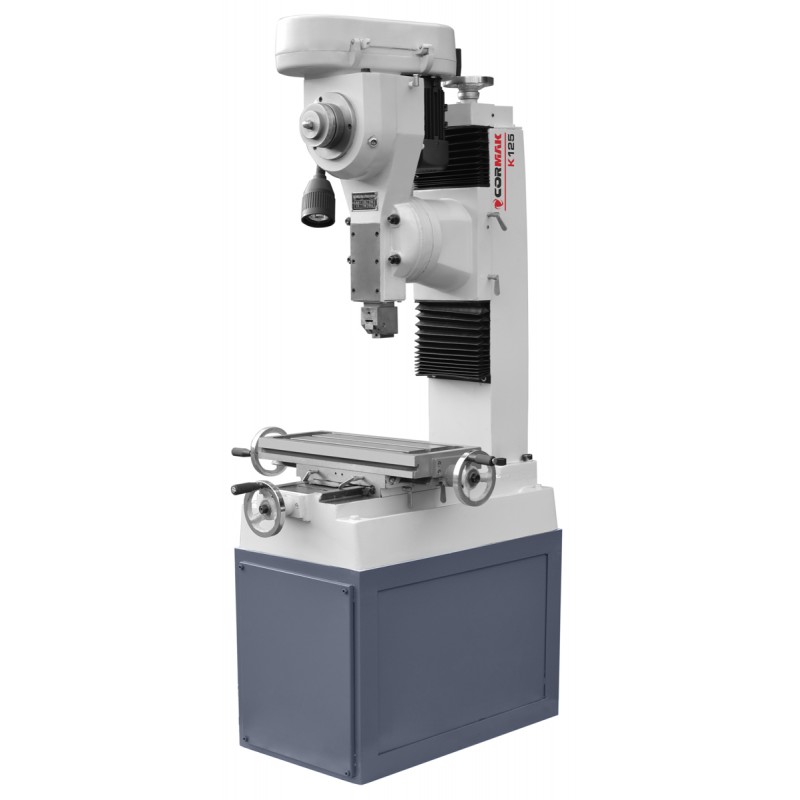

Metal Slotting Machine CORMAK K125

Metal Slotting Machine CORMAK K125 is an advanced machine designed for precise machining of internal and external surfaces, including keyways. The machine ensures high accuracy and efficiency thanks to its robust construction and adjustable working parameters, making it a reliable tool in industrial environments. Its key advantage lies in its adaptability to a wide range of machining tasks, reducing downtime and maximising productivity.

Main advantages of the machine

Metal Slotting Machine CORMAK K125 features a number of technical characteristics that directly affect its efficiency and durability. The list below outlines the main benefits resulting from the machine’s design and parameters, enabling users to achieve optimal results in metalworking.

• Hardened and ground guides: Ensure minimal wear and high movement accuracy, guaranteeing repeatable machining even under intensive use.
• Tilting slotting head within +/- 30°: Enables angled machining, increasing the range of operations without additional settings.
• Built-in lubrication system: Automatically reduces friction in key components, extending the machine’s service life and lowering maintenance costs.
• Adjustable stroke speed – 6 settings: Allows precise adjustment to the material hardness, optimising both performance and surface finish.
• Rigid bed construction: Ensures stability during operation, minimising vibration and dimensional errors in finished parts.
• Efficient cooling system: Maintains optimal temperature of both tools and workpieces, preventing thermal deformation and extending tool life.

Design and technology

Metal Slotting Machine CORMAK K125 has been engineered with advanced technology, focusing on durability and precision. The structure consists of high-quality components ensuring reliable operation under industrial conditions. Below are the key design elements.

Bed and guideway structure

The machine bed is made of high-rigidity cast iron, eliminating deformation under load. Hardened and ground guides ensure smooth table movement with minimal clearance, which is crucial for maintaining dimensional tolerances at the micrometre level.

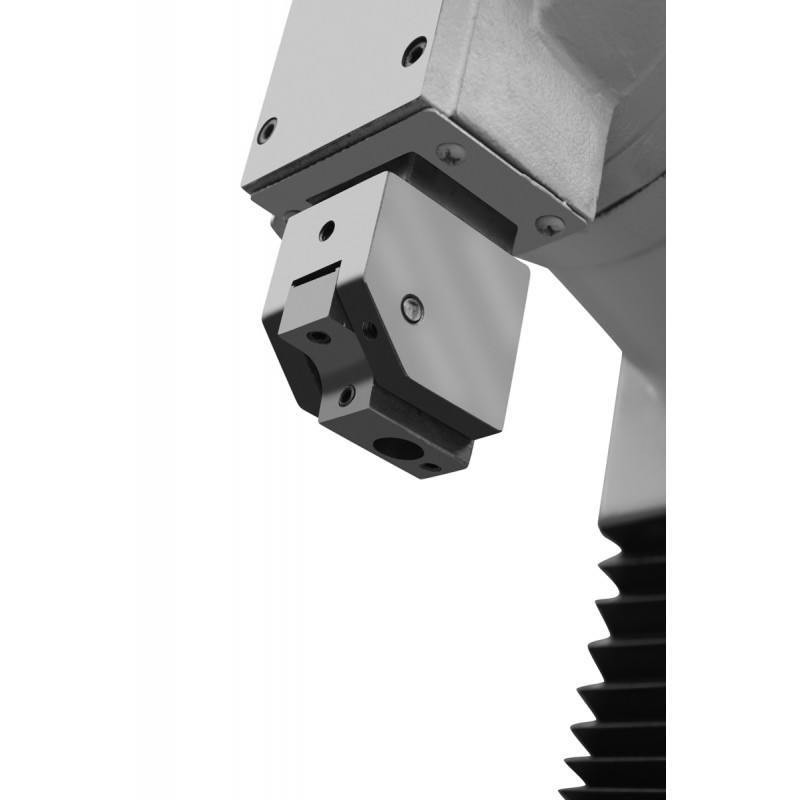

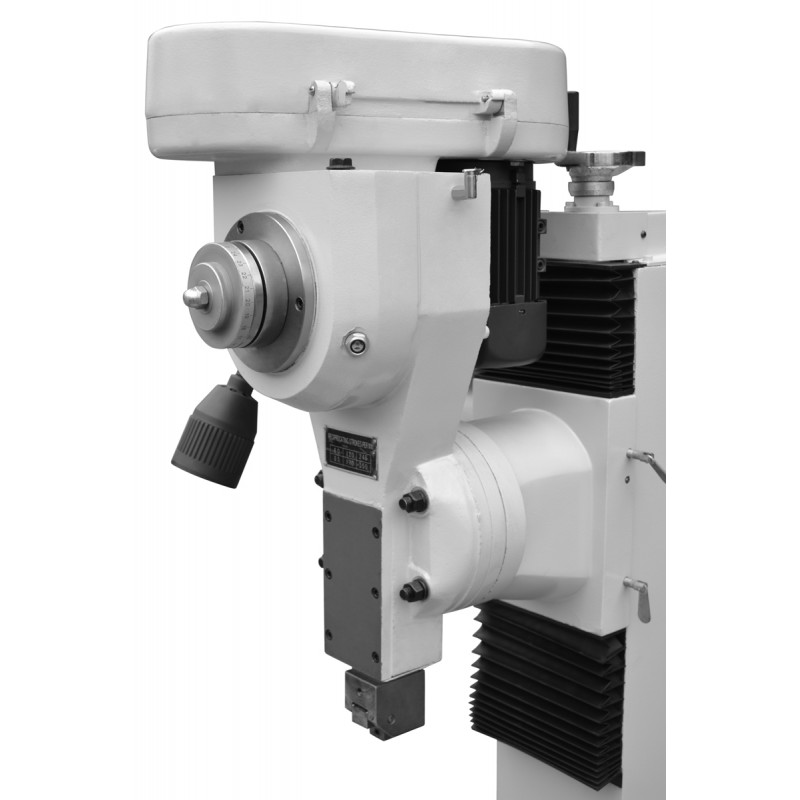

Spindle and head quality

The slotting head can rotate 90° and tilt +/- 30°, allowing versatile machining. The spindle equipped with precision bearings ensures stable strokes up to 125mm, directly influencing the quality of grooves and surfaces.

Cooling and lubrication system

The integrated lubrication system automatically doses oil to friction points, reducing wear by up to 50% compared to models without this feature. The cooling system prevents overheating, maintaining constant machining parameters.

Motor and drive system

The 0.37kW motor with 6-step speed regulation (from 60 to 350 strokes/min) provides optimal power for machining steel, aluminium and other metals, minimising energy consumption while maintaining high performance.

Precision and performance

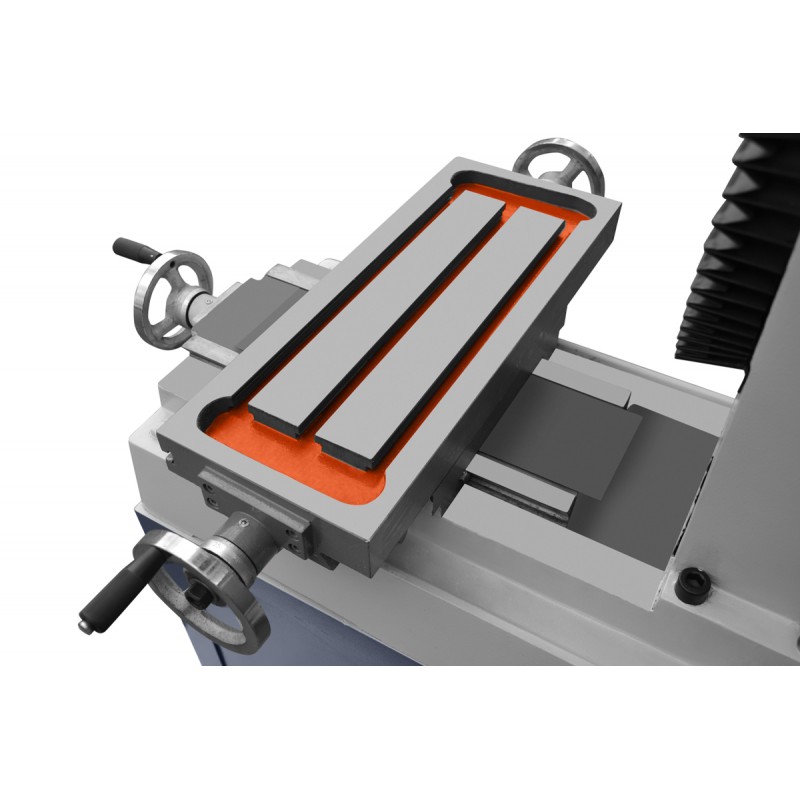

Thanks to its advanced design, the Metal Slotting Machine CORMAK K125 achieves high machining accuracy, with tolerances below 0.01mm depending on the settings. Adjustable stroke speed allows adaptation to the material’s properties, increasing efficiency by 20–30% compared to fixed-speed machines. The stable table (500x200mm) and travels in X/Y axes (220mm) and Z axis (200mm) enable machining of complex parts without compromising quality, reducing material waste and rework time.

Applications

Metal Slotting Machine CORMAK K125 is intended for repair shops, toolrooms and small or single-unit production. Ideal for machining keyways, internal and external planes in machine parts such as gears, shafts and moulds. The machine is well-suited for automotive, mechanical engineering and precision mechanics industries, where high accuracy and repeatability are essential.

Standard equipment

• Set of slotting tools: A set of blades with different profiles for immediate operation.
• Lubrication system: Built-in for automatic maintenance.
• Control panel: Intuitive interface for parameter adjustment.
• Machine base: Stable structure with floor-mounting capability.

Optional equipment

• Additional specialised blades: For machining hard metal alloys.
• Digital position display system: For increased measurement precision.
• Cooling set with pump: For intensive machining.
• Table extension: For processing larger workpieces.

Technical specifications

Contact us for more information or to order the Metal Slotting Machine CORMAK K125 – we ensure fast delivery and professional technical support.
