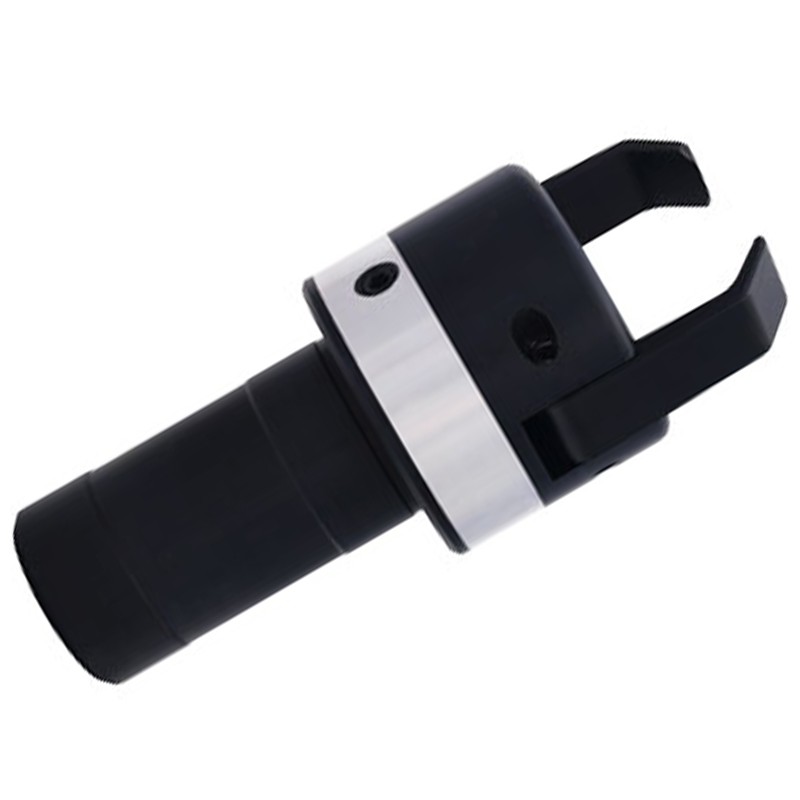

Initially, the gripper was designed and manufactured to automate operations and reduce the production time of workpieces.
What are the advantages of our gripper?
- All components manufactured by our company are produced using modern machinery and technology, operated by experienced technicians and subject to strict quality control.
- Clamping devices are professionally heat-treated, extending their lifespan and maintaining precision over time.
- The gripper increases the efficiency of the lathe and significantly reduces the time required to reposition the material.
- Completely autonomous operation — does not require any additional systems such as coolant, water, or compressed air.
- The adjusting screw allows for an immediate setup of the required diameter within seconds.
- The gripper is designed to be mounted directly in the tool head socket.
| MODEL: |
|---|
| Parameters: | GC-50-5/42-W20 | GC-50-5/42-W25 | GC-50-5/42-W32 | GC-50-5/42-V20 | GC-50-5/42-V30 | GC-50-5/42-V40 | GC-50-5/42-T16X16 | GC-50-5/42-T20X20 | GC-50-5/42-T25X25 | GC-50-5/42-T32X25 |
|---|
| Assembly using WELDON chucks |
20 mm |
25 mm |
32 mm |
|
|
|
|
|
|
|
| Assembly using VDI chuck |
|
|
|
VDI 20 |
VDI 30 |
VDI 40 |
|
|
|
|
| Assembly in square chucks |
|
|
|
|
|
|
16×16 |
20×20 |
25×25 |
32×25 |
| Range of bars drawn |
5–42 mm |
