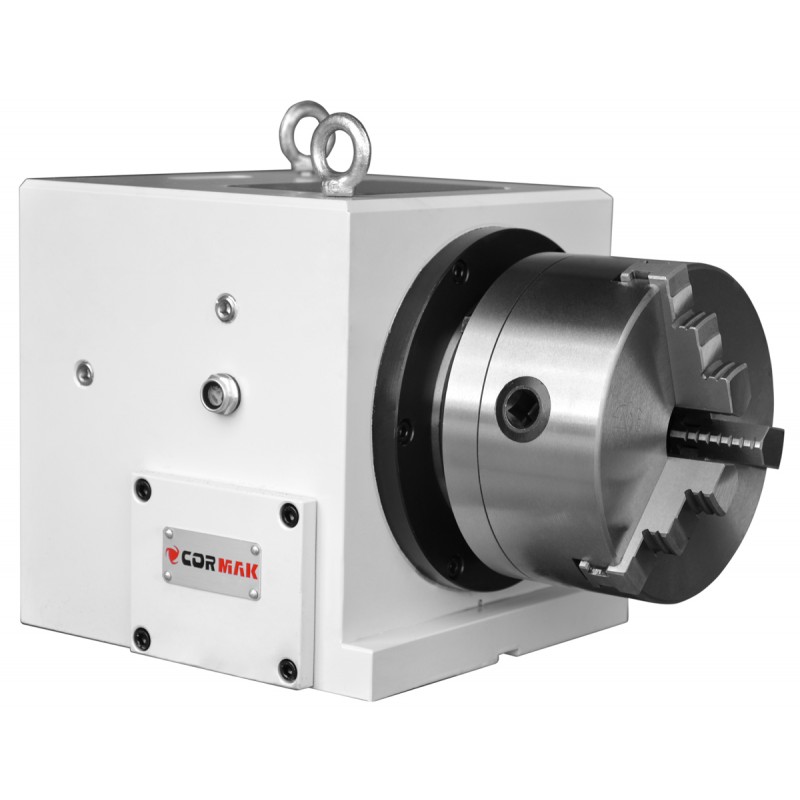

CORMAK 4th Axis CNC Rotary Indexer is a precision device designed for component machining in CNC systems. Available in three versions differing in lathe chuck diameter (Ø125 mm, Ø160 mm), centre height (110 mm, 125 mm, 145 mm) and maximum table load (from 100 kg horizontally and 50 kg vertically to 150 kg horizontally and 80 kg vertically).
CORMAK 4th Axis CNC Rotary Indexer is a precision unit enabling machining of components within CNC systems. It is available in three versions that differ by lathe chuck diameter (Ø125 mm, Ø160 mm), centre height (110 mm, 125 mm, 145 mm) and maximum table load (from 100 kg horizontally and 50 kg vertically to 150 kg horizontally and 80 kg vertically).
All models are fitted with a worm gear with a 1:90 ratio and require an air pressure range of 4–6 bar. The maximum rotational speed is 11.1 rpm, and the tailstock sleeve diameter is Ø16 mm or Ø20 mm depending on the model. The unit weight ranges from 50 kg to 90 kg.

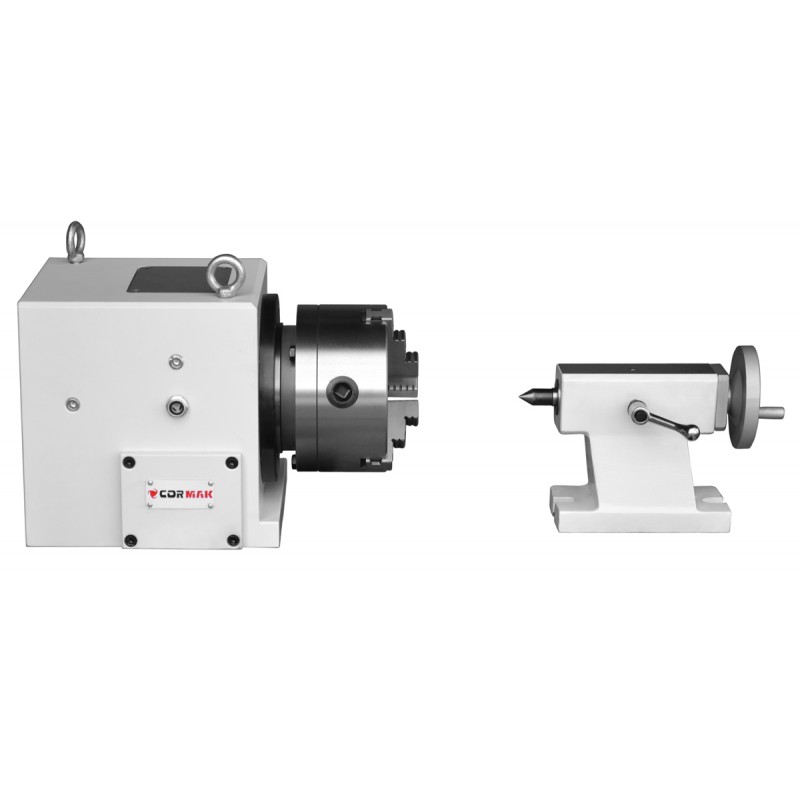

The CORMAK 4th Axis CNC Rotary Indexer with Tailstock is an ideal solution for workshops and production plants focused on high-precision machining, where rotation of components in CNC systems is required in multiple positions.
By investing in the CORMAK 4th Axis CNC Rotary Indexer with Tailstock, you gain a reliable tool for precision CNC machining of complex parts.
| Technical parameters | |||
| Centre height | 110 mm | 125 mm | 145 mm |
| Lathe chuck | Ø125 mm | Ø160 mm | Ø160 mm |
| Table T-slot width | 10 mm | 10 mm | 100 mm |
| Worm gear ratio | 1 : 90 | 1 : 90 | 1 : 90 |

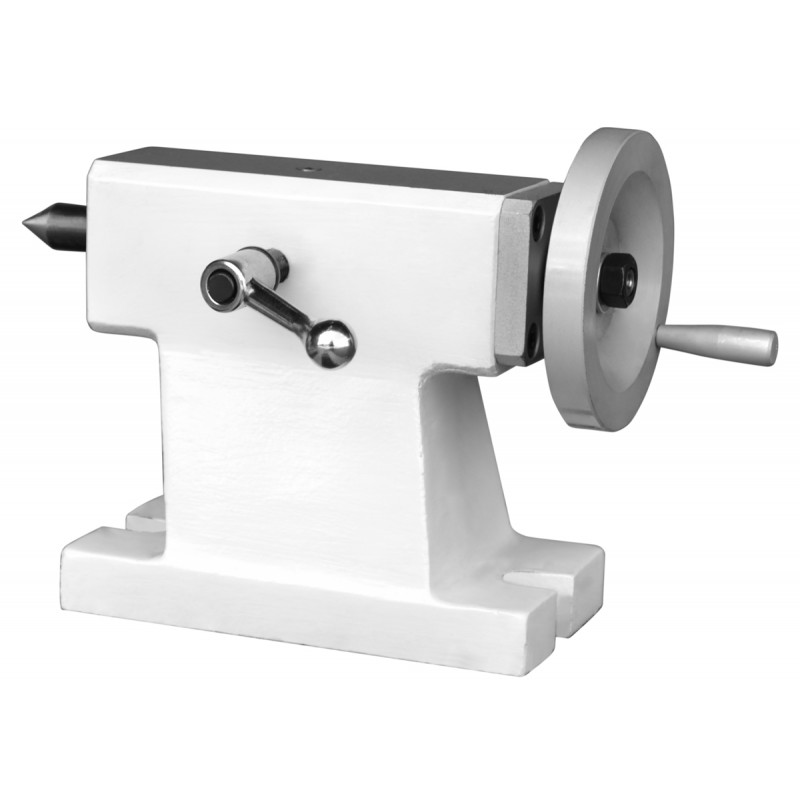

| Tailstock sleeve diameter | Ø16 mm | Ø20 mm | Ø20 mm |
| Maximum speed | 11.1 rpm | 11.1 rpm | 11.1 rpm |
| Air pressure | 4 – 6 bar | 4 – 6 bar | 4 – 6 bar |
| Maximum table load, horizontal | 100 kg | 150 kg | 150 kg |
| Maximum table load, vertical | 50 kg | 80 kg | 80 kg |
| Weight | 50 kg | 80 kg | 90 kg |
