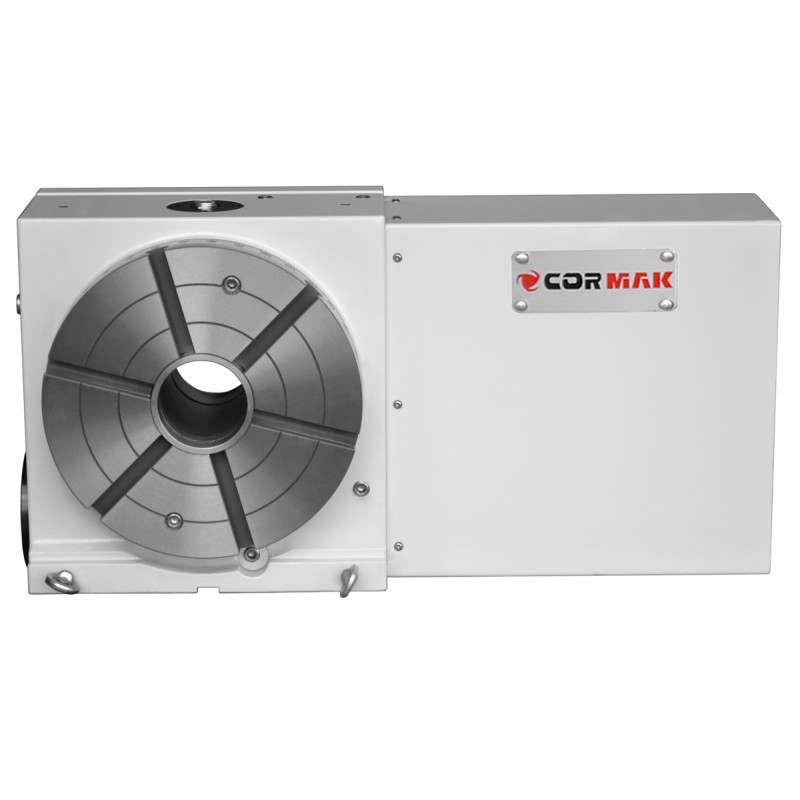

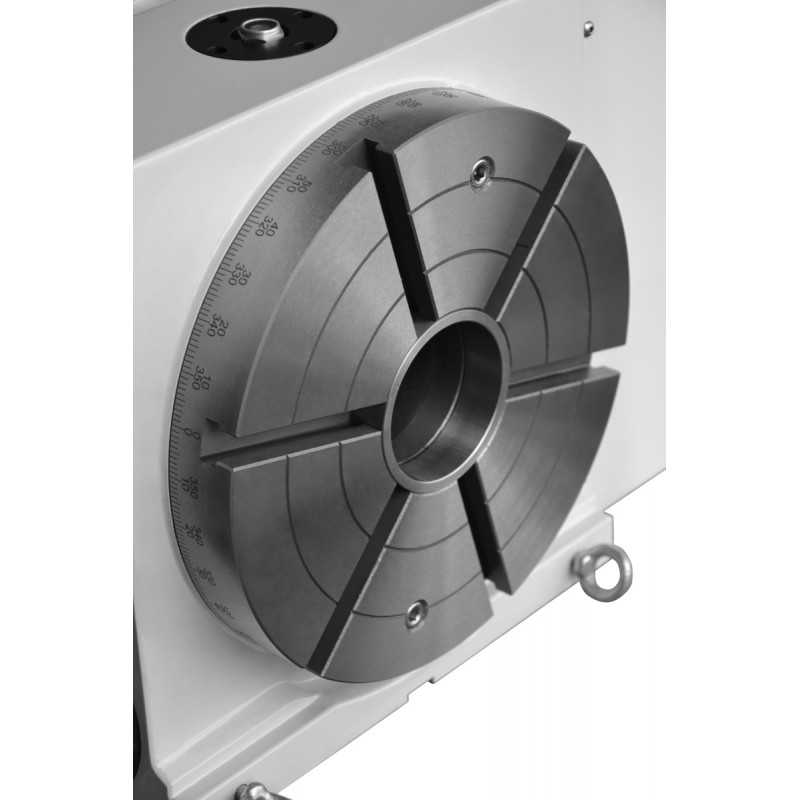

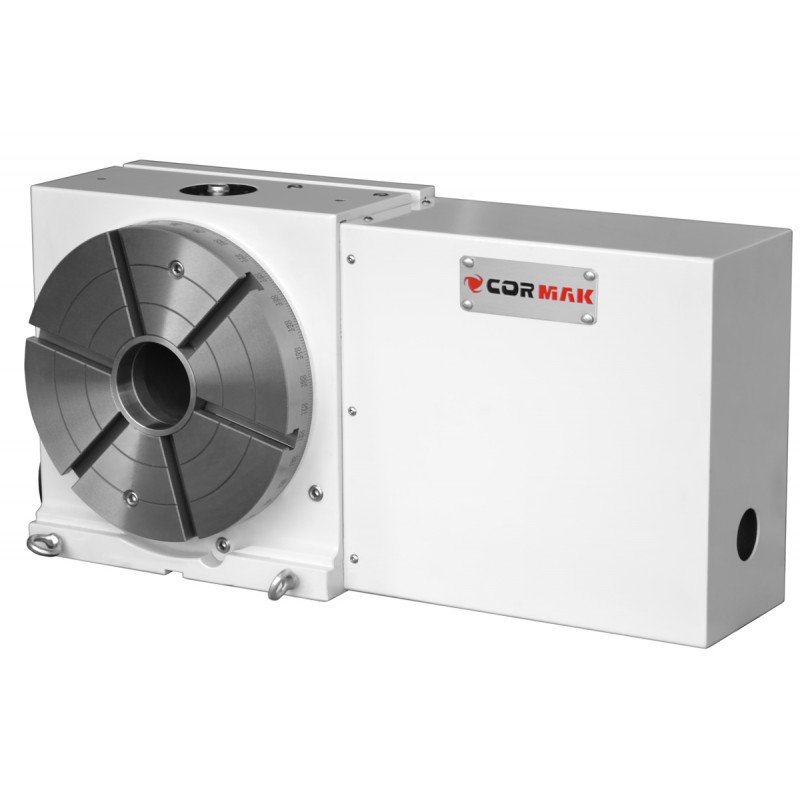

CNC Rotary Table CORMAK is a precision device designed for machining operations in CNC systems. Available in diameters from Ø160 mm to Ø630 mm, it ensures stability and accuracy in turning, milling, and drilling processes.
Equipped with a worm gear transmission with a ratio from 1:80 to 1:150, it allows precise angular positioning. The table’s maximum load ranges from 200 kg to 800 kg, and available models feature motor power from 0.9 kW to 2.1 kW. It is an ideal solution for professional workshops requiring reliable tools for machining components of various diameters.
The CNC Rotary Table CORMAK is an excellent choice for professional CNC workshops requiring precise angular positioning during turning, milling, and drilling operations.
By investing in the CNC Rotary Table CORMAK, you gain a reliable and precise tool for machining parts of various diameters in your CNC workshop.
| Technical Parameters | |||||||
| Table diameter | Ø160 mm | Ø210 mm | Ø250 mm | Ø315 mm | Ø400 mm | Ø500 mm | Ø630 mm |
| Centre height | 135 mm | 140 mm | 160 mm | 210 mm | 260 mm | 310 mm | 400 mm |
| Total thickness | 170 mm | 180 mm | 190 mm | 210 mm | 250 mm | 290 mm | 350 mm |
| Bore diameter | Ø20 mm | Ø25 mm | Ø30 mm | Ø40 mm | Ø50 mm | Ø60 mm | Ø70 mm |
| T-slot width | 4–12 mm | 4–12 mm | 6–12 mm | 6–14 mm | 6–14 mm | 6–18 mm | 6–18 mm |
| Worm gear ratio | 1:80 | 1:90 | 1:90 | 1:90 | 1:120 | 1:150 | 1:120 |
| Maximum speed | 16.6 rpm | 16.6 rpm | 11.1 rpm | 11.1 rpm | 11.1 rpm | 11.1 rpm | 11.1 rpm |
| Motor power | 0.9 kW | 0.9 kW | 1.0 kW | 1.0 kW | 2.1 kW | 2.1 kW | 2.1 kW |
| Maximum horizontal load | 200 kg | 200 kg | 250 kg | 350 kg | 500 kg | 600 kg | 800 kg |
| Maximum vertical load | 75 kg | 75 kg | 150 kg | 175 kg | 300 kg | 350 kg | 400 kg |
| Weight | 55 kg | 67 kg | 110 kg | 200 kg | 325 kg | 650 kg | 1,125 kg |
