RAYTOOLS 750W Fiber Laser Cutting Head | CORMAK
RAYTOOLS 750W Fiber Laser Cutting Head | CORMAK
RAYTOOLS 750W Fiber Laser Cutting Head | CORMAK
RAYTOOLS 750W Fiber Laser Cutting Head | CORMAK
RAYTOOLS 750W Fiber Laser Cutting Head | CORMAK
RAYTOOLS 750W Fiber Laser Cutting Head | CORMAK
RAYTOOLS 750W Fiber Laser Cutting Head | CORMAK
RAYTOOLS 750W Fiber Laser Cutting Head | CORMAK
Category: Raytools FIBER Laser Cutting Heads

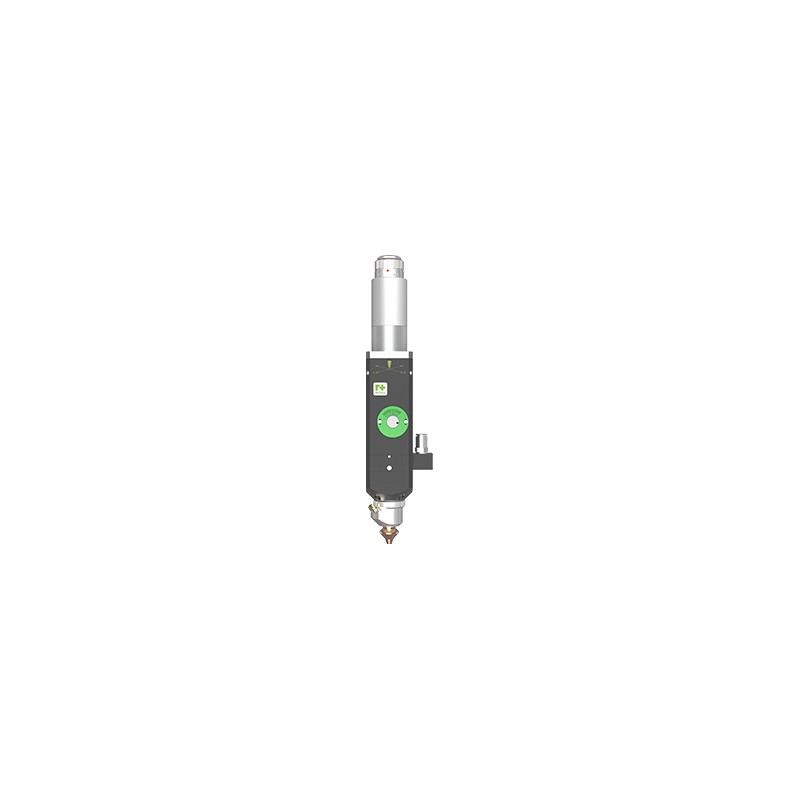

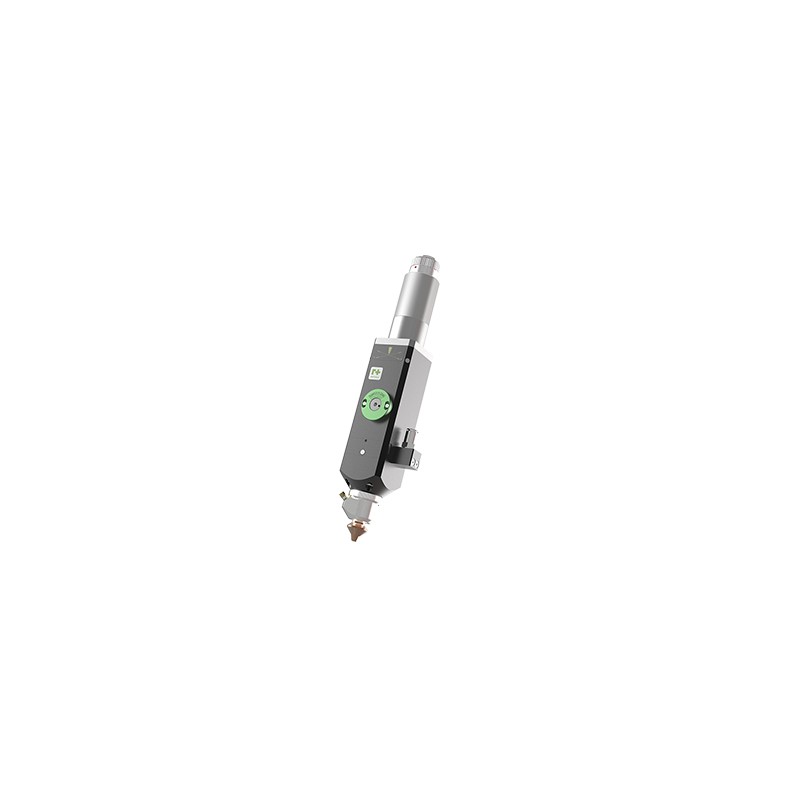

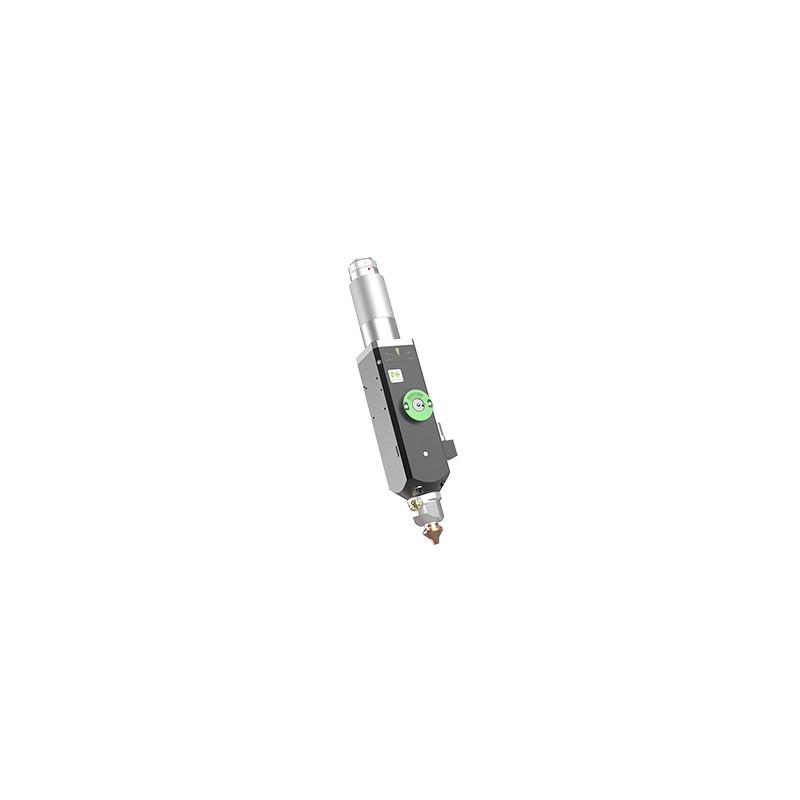

RAYTOOLS 750W Laser Cutting Head

Manufacturer: CORMAK

RAYTOOLS laser heads are manufactured in Switzerland and designed for industrial applications. Suitable for medium- and high-power fiber lasers. The specialized dustproof housing prevents contamination of the collimating lens, significantly extending its service life and ensuring high precision and cutting performance. The head features an additional upper protective glass for the collimating unit, while the lower protective glass has been fully redesigned with an added dust shield.

tax included €2,975.00
excl. tax €2,500.00
Not available for purchase
tax included €2,975.00
excl. tax €2,500.00
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
RAYTOOLS 750W Laser Cutting Head
excl. tax €2,500.00
tax included €2,975.00

Related categories

Accessories & Spare Parts FIBER Laser Cutting Heads Laser and Plasma Technologies Products Raytools FIBER Laser Cutting Heads

Description

RAYTOOLS laser heads are manufactured in Switzerland and designed for industrial applications. Suitable for medium- and high-power fiber lasers.
The specialized dustproof housing prevents contamination of the collimating lens, significantly increasing its lifespan and enhancing the precision and efficiency of the laser beam.
The head is equipped with an additional upper protective glass for the collimating assembly. At the same time, the lower protective glass design has been completely modernized with an added dustproof shield.
The dual protective structure significantly simplifies maintenance during optical replacement, minimizing the risk of lens contamination to nearly zero.
  • Optimized optical configuration and smooth, efficient airflow design.
  • Focus adjustment via precision knob — accurate and flexible; adjustment range ±5 mm (total 10 mm).
  • Drawer-type lens mount for quick and easy access to the protective glass.
  • Shortest focal length of 100 mm ensures higher efficiency.
  • Compatible with various fiber lasers through multiple optical interfaces.
Rated power ≤ 750 W
Aperture cleaning 25 mm
Protective glass φ 27.9 mm × 4.1 mm
Pressure ≤ 20 bar
Weight 1.5 kg
