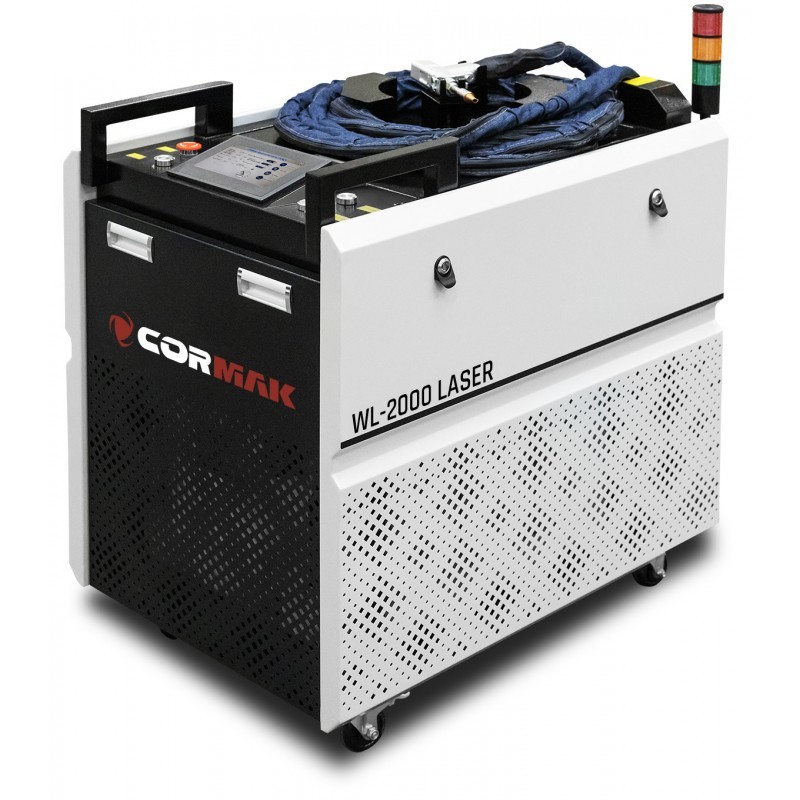

How does a handheld laser welder work?

A handheld laser welder is a modern device used for the precise joining of metallic materials, which has been gaining increasing popularity in industry and workshops in recent years. Thanks to the use of laser technology, it is possible to achieve excellent results whilst maintaining high productivity, aesthetic quality and process repeatability.

Compared to traditional welding methods, such as MIG, MAG or TIG, this technology offers entirely new possibilities in terms of quality and process control.

How does a laser welder work?

The basic principle of operation of a handheld laser welder is based on the use of the energy carried by the laser beam. The device generates a concentrated beam of light which, when directed onto the surface of the material, causes it to melt locally. This process results in a permanent bond between metal components.

The key aspect here is the focusing of the beam onto a very small area. This ensures that energy is delivered exactly where it is needed, thereby minimising heat build-up in the entire component. The result is a very narrow heat-affected zone, which leads to less distortion and a higher-quality weld.

It is precisely this mechanism that demonstrates how a laser welder works — precisely controlled energy enables repeatable, high-quality results.

The design of a handheld laser welder

A modern handheld laser welder consists of several basic components which, together, ensure the process runs smoothly:

• laser source — generates energy in the form of a beam, most commonly via an optical fibre;
• welding head — enables the operator to carry out the process;
• cooling system — responsible for maintaining a stable operating temperature;
• control system — allows parameters such as power or welding speed to be adjusted;
• an optional automatic wire feeder — used when welding with filler material.

Each of these components has a direct impact on the high quality of the final result and the stability of the machine’s operation.

How does a handheld laser welder work, step by step?

The laser welding process can be divided into several stages:

1. Material preparation

The surface of the metal must be properly cleaned. Removing dirt, grease or rust is essential for achieving a high-quality weld.

2. Setting the operating parameters

The operator selects parameters such as laser power and welding speed. The correct settings help to optimise the process and minimise material wastage.

3. Generating the laser beam

The machine activates the laser source, which emits energy in the form of a laser beam.

4. Focusing the energy onto the material

The beam is precisely focused, causing the metal at the welding site to melt rapidly.

5. Creating the weld

The operator guides the head, and the laser beam joins the components, creating a durable and aesthetically pleasing weld.

6. Cooling and stabilisation

Once the process is complete, the material cools down and the weld achieves the required mechanical strength.

Advantages of laser welding

The key advantages of laser welding mean that this technology is finding increasingly widespread application:

• high precision — the ability to work on very thin components;
• very good weld quality — smooth and aesthetically pleasing joints;
• limited heat-affected zone — less material distortion;
• high productivity and fast welding speed;
• low noise levels compared to other methods;
• less need for post-welding finishing;
• the possibility of process automation.

Thanks to these features, laser welders are increasingly being chosen in environments where high-quality workmanship is required.

Applications of handheld laser welders

Hand-held laser welding machines are used across a wide range of industrial and service sectors. They are particularly well-suited to processes requiring precision and a high-quality finish.

The most common applications include:

• the manufacture of steel structures;
• stainless steel welding;
• the automotive industry;
• the manufacture of decorative and precision components;
• repair and maintenance workshops.

This technology is particularly useful for thin materials, where other methods may cause overheating or deformation.

Laser welding versus traditional welding methods

Compared to traditional welding methods, a handheld laser welder offers greater control over the process and a higher quality of finish. By minimising heat input into the material, it is possible to achieve more aesthetically pleasing and durable joints.

Furthermore, the laser welding process is faster, which translates into greater efficiency in mass production. In many cases, it also eliminates the need for additional weld finishing.

Efficiency and significance in modern manufacturing

Modern industrial laser welding machines are designed for intensive use. Maintaining stable operating parameters ensures repeatability and high-quality welds, even during large-scale production runs.

In practice, this means:

• shorter project lead times;
• increased production efficiency;
• fewer errors;
• reduced material waste.

What should you look for when choosing a laser welder?

When choosing the right handheld welder, it is worth considering several key factors:

• the power and adjustment range of the machine;
• the build quality of the components;
• the efficiency of the cooling system;
• ergonomics;
• availability of after-sales service and spare parts.

Choosing the right model has a direct impact on the unit’s efficiency and durability.

Summary

A handheld laser welder is a modern solution enabling the precise and efficient joining of metallic materials. Thanks to the use of laser technology, it is possible to achieve very high-quality welds whilst minimising distortion and energy loss.

The combination of features such as high precision, operational stability and the use of advanced technologies means that laser welders are becoming the standard in modern manufacturing. In many cases, they effectively replace traditional methods, offering better results and greater control over the process.
