Invest in precision and efficiency with our magnetic surface grinder featuring a 304x152 mm working area. Ideal for small workspaces, this compact machine delivers a solid solution for demanding grinding applications.
The Magnetic Surface Grinding Machine 304x152 is an ultra-compact grinder designed for precision machining of small metal parts. Its lightweight yet robust design, combined with advanced technology, ensures high machining accuracy and reliability in demanding industrial environments.
The Magnetic Surface Grinding Machine 304x152 is the perfect solution for workshops and production plants that need precision grinding in a highly compact format. Designed for professionals, it combines advanced features such as precision linear guides and a permanent magnetic table with a rigid frame for consistent performance and efficiency. With its small footprint (1000x700x830 mm) and weight of only 260 kg, it is an excellent choice for small workshops or areas with limited space, where mobility and ease of installation are key. Main benefits include:

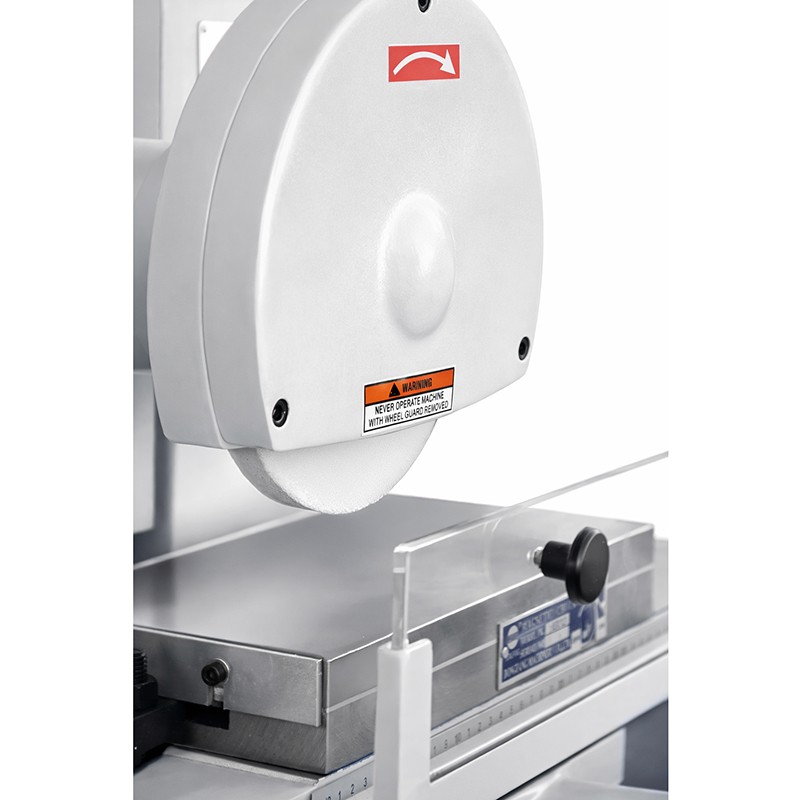

The Magnetic Surface Grinding Machine 304x152 features a solid 260 kg structure that ensures stability during machining. Precision linear guides minimise vibrations, providing smooth table travel and superior surface finish. The spindle is driven by a 0.55 kW motor and works with a 180x13x31.75 mm grinding wheel, ensuring efficient finishing of small parts.
The machine offers a maximum longitudinal travel of 340 mm and cross travel of 170 mm, allowing machining of parts of various sizes. The maximum distance from spindle to table is 210 mm, providing flexibility when working with different components.
The magnetic surface grinder is equipped with a cooling system that prevents overheating of both the workpiece and the grinding wheel. The permanent magnetic table measuring 150x300 mm ensures secure clamping of parts, enhancing safety and accuracy, especially during small-part grinding operations.
The Magnetic Surface Grinding Machine 304x152 guarantees excellent surface quality through precise manual feed control and a stable frame design. The 150x300 mm clamping area and spindle speed of 2800 rpm allow efficient grinding of small components with minimal tolerances — essential for high-precision production.
The Magnetic Surface Grinding Machine 304x152 is intended for industrial plants and precision workshops requiring accurate machining of small components. It is widely used in:
|
Technical parameters | |
|---|---|
| Worktable size | 152x304 mm |
| Max longitudinal travel | 340 mm |
| Max cross travel | 170 mm |
| Max distance spindle/table | 210 mm |
| Clamping surface size | 150x300 mm |
| Magnetic table type | Permanent magnet |
| Spindle speed | 2800 rpm |
| Grinding wheel size | 180x13x31.75 mm |
| Spindle motor power | 0.55 kW |
| Voltage | 230 V |
| Max table load | 30 kg |
| Total height | 1450 mm |
| Weight | 260 kg |
| Machine dimensions | 1000x700x830 mm |
Boost your production efficiency with the Magnetic Surface Grinding Machine 304x152. Contact us for a detailed quotation or to schedule a demonstration. Choose precision and reliability — choose CORMAK surface grinders!
