Welding Cobot CORMAK R950 6-Axis Automatic Set with 500A Dual Pulse Welder

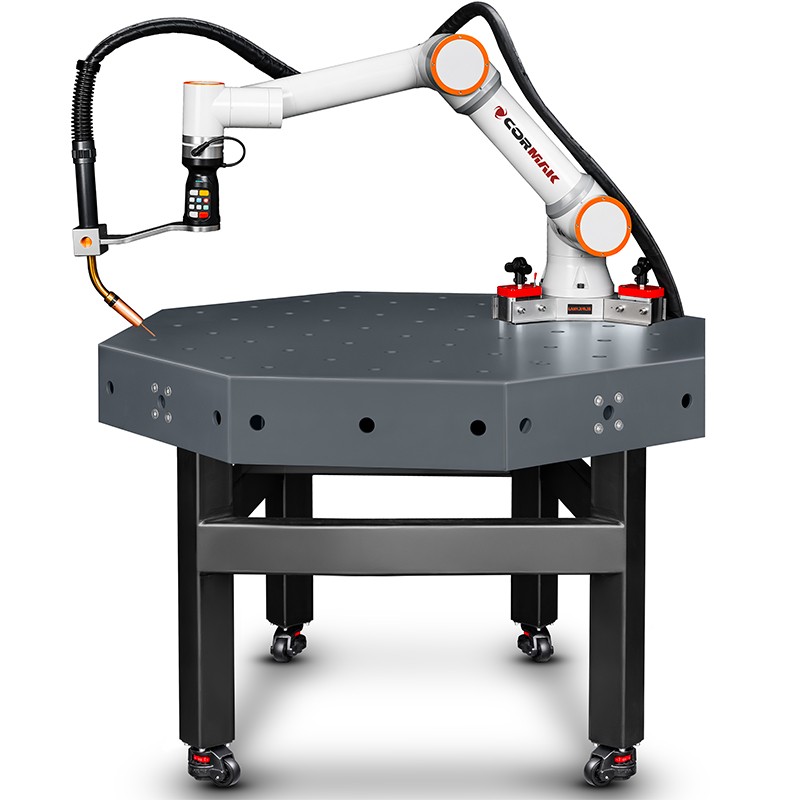

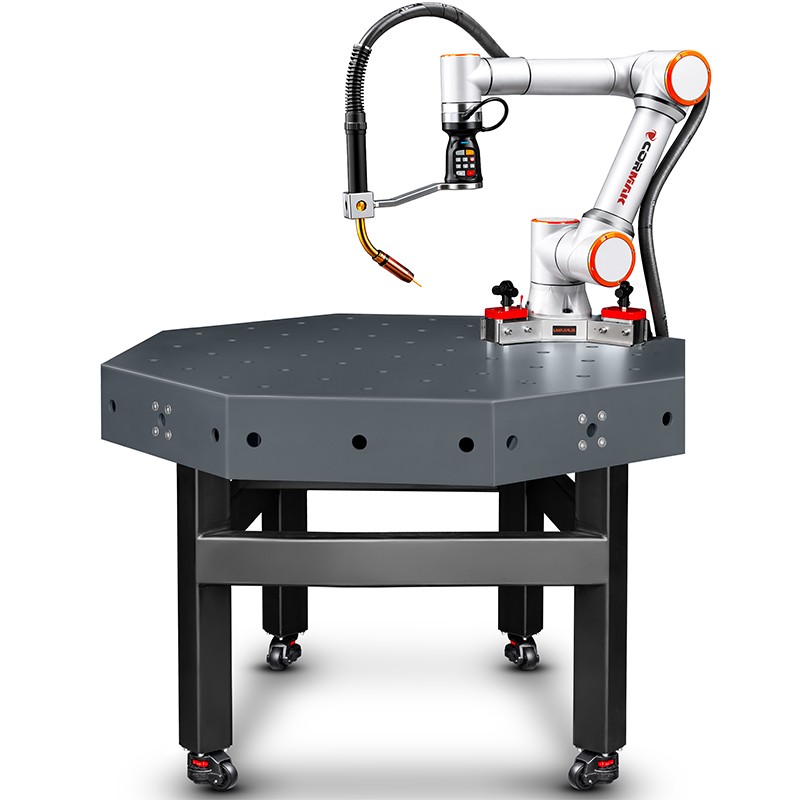

CORMAK R950 WELDING ROBOT – a 6-axis cobot supplied with a welding machine

The CORMAK R950 WELDING ROBOT is a state-of-the-art 6-axis collaborative robot designed for the automation of welding and production processes. The kit includes the robot arm, a control station, a complete set of cabling, a safety button and a 500A Dual Pulse welding machine, making it a complete solution ready for deployment on the workstation.

Its compact design, high repeatability and ease of integration make the robot well-suited to both new workstations and the modernisation of existing production lines. The robot’s specifications include a payload of 5 kg, a working reach of 922 mm and a repeatability of ±0.02 mm.

Key benefits of the kit

• A complete welding kit: robot, control station, cabling, safety button and a 500A Dual Pulse welder.
• Six axes of movement ensure operational flexibility and the ability to execute complex trajectories.
• A payload of 5 kg allows the robot to handle a welding torch and lightweight work tools.
• A working reach of 922 mm enables work on various types of workpieces and workstations.
• A repeatability of ±0.02 mm guarantees process stability and high-quality operations.
• The 500A Dual Pulse welding machine supports MIG/MAG, MMA and TIG Lift welding methods.
• The Pulse and Dual Pulse functions help to achieve an aesthetically pleasing weld and better control over the welding process.
• The 4-roller wire feeder ensures stable feeding of the welding material.
• Extensive communication options: Modbus, Profinet, Ethernet and IO facilitate integration with automation systems.
• The compact design allows the robot to be deployed even in confined spaces.

Design and technology

The R950 ROBOT has been designed for use where repeatability, safety, space-saving and the ability to commission a workstation quickly are key. The aluminium and steel construction ensures durability, rigidity and operational stability during long-term use.

The robot can operate as a stand-alone welding station or as part of a larger automation system. Thanks to its 6-axis design, it is suitable for simple handling tasks as well as for more demanding manufacturing processes requiring high motion accuracy.

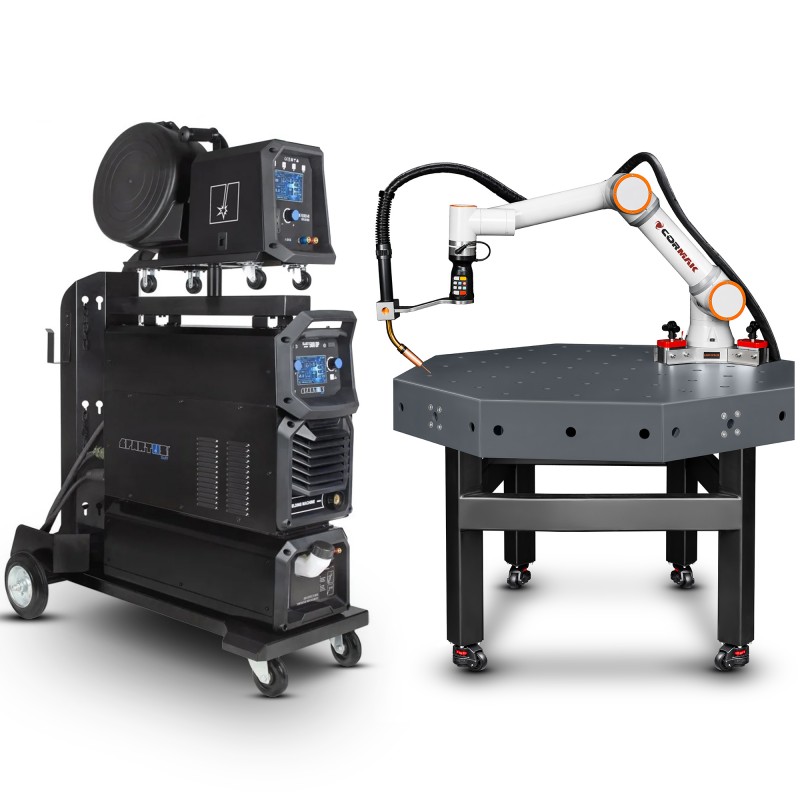

500A Dual Pulse welding machine included

The kit is equipped with a high-performance 500A Dual Pulse inverter welder designed for intensive use in workshops and industry. The unit operates on a 400 V power supply, offers MIG/MAG welding current in the range of 50–500 A, and supports Pulse, Dual Pulse, Synergy and brazing functions.

The 500A Dual Pulse welding machine is a powerful and versatile power source for working with steel, aluminium and materials suitable for brazing. Synergy mode simplifies parameter selection, whilst the Pulse and Dual Pulse functions help achieve a neater weld and better control over the welding process. The machine operates in MIG/MAG, MMA and TIG Lift modes.

Precision and efficiency

The robot’s high repeatability of ±0.02 mm ensures consistent quality in the welding and production processes. The robot is ideal for tasks requiring precise tool guidance, repetitive movements and stable operation over long periods.

Thanks to the kit including the 500A Dual Pulse welding machine, the workstation can be set up more quickly and the time required to implement automation can be reduced. This solution enables greater process repeatability, reduces the amount of manual labour and improves production organisation.

Applications

The CORMAK R950 WELDING ROBOT is ideal for the automation of welding, manufacturing and industrial processes. It can be used both in the mass production of components and in the modernisation of existing workstations.

• Welding of steel components
• Welding of aluminium components
• Brazing
• Operation of production workstations
• Pick and place
• Loading and unloading of components
• CNC machine operation
• Packaging and sorting
• Adhesive application
• Assembly and screwing
• Light manufacturing and laboratory processes

Standard equipment

• Robot arm
• Control station
• Cabling kit
• Safety button
• 500A Dual Pulse welding machine

Specifications of the 500A Dual Pulse welding machine

Key advantages of the CORMAK R950

• 6 axes of movement
• 5 kg payload
• Working reach 922 mm
• Repeatability: ±0.02 mm
• Typical TCP speed 1 m/s
• Can be mounted in any position
• Communication: Modbus, Profinet, Ethernet, IO
• Programming in C#, C++, Python, Java, ROS
• IP54 protection rating
• Compact design and weight of 22 kg

Technical specifications of the robot

Operating range of the axis

Why choose the CORMAK R950 WELDING ROBOT?

The CORMAK R950 WELDING ROBOT is a versatile solution for companies looking to improve repeatability, reduce manual labour and easily automate a welding or production station. Thanks to its compact design, low weight, high precision and extensive communication capabilities, the robot can be deployed across a wide range of industries.

Accessories, implementation and service

Our range also includes additional accessories for cobots, such as grippers, bases, communication modules and solutions for integration with specific production processes. We also offer training, implementation, technical support and servicing.

We provide Polish-language after-sales service and support at every stage of the robot’s commissioning and operation. We train operators and implement cobots in production facilities in line with the customer’s requirements.

Opt for automation, precision and repeatability in welding – choose the CORMAK R950 WELDING ROBOT, supplied as a set with a 500A Dual Pulse welding machine, and boost productivity at your facility.
