A robust diesel-powered forklift truck with a lifting capacity of 16 tonnes and a lift height of up to 4.5 metres, ideal for heavy industrial, warehouse, and port applications. Powered by a strong diesel engine rated at 231.2 HP and compliant with the EURO V emission standard. Equipped with fork side shift, adjustable fork width, and mast tilt, it ensures precise and safe load handling. Dual front pneumatic tyres provide excellent stability and traction even on difficult terrain. The operator cab is spacious, ergonomic, and offers excellent visibility. A reliable tool for demanding working conditions.

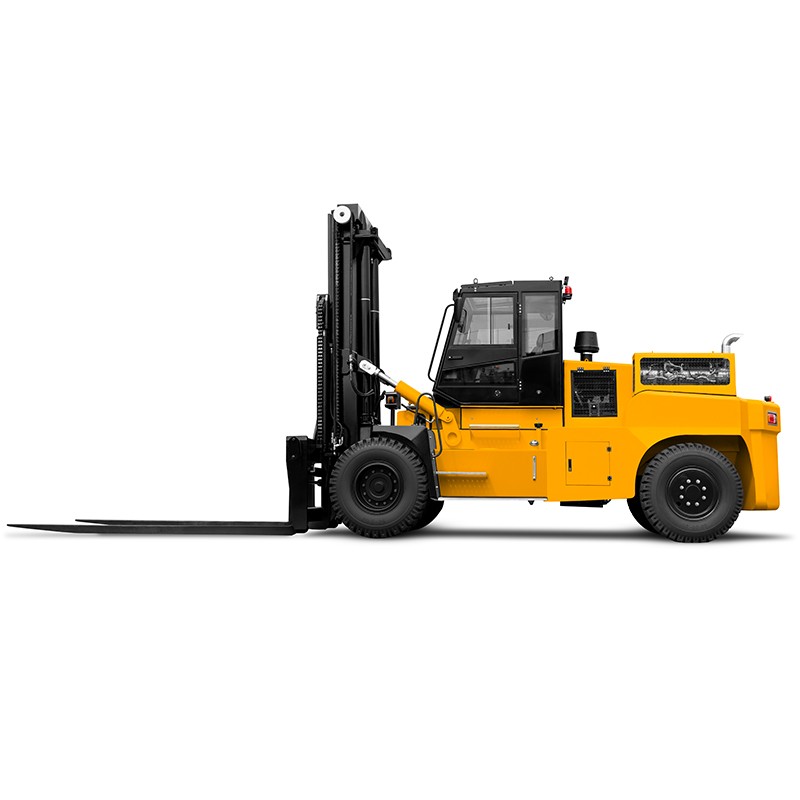

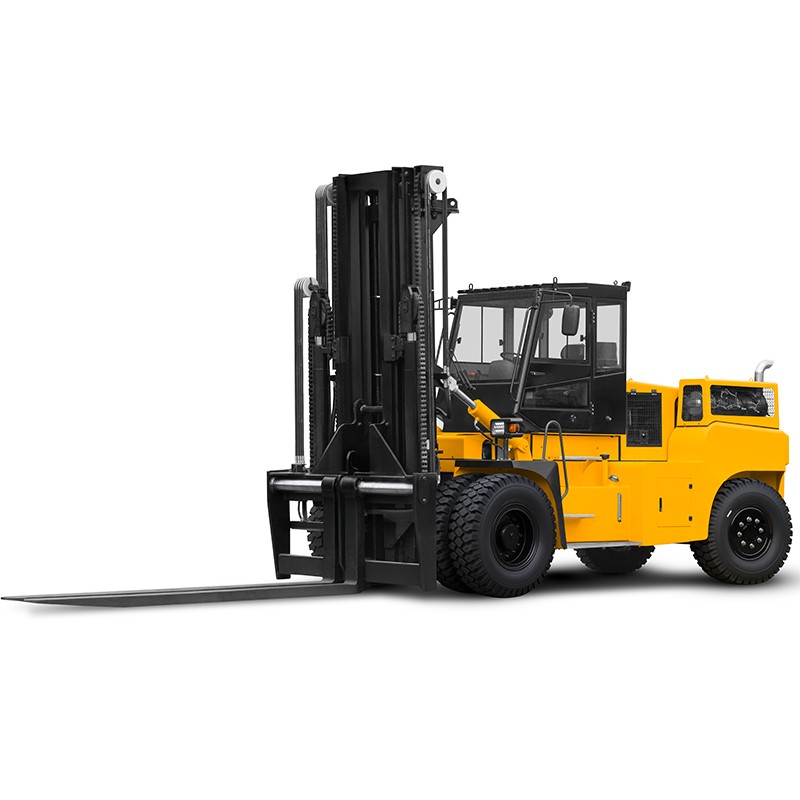

Diesel Forklift Truck 16t with a lift height of 4500 mm is an advanced machine designed for the most demanding applications in heavy industry, logistics, port terminals, and manufacturing plants. Equipped with a powerful diesel engine rated at 170 kW (231.2 HP) and an automatic transmission, it delivers reliability, efficiency, and compliance with stringent EURO V exhaust emission standards.
Main advantages of the Diesel 16t forklift truck
- Lifting capacity up to 16,000 kg – effortless handling of heavy steel structures, prefabricated elements, and containers.
- Lift height of 4500 mm – ideal for storing goods on high racking or loading large cargo.
- EURO V diesel engine – high power while meeting emission regulations.
- Dual front pneumatic tyres – improved traction and stability on uneven surfaces.
- Fork side shift and mast tilt adjustment – easier manoeuvring and greater operational precision.
Design and technology

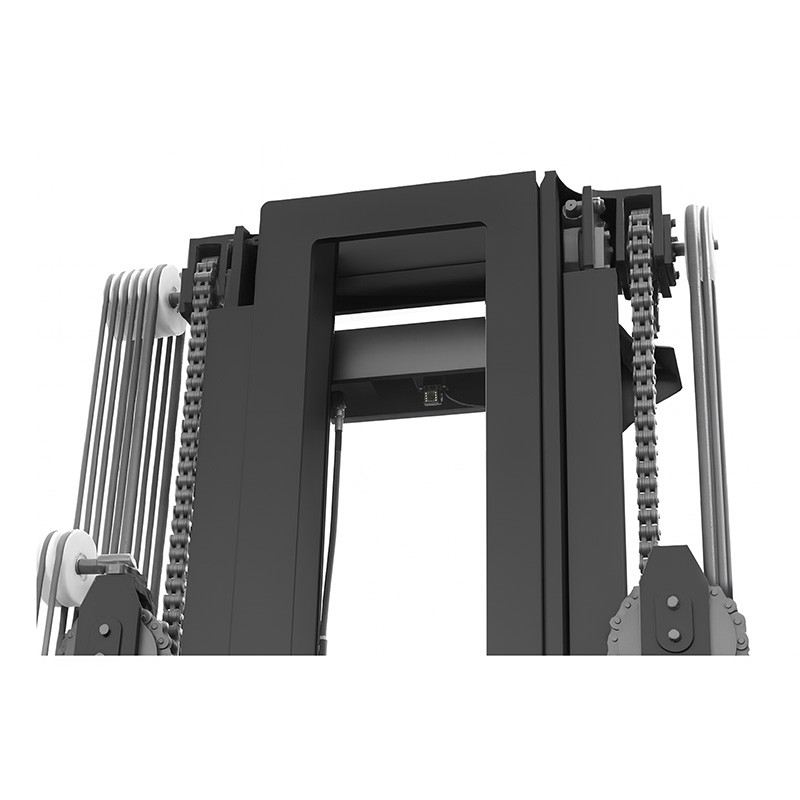

The construction is based on a solid steel chassis adapted for operation in harsh conditions. A reinforced mast and a high-performance hydraulic system ensure smooth movements and load safety even at maximum capacity. Dual front pneumatic tyres increase stability on soft ground while reducing vibrations transmitted to the cab.
Precision and work efficiency
The forklift provides excellent handling precision thanks to the fork side shift system, which allows load positioning without manoeuvring the entire vehicle. In addition, the adjustable mast tilt angle enhances control during transport, which is particularly important when handling irregular or oversized loads.
Applications
The 16t model is used in:
- metallurgical industry, steelworks, and steel processing plants,
- port handling operations and distribution centres,
- construction and prefabrication industry,
- heavy internal and external logistics.
Standard equipment
- Fork side shift
- Adjustment of mast width and tilt angle
- Dual front pneumatic tyres
- Panoramic operator cab with ergonomic controls
- Automatic transmission
Technical parameters
| Load capacity | 16000 kg |
| Lift height of forks | 4500 mm |
| Lowered fork height | 80 mm |
| Fork length | 1800 mm |
| Side shift | Yes |
| Mast tilt | Yes |
| Drive type | Diesel |
| Exhaust emission standard | EURO V |
| Transmission | Automatic |
| Engine power | 170 kW (231.2 HP) |
| Tyre type | Pneumatic |
| Weight | approx. 21,500 kg |
