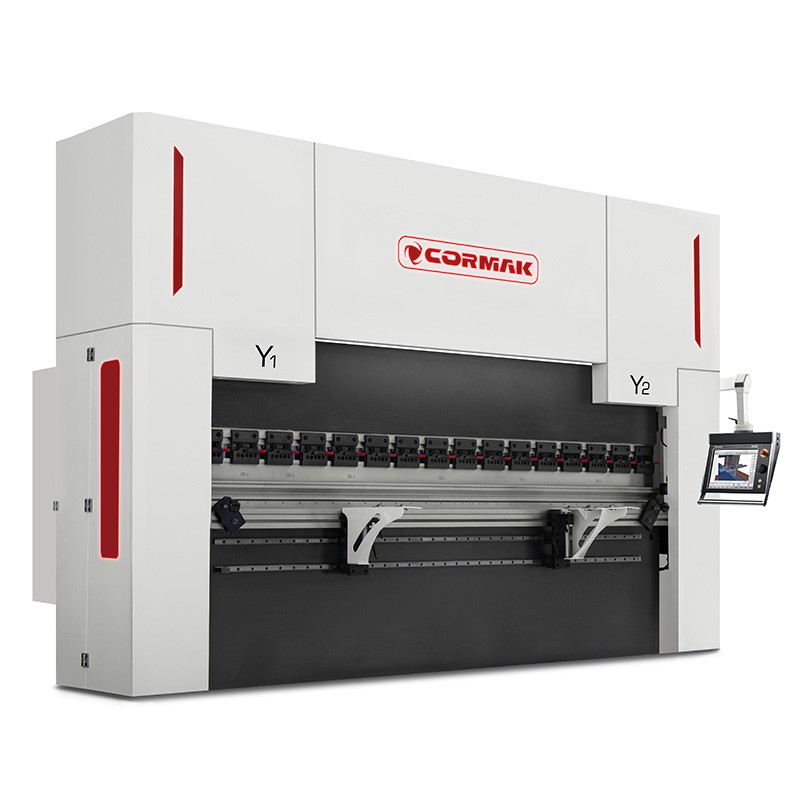

The presented configuration is the most frequently chosen by our customers – a proven and efficient choice for series production.
Main Features:
-
Front supports: 2 pcs on linear guides, ensuring stability during bending operations.
-
Y1 and Y2 axis adjustment: servo drive with encoders
-
Back-gauge axis X adjustment: servo drive with encoders
-
R axis adjustment: servo drive with encoders
-
Automatic deflection compensation
-
Double-sided punch clamping: quick-change AMADA-type system allowing fast tool changes.
Available configurations are adapted to production requirements and the type of processed workpieces – machine specifications are determined individually according to application and technological needs.
Technical Parameters
| Maximum bending thickness (S235) |
up to 12.0 mm |
| Nominal pressure |
3000 kN |
| Maximum bending length |
4000 mm |
| Throat depth |
400 mm |
| Maximum ram stroke |
250 mm |
| Maximum open height |
540 mm |
| Distance between frames |
3200 mm |
| Back-gauge travel |
600 mm |
| Main motor power |
22.0 kW |
| Length |
4100 mm |
| Width |
1900 mm |
| Height |
3000 mm |
| Weight |
16 700 kg |
Automatic adjustment of back-gauge travel (axis X) and R-axis (with manual option*). The R-axis facilitates bending larger radii, e.g. by step-bending system.
Optional servo-motor adjustment of fingers on axes Z1, Z2, R1, R2, X1 and X2.
To achieve a satisfactory step-bending result, certain calculations are required, based on a few key bending parameters:
- Arc length – distance between the ends of the bent sheet’s curve, measured along the inner bend side.
- Number of bends – total individual bends needed to achieve a given radius; the greater the number of bends, the smaller the angle of each bend and the smoother the curve.
- Spacing between bends – distance between successive bends performed during the process.
Although step bending may seem complex, CORMAK machines and software are so advanced that many operations are automatically handled by the system, relieving the operator of manual calculations.

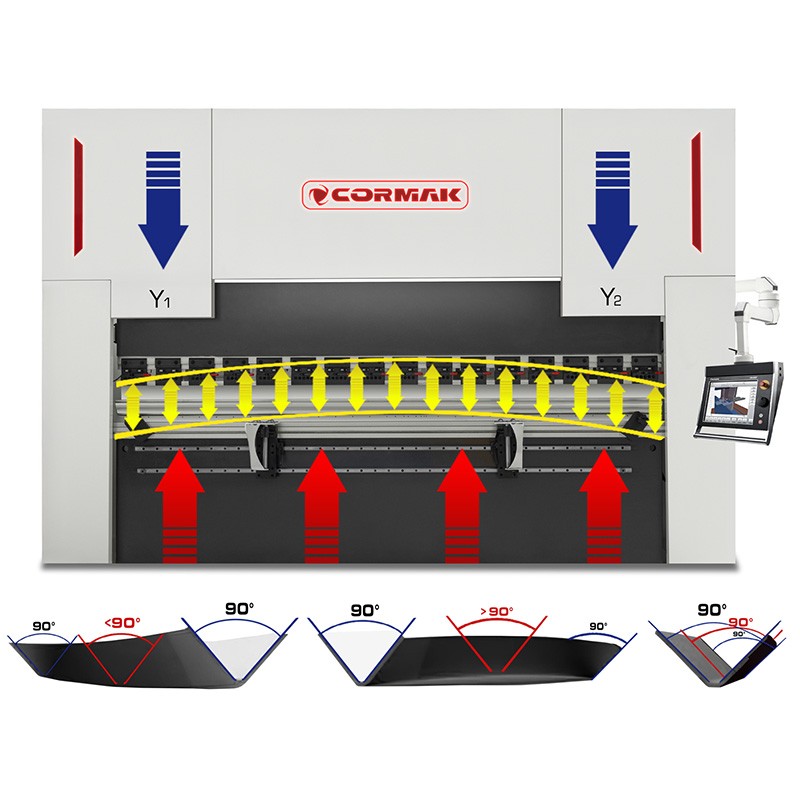

Automatic deflection compensation
Ensures a consistent bending angle across the entire working length (option*)
Manual deflection compensation (option*)
Ensures a consistent bending angle across the entire bending length (option*)
High-quality components:
- Electrical components from Schneider / Delta / Eaton
Control and Functionality:
DELEM DA-58T
- Equipped with a 10-inch touch screen, mounted on a movable arm for free operation across the entire working area of the machine.
- Programmability: allows storage of up to 2000 programs with 30 steps each, providing great flexibility for various production tasks.
- Ergonomic operation: intuitive English-language menu enables quick adaptation for operators.
Optional controllers available: DA-53T+2D, DA-66T and DA-69T, or CYBELEC 12
DA-53T+2D
Display
- 10.1" TFT LCD touchscreen
- Full colour interface
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 1 GB internal memory
- Collision-prevention control logic for all working axes
Functions
- Descriptive and graphical database of punches and dies (30 punches & 60 dies)
- Program library with graphic preview and product cataloguing
- Material database (possibility to add new material types)
- 2D part drawing directly on the controller screen
- Automatic bending program generation from part drawing (2D)
- Real-time 2D visualisation of the bending sequence
- Step-by-step 2D simulation with collision preview
- Warning messages, e.g. tool strength overload
- Manual or automatic mode operation
- Automatic beam stroke and force calculation
- Automatic back-gauge position and bend allowance calculation
- Data backup via USB

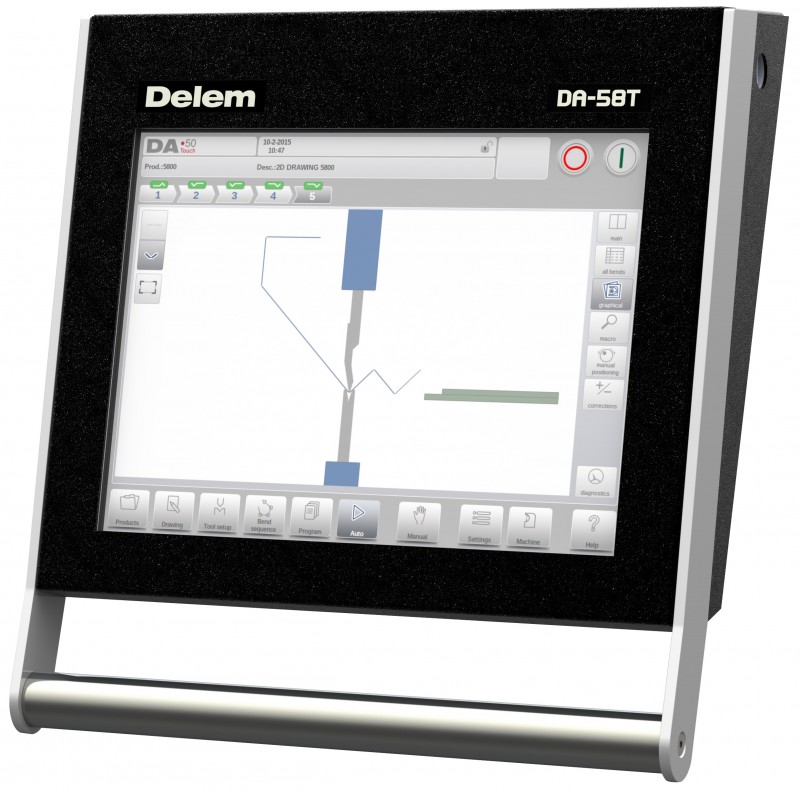

DA-58T
Display
- 15" TFT LCD touchscreen
- Full colour interface
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 4 MB working memory
- Maximum number of programs: 9999 (25 steps per program)
- Step repeat limit: 99
- Collision-prevention logic for all working axes
Functions
- Graphical and descriptive punch and die library (30 punches & 60 dies)
- Program and product database with visualisation and catalogue
- Material database for adding new bending materials
- 2D visual drawing and real-time process simulation
- Collision warning and strength control notifications
- Manual and automatic operating modes
- Automatic calculations for stroke, force, and bend radius
- Automatic back-gauge positioning
- 2D simulation of bending sequence with collision view
- USB port and data backup function

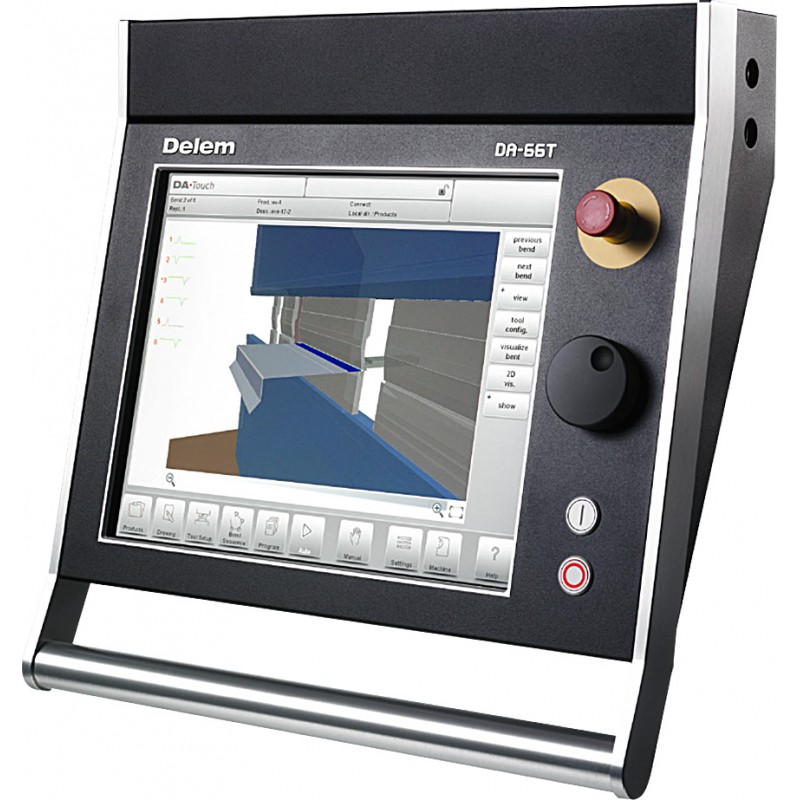

DA-66T
Display
- 17” TFT LCD touchscreen
- Full colour interface
External software
- optional LITE T2D workstation license (creation of bending sequences on a PC)
System
- Stable Windows CE operating system
- 64 MB RAM
- Maximum programs: 1000 (1 GB memory)
- Repeat limit: 99
Functions
- 2D part drawing directly on the controller screen
- Automatic program creation from 2D drawing
- Automatic stroke, force and material-based calculation
- 3D visualisation with step-by-step bending simulation
- Collision warnings and overpressure alerts
- Manual and automatic modes
- Material and tool library
- Work counter and USB backup
DA-69T
Display
- 17” TFT LCD touchscreen
- Full colour interface
External software
- optional LITE T3D workstation license (creation of bending sequences on a PC)
System
- Stable Windows CE operating system
- 64 MB RAM
- Maximum programs: 1000 (1 GB memory)
- Repeat limit: 99
Functions
- DXF file import
- 3D import via IGES & SAT formats from LITE T3D software
- 3D part drawing and program generation directly on screen
- Automatic back-gauge adjustment and stroke calculation
- Step-by-step 3D simulation with full visualisation
CYBELEC 12
Display
- 12” TFT LCD touchscreen
- Full colour interface
System
- Stable Windows CE operating system
- Maximum punches: 100
- Maximum dies: 100
- Maximum programs: 300
- Repeat limit: 24
- Maximum materials: 10
Functions
- User-friendly HMI interface
- 2D profile and 3D visualisation
- Automatic bend sequencing
- High bending accuracy via advanced algorithms
- Tandem operation
- Tool import and barcode reading supported
- Industry 4.0 ready
The machine combines advanced technology with simplicity of operation, making it ideal for both precision manual tasks and high-efficiency serial production. Premium components and advanced safety systems guarantee reliability and operator protection.
Safety
Laser safety system
Standard high-class laser safety system ensures operator protection and doubles the bending speed efficiency.
We never compromise on safety! Top-quality hydraulic connections and safety valves ensure full operator protection and long-term reliability.
Beware of pseudo safety systems such as light gates or curtains that do not comply with CE standards — they expose operators to serious injury risks. As an employer, you are responsible for the safety of your workers!
CE-compliant safety guards
Ergonomics and Additional Features:
- Mobile control panel mounted on a movable arm
- LED lighting – improves comfort and work safety
- Front supports on linear guides
- Follow-up supports (option*)
Servo-driven follow-up supports enable bending of large sheets that lift together with the bending process, maintaining angle precision and preventing deformation.
▶
