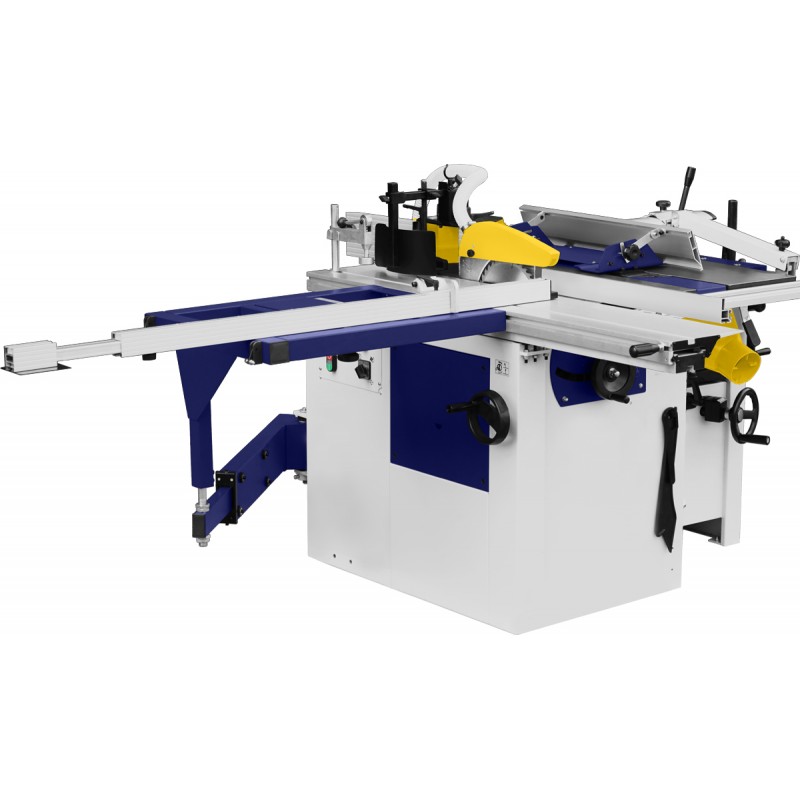

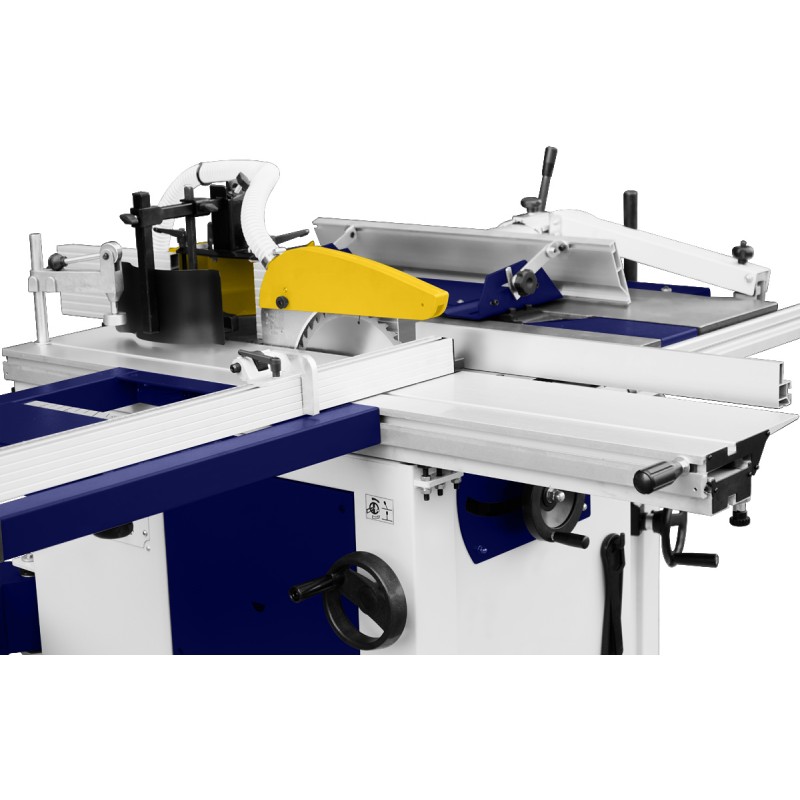

Universal Woodworking Combination Machine CORMAK CMS260 5-in-1

The CORMAK CMS260 multifunctional woodworking machine is an advanced 5-in-1 multi-purpose unit combining the functions of a table saw, planer–thicknesser, spindle moulder and drilling machine. Designed to maximise functionality within a compact footprint, it is an ideal solution for professional joinery workshops, craftsmen and woodworking facilities seeking performance, precision and versatility in one compact unit.

Main advantages of the CORMAK CMS260

• 5 functions in one machine – saw, spindle moulder, drill, planer and thicknesser.
• Three independent motors – high power ensures continuous and efficient operation without compromise.
• Precision cutter block – equipped with three HSS knives, ideal for accurate surface machining.
• Aluminium sliding guide – triangular guidance increases cutting accuracy and repeatability.
• Tilt adjustment of the saw blade 0–45° – easy to set using a control knob.
• Compact design – perfect for workshops with limited working space.
• CE compliant – includes full user documentation and CE declaration.

Design and technology

The CMS260 model is designed as a combination woodworking machine where each module operates independently, improving efficiency and eliminating the need for reconfiguration. The structure is based on a durable steel frame providing stability even during heavy use. Each function (table saw, planer–thicknesser, spindle moulder etc.) is optimised for safety and ergonomics. Foldable tables, guards and an efficient dust extraction system ensure operator comfort and safety.

Precision and performance

Equipped with three separate motors (2.2 kW for the saw and planer, 1.5 kW for the spindle moulder), it allows intensive operation without loss of torque. The spindle moulder shaft offers four speed ranges (1,400 / 4,000 / 6,000 / 9,000 rpm), enabling optimal adjustment to the material type. The cutter block speed of 5,500 rpm and the saw blade speed of 4,000 rpm ensure clean and efficient cutting of solid wood and wood-based materials.

Applications

The multifunctional CORMAK CMS260 machine is perfect wherever space efficiency and versatility are key — from joinery workshops and small manufacturing plants to technical training centres and repair workshops. Ideal for single-item production, repairs and individual projects requiring flexibility within one compact unit.

Standard equipment

• 254 mm saw blade
• Three-knife HSS cutter block
• Aluminium sliding guide
• Foldable planer tables
• Foldable dust extraction hood Ø100 mm

Optional accessories

• Drill chuck (available separately)

Technical data

Choose performance, precision and versatility – the CORMAK CMS260 multifunctional woodworking machine gives you a technological advantage in every carpentry project!
