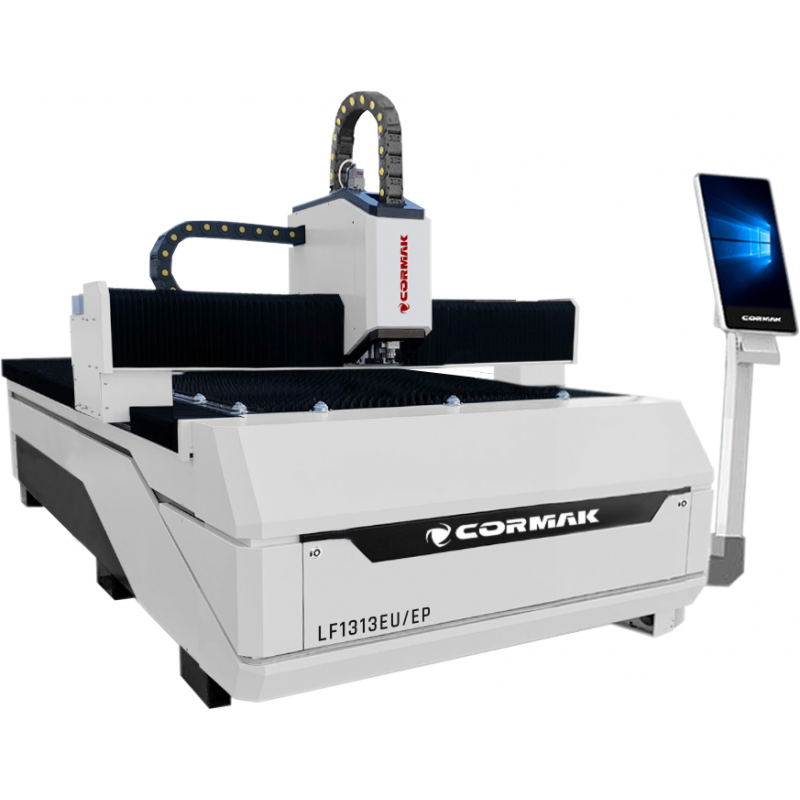

Fibre Laser Cutter CORMAK FIBER LF1313EP4/EU/EP

Fibre laser cutters are modern machines distinguished by numerous advantages. They are not only an excellent and far more cost-effective alternative to CO₂ technology but also offer many benefits that enable up to 70% production growth and improved quality. FIBER technology allows cutting of sheets and other materials of various thicknesses — from very thin to very thick. The wavelength of the FIBER laser is 1.064 µm, providing intensity 100 times higher than that of CO₂ systems of comparable power.

MAIN ADVANTAGES OF THE LASER

• Long service life. Collimating and focusing lenses feature a water-cooled heat sink, reducing the cutting head temperature and extending its lifespan.
• Wider adjustment range. Adjustment range –10 mm ~ +10 mm, precision 0.01 mm, suitable for sheet thicknesses 0 ~ 20 mm.
• Automatic focus adjustment (above 1500 W) – Autofocus software automatically regulates the focusing lens when cutting sheets of various thicknesses. The autofocus speed is ten times faster than manual adjustment.








Design screen

The vertical display screen features fast response time, high contrast, wide viewing angle, low power consumption, and high resolution. It also offers excellent brightness, reduced reflection, and increased durability.

Bed welded from rectangular profiles

The bed structure has an internal honeycomb design made of multiple welded rectangular tubes. Reinforcements inside increase strength and improve the rigidity and stability of the guide rails, effectively preventing deformation. High strength, stability and tensile resistance ensure up to 20 years of use without distortion.

Technical parameters

Cutting parameters

Actual parameters may vary depending on technical conditions and materials used.

1. RAYTOOLS cutting head
2. Linear guides: HIWIN
3. Gears and racks: YYC
4. Servo motors: DELTA
5. Gear reducer: MOTOREDUCER
6. Pneumatic components: SMC
7. Electrical components such as contactors, relays, sensors: Schneider, OMRON, IDEM
8. CypCut software
9. Water chiller: S&A
10. Voltage stabiliser: TNS

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Training and Machine Commissioning

It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
