We offer a pallet stacker with electric lifting that is capable of handling heavy loads weighing up to 1,500 kg. With a lifting height of 1,600 mm, this pallet stacker enables efficient use of space in warehouses and production halls. It is a reliable tool for precise handling of heavy items at height. The use of advanced electric technology and integrated safety features makes this pallet stacker an ideal solution for warehouse and manufacturing environments.

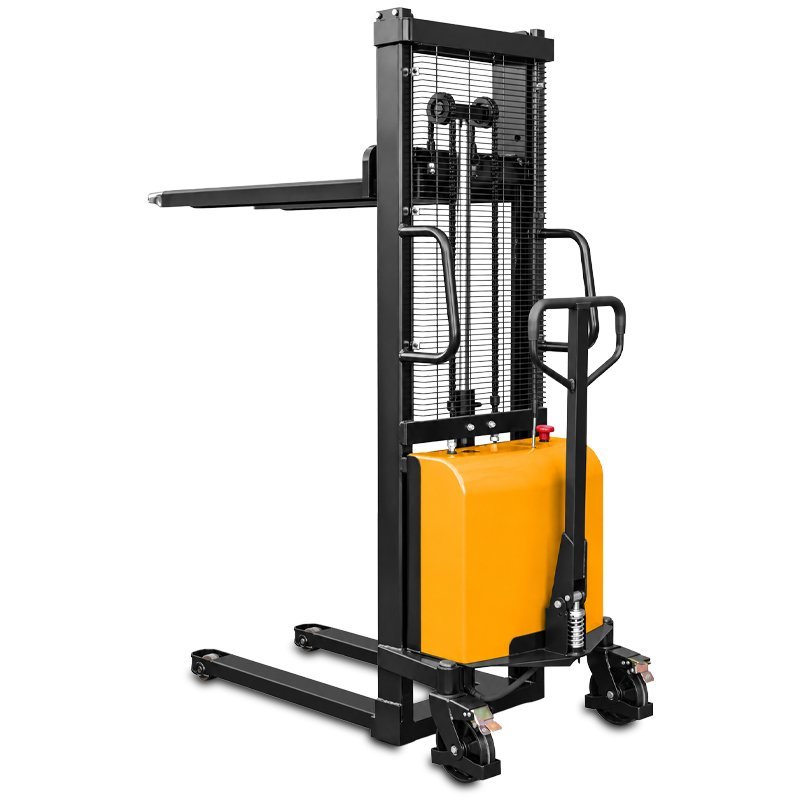

B1516 is an advanced semi-electric pallet stacker that combines robust construction, a high load capacity of 1,500 kg and a precise electric lifting system with a lifting height of 1,600 mm. Designed for demanding industrial, warehouse and distribution environments, this model provides full load control while reducing operator effort and improving safety and efficiency in logistics operations.

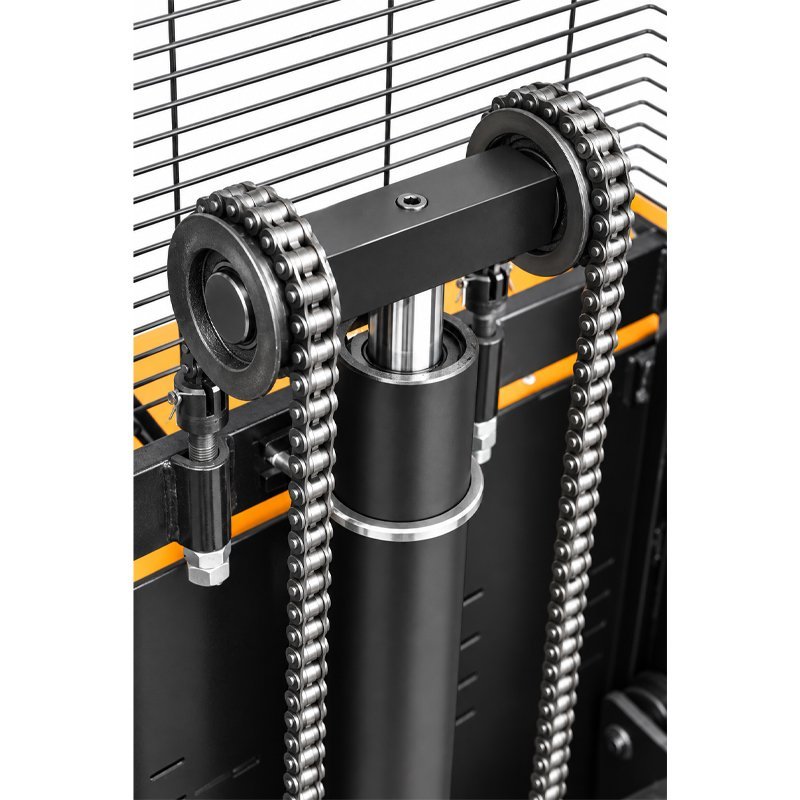

The B1516 stacker has been engineered with a reinforced steel frame to ensure high rigidity and stability when operating at maximum load capacity. The lifting system is based on a reliable electric actuator powered by a 12V 135Ah AGM battery, providing long operating time and low running costs.
The lifting structure allows easy access to service components, simplifying maintenance and increasing system durability. Thanks to its compact dimensions – overall width of 800 mm – the B1516 performs exceptionally well in confined working areas, while manual travel control allows precise manoeuvring.
Lifting and lowering speeds of up to 120 mm/s ensure fast and smooth work cycles, resulting in time savings and improved productivity. The operator retains full control over fork movement without physical strain, enhancing user comfort and reducing the risk of overload and injury.

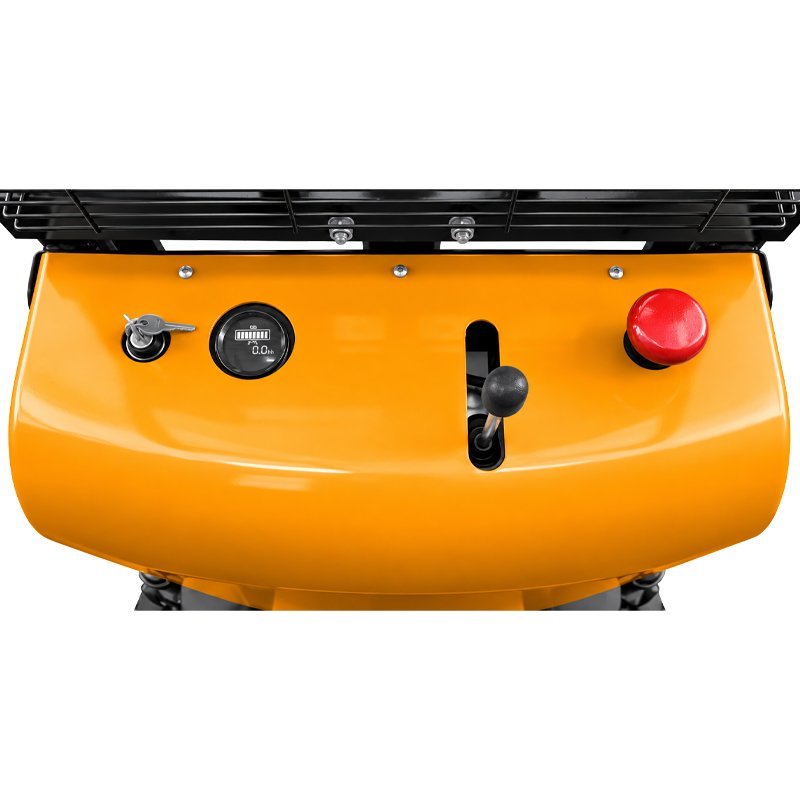

The battery charge level indicator allows continuous monitoring of power status, helping to prevent unexpected downtime. Ergonomically positioned controls and a low turning radius of 1,430 mm further facilitate operation in dynamic warehouse environments.
The B1516 model is used wherever there is a need for fast, safe and precise handling and storage of heavier loads:
| MAX LIFTING HEIGHT | 1,600 mm |
| LOAD CAPACITY | 1,500 kg |
| LOAD CENTRE | 500 mm |
| FORK LENGTH | 1,150 mm |
| OUTER FORK WIDTH | 550 mm |
| HEIGHT WITH FORKS LOWERED | 2,085 mm |
| HEIGHT OF RAISED LIFTING STRUCTURE | 2,085 mm |
| LOWERED FORK HEIGHT | 90 mm |
| OVERALL WIDTH | 800 mm |
| OVERALL LENGTH | 1,735 mm |
| GROUND CLEARANCE | 26 mm |
| TURNING RADIUS | 1,430 mm |
| LIFTING SPEED WITH LOAD / WITHOUT LOAD | 100/120 mm/s |
| LOWERING SPEED WITH LOAD / WITHOUT LOAD | 120/100 mm/s |
| BATTERY VOLTAGE / CAPACITY | 12V 135Ah |
| WHEEL MATERIAL | polyurethane |
| WEIGHT | 328 kg |
If you are looking for a robust, efficient and ergonomic pallet stacker with a higher load capacity, the B1516 is the optimal solution for your business. Thanks to its well-engineered design and maintenance-free operation, this machine delivers long-term performance without downtime. Order online or contact a technical consultant to discover the full capabilities of the B1516.
