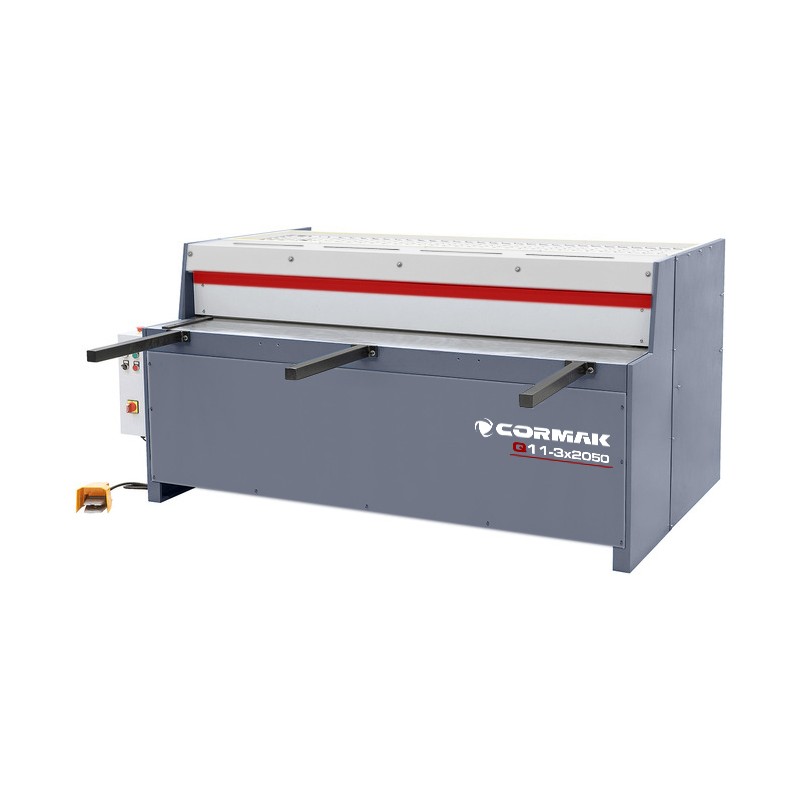

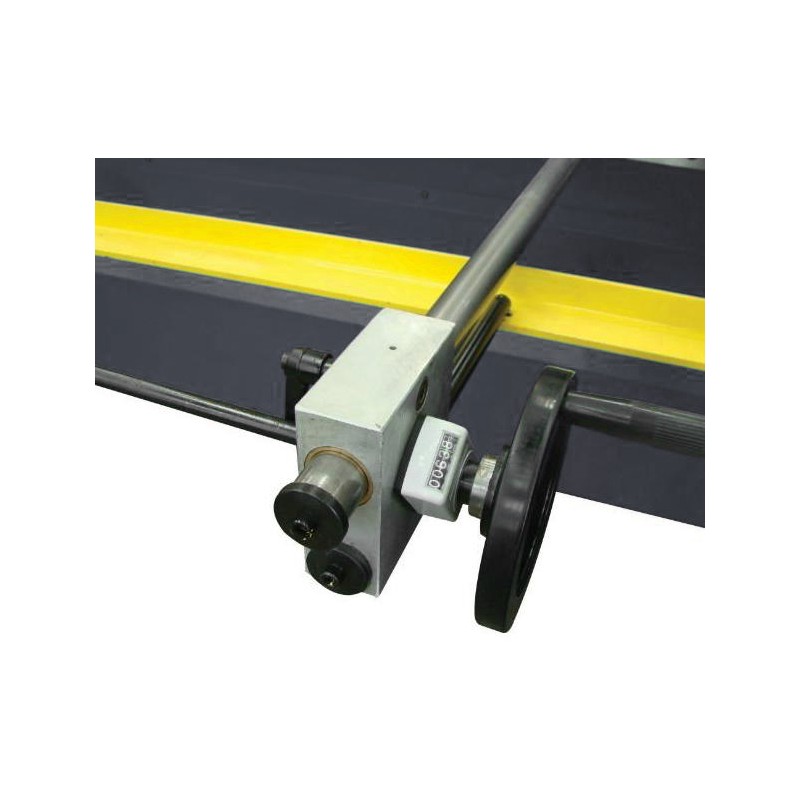

Guillotine shears Q11-3x2050 are CE certified, confirming compliance with European safety standards. Technical documentation supports machine operation and maintenance, while rear length stops with a reach of 630 mm and a scale enable precise adjustment of cutting parameters.

An important component is the hold-down beam, which also serves as a front working-area guard. Mechanical material clamping guarantees exceptional cutting accuracy, and an additional front safety guard eliminates the risk of contact with the blades during operation. The guillotine shears are equipped with a functional and reliable drive mechanism for the upper cutting beam, and simple adjustment of the upper and lower blade segments relative to each other makes it easy to adapt the machine to specific requirements and materials.

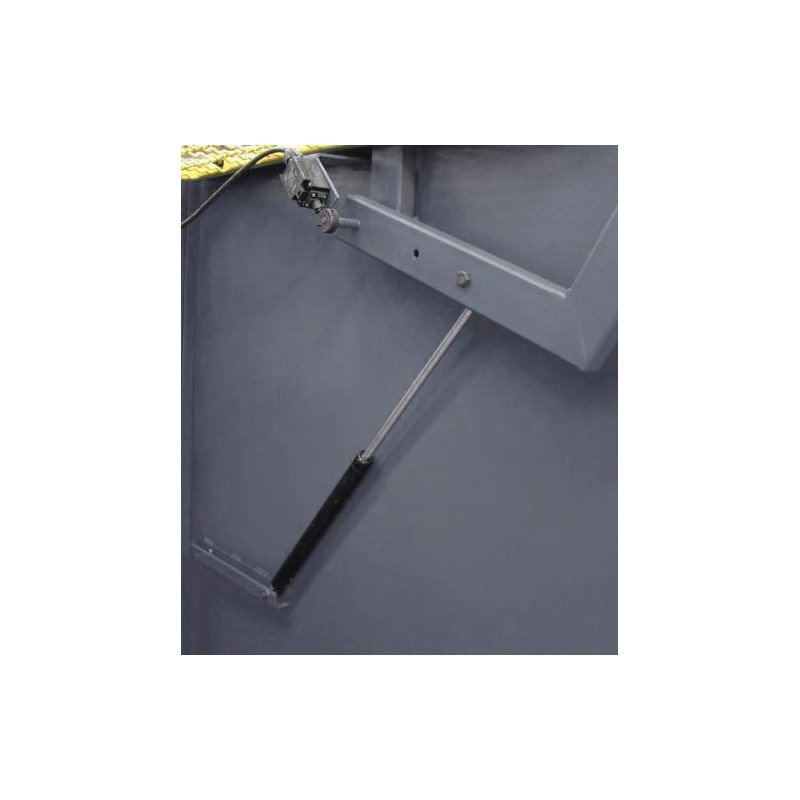

Electrically driven guillotine shears controlled by a foot pedal
Blade made of high-carbon chromium steel
Table extension up to 600 mm

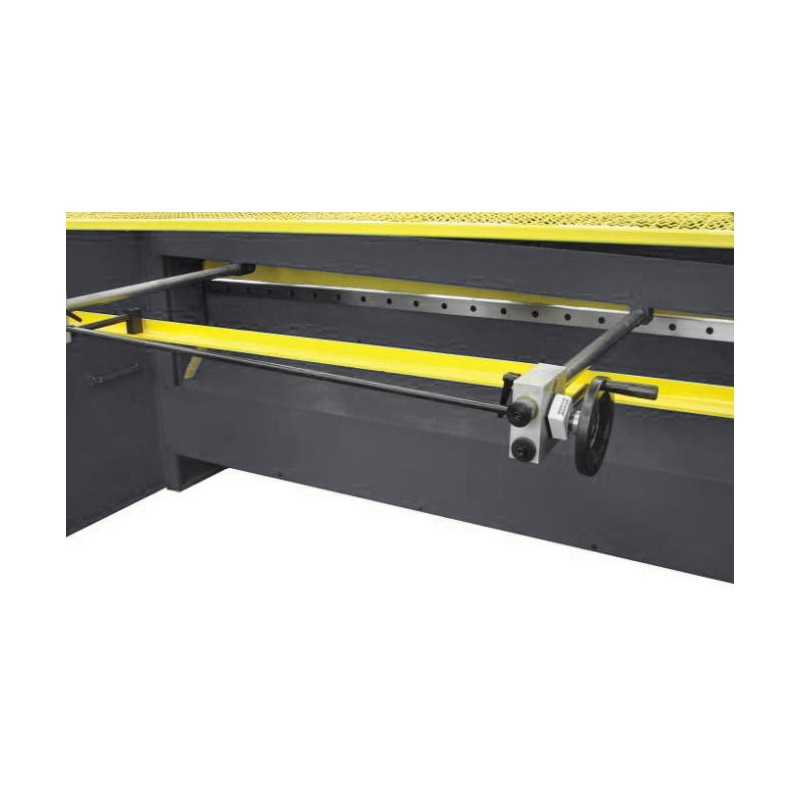

Manual backgauge return with stop (600 mm) as standard
Rear safety guard installed at the back of the machine
Drive based on a double eccentric mechanism
Handle coated with a rubber grip
30 cuts per minute
Cut counter
Ability to cut sheet metal up to 3 mm thick
